(3) Reinstall the propeller shaft and shaft cover.
IMPORTANT
Put grease into the rubber boots on both
sides.
Replace the split pin (B) with a new one.
There are 6 steel balls (C) on each side.
Be sure to install spacer (E) on rear and front
side. If not, cover may be broken in a short
time.

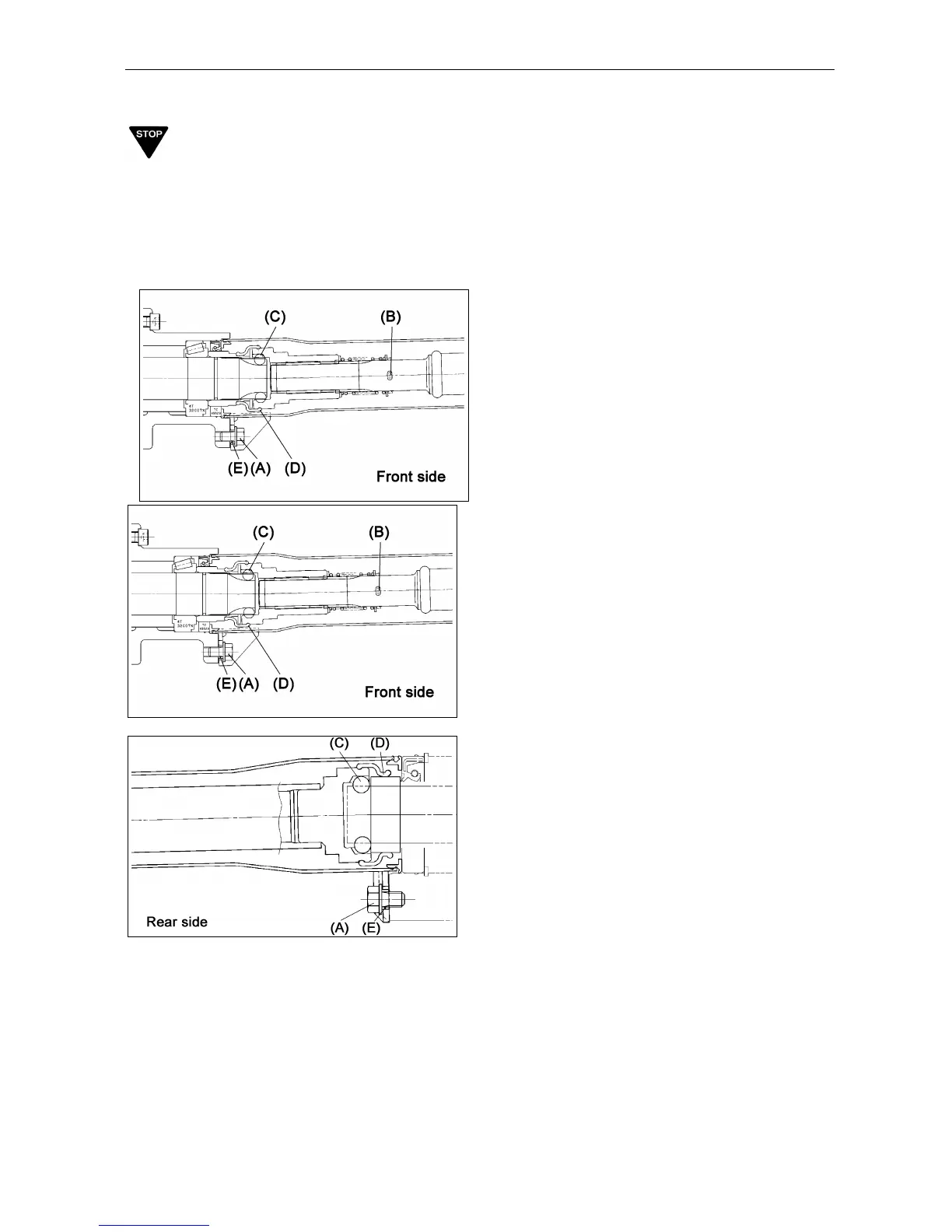

(A) Mounting bolt
(B) Split pin
(C) Steel balls
(D) Rubber boots
(E) Spacer
(4) Connect the pipe to the power steering
cylinder.
(5) Supply oil to the front axle.
