YASKAWA MH180 - 11.4 U Arm Unit

Parts lists
11 - 102
11.4 U arm unit

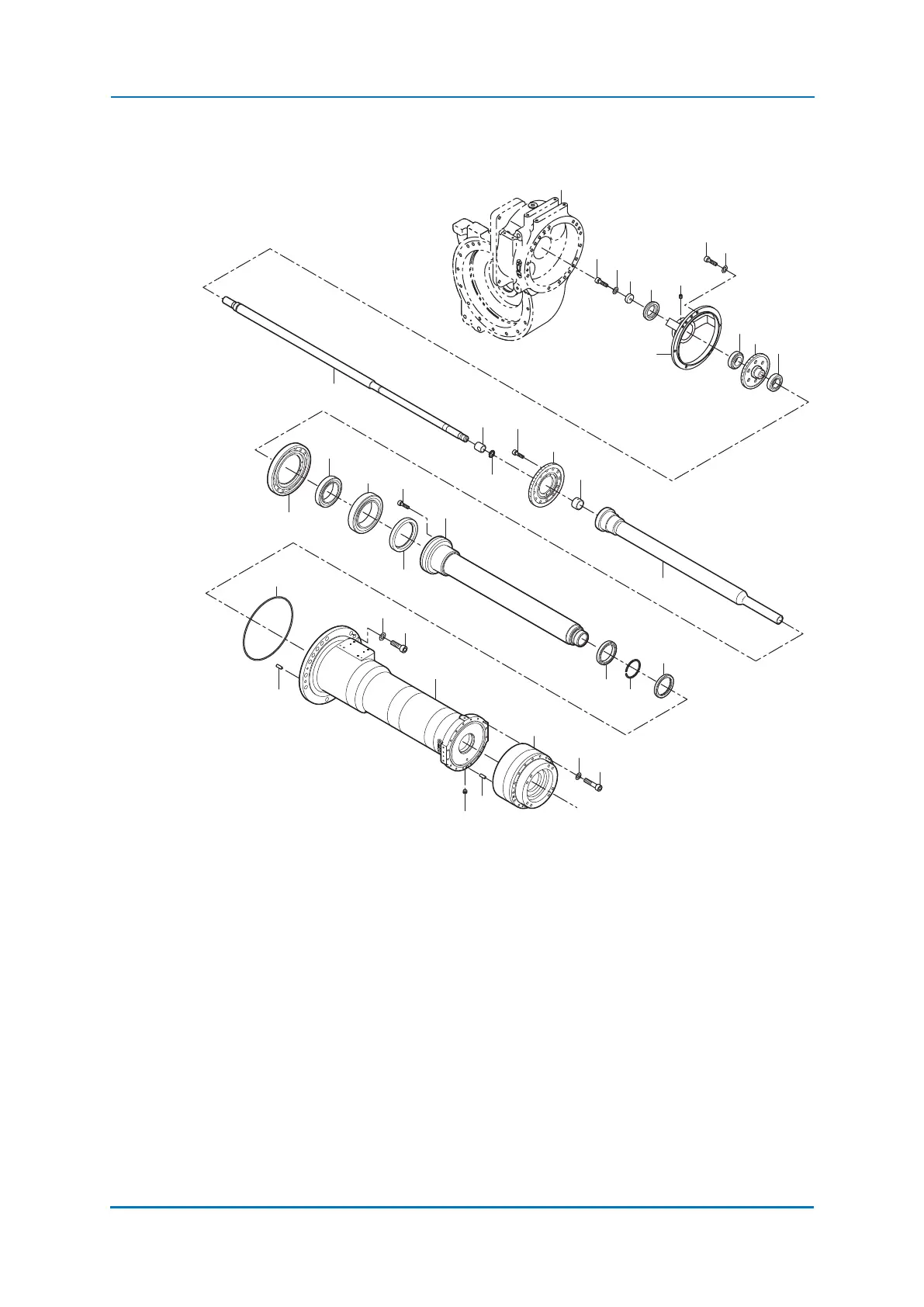

Fig. 11-4: U-arm unit
No. DWG no. Designation Piece
4001 HW1100593-1 U-arm 1
4002 HW0401508-1 Washer 1
4003 6810DDU Bearing 1
4004 WR50 Circlip 1
4005 AC2847F3*NOK* Oil seal 1
4006 NK25/20R Bearing 1
4007 WR20 Terminal 1
4008 LRT202526 Bearing 1
4009 HW0386260-A Gear 1
4010 HR32017XJ Bearing 1
4011 AC3842-F1-(FKM) Oil seal 1
3012
4027
4027
4035
4017
4010
4006
4008
4003
4005
4009
4018
4014
4020
4034
4033
4001
4002
4019
4007
4011
4016
4026
4004
4012
4013
4036
4028
4029
4024
4025
4021
4022
4030
4030
4031
4032
4023
