MS80W Manipulator
2 Transport
2.1 Transport Method
2.1.1 Using a Crane
As a rule, the manipulator should be lifted by a crane with a four-leg bridle
sling using the shipping bolts and brackets when removing it from the
package and moving it. Be sure that the manipulator is fixed with the
shipping bolts and brackets before transport, and lift it in the posture as
shown in Fig.2-1 Transport Using a Crane.

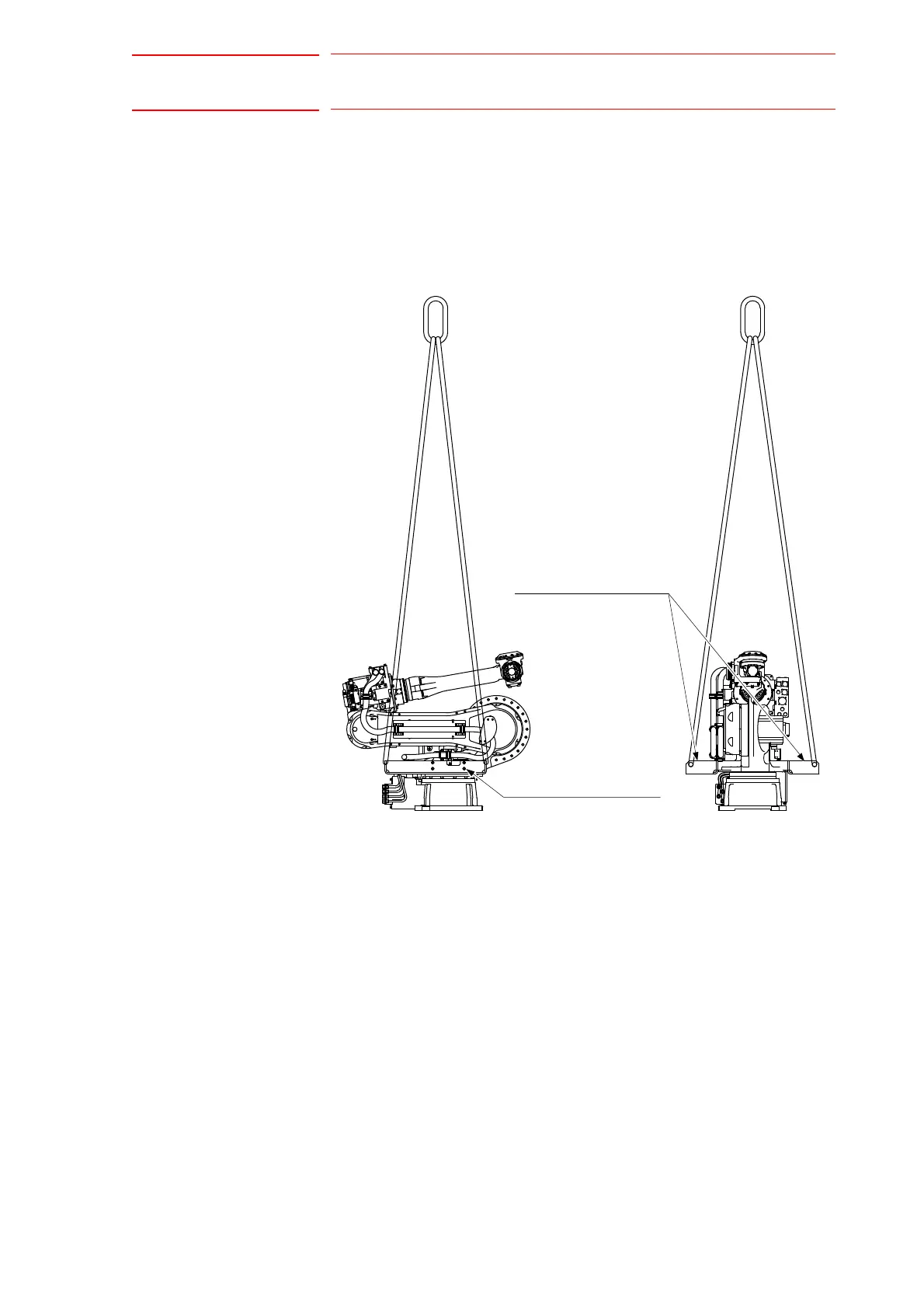

Fig. 2-1: Transport Using a Crane
Shipping bolts and bracket
(Fixed to the manipulator
before shipment.)
Hexagon socket head cap
screw M12 (8 screws)
