MS80W Manipulator
2.1.2 Using a Forklift
When using a forklift, the manipulator should be fixed on a pallet with
shipping bolts and brackets as shown in
Fig.2-2 Transport Using a Forklift.
Insert forks under the pallet and lift it. The pallet must be strong enough to
support the manipulator. Transport the manipulator slowly with due
caution in order to avoid overturning or slippage.

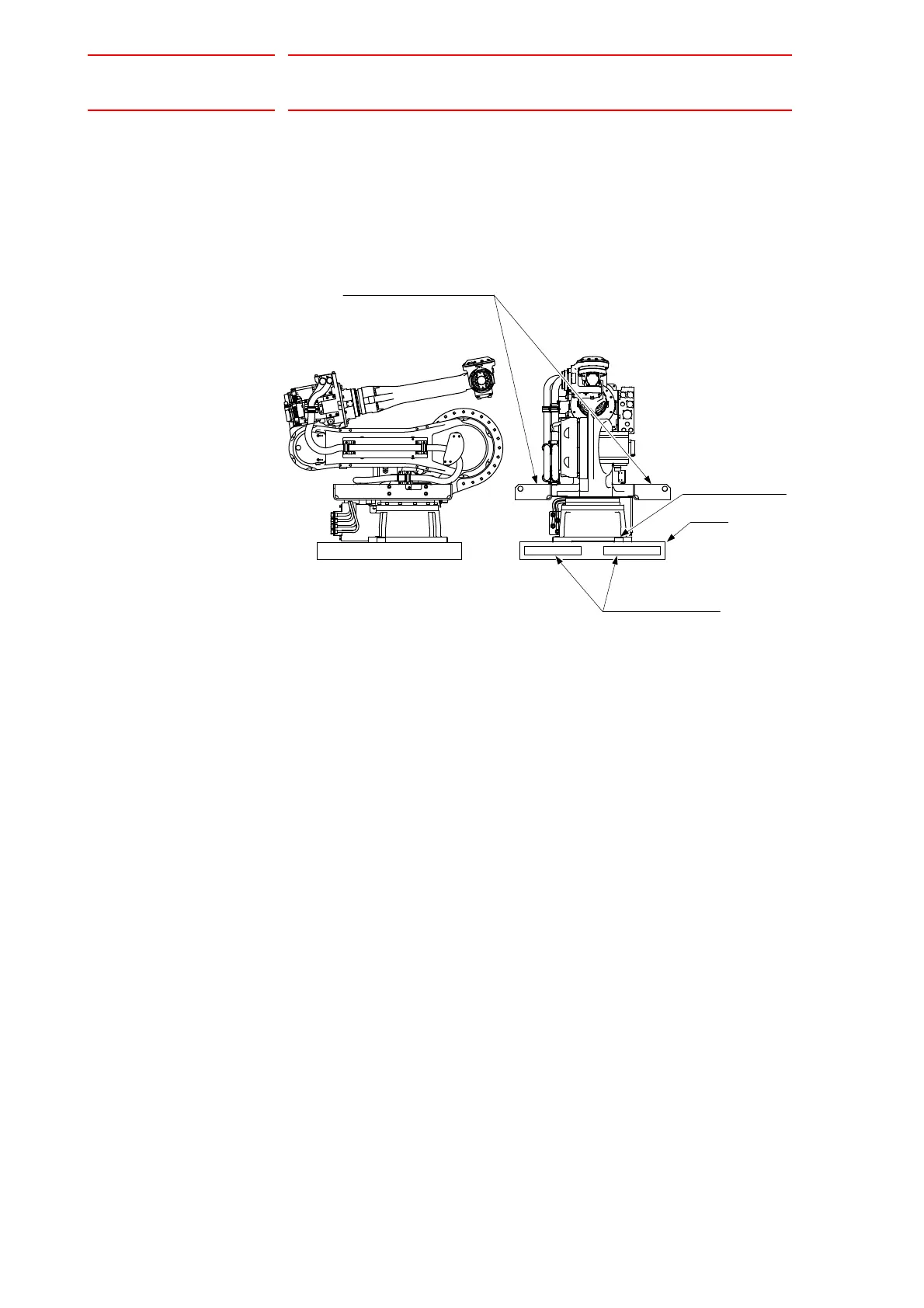

Fig. 2-2: Transport Using a Forklift
Shipping bolts and bracket
(Fixed to the manipulator
before shipment.)
Bolt M20 (8 bolts)
Pallet
Forklift fork entries
