MS80W Manipulator
9.3.5 Grease Replenishment/Exchange for B- and T-Axis Speed Reducers
and Gears

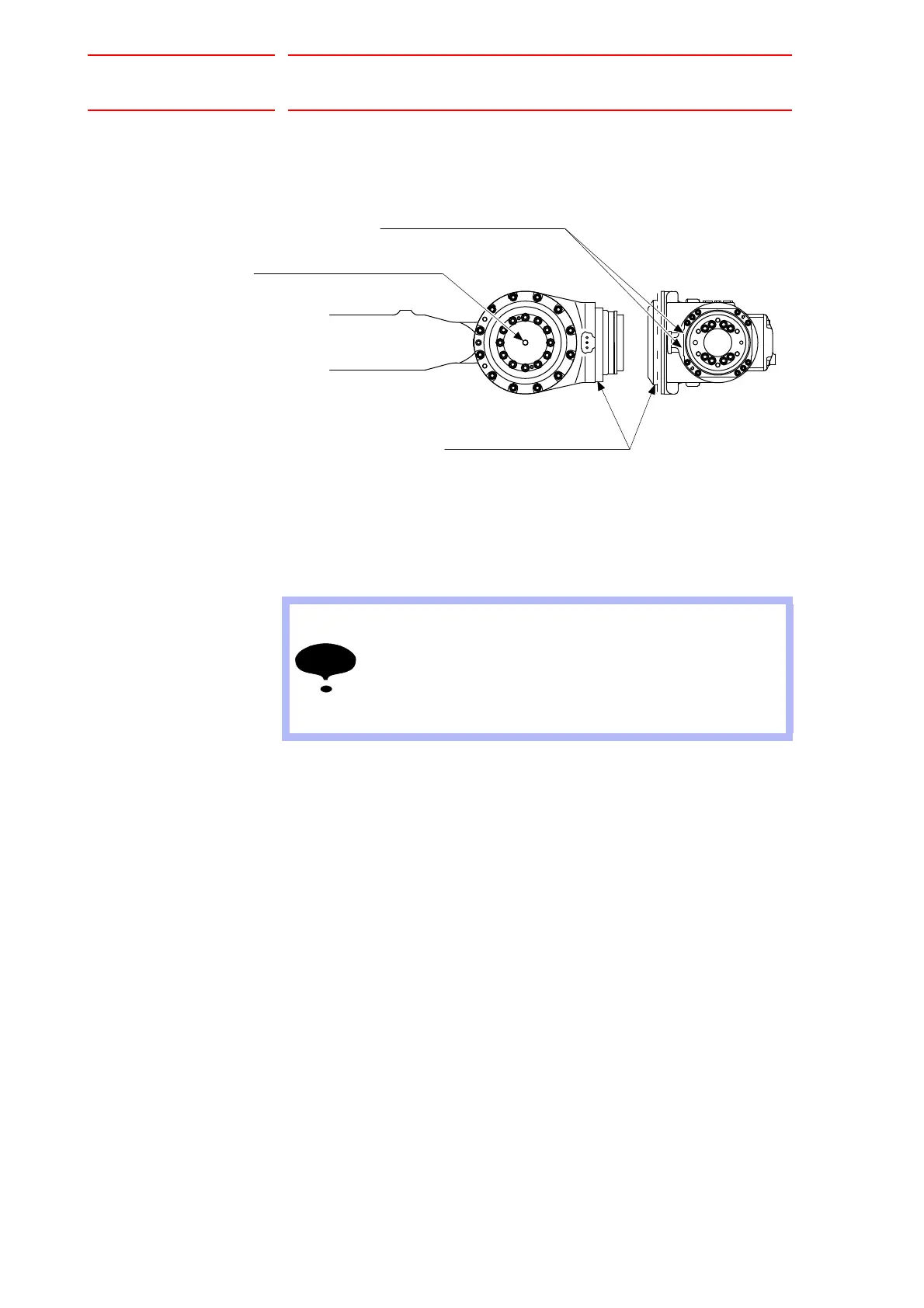

Fig. 9-8: B- and T-Axis Speed Reducers and Gears
9.3.5.1 Grease Replenishment (Refer to Fig.9-8 B- and T-Axis Speed
Reducers and Gears.)
1. Remove the hexagon socket head plug PT1/8 from the grease
exhaust port.
2. Remove the hexagon socket head plug PT1/8 from the grease inlet
and install the grease zerk PT1/8. (The grease zerk is delivered with
the manipulator.)
3. Inject grease through the grease inlet using a grease gun.
– Grease type: Molywhite RE.No.00
– Amount of grease: 300 cc
(600 cc for 1st supply)
– Air supply pressure of grease pump: 0.3 MPa or less
– Grease injection rate: 8 g/s or less
4. Move the B-axis for a few minutes to discharge excess grease.
5. Wipe the discharged grease with a cloth and reinstall the plug PT1/8
on the grease exhaust port. Apply Three Bond 1206C to the thread
part of the set screw, and tighten the set screw with a tightening torque
of 4.9 N
•m (0.5 kgf•m).
6. Remove the grease zerk from the grease inlet and reinstall the plug
PT1/8. Apply Three Bond 1206C to the thread part of the plug, and
tighten the plug with a tightening torque of 4.9 N
•m (0.5 kgf•m).
(Hexagon socket head plug PT1/8)
Grease exhaust port
(Hexagon socket head plug PT1/8)
Grease inlet
T-axis speed reducer and gear
NOTE
• If grease is injected with the set screw on, the grease will
leak inside the motor and may cause a damage. Make
sure to remove the plug before the grease injection.
• Do not install a joint, a hose, etc. to the grease exhaust
port. Failure to observe this instruction may result in
damage to the motor due to coming off of an oil seal.
