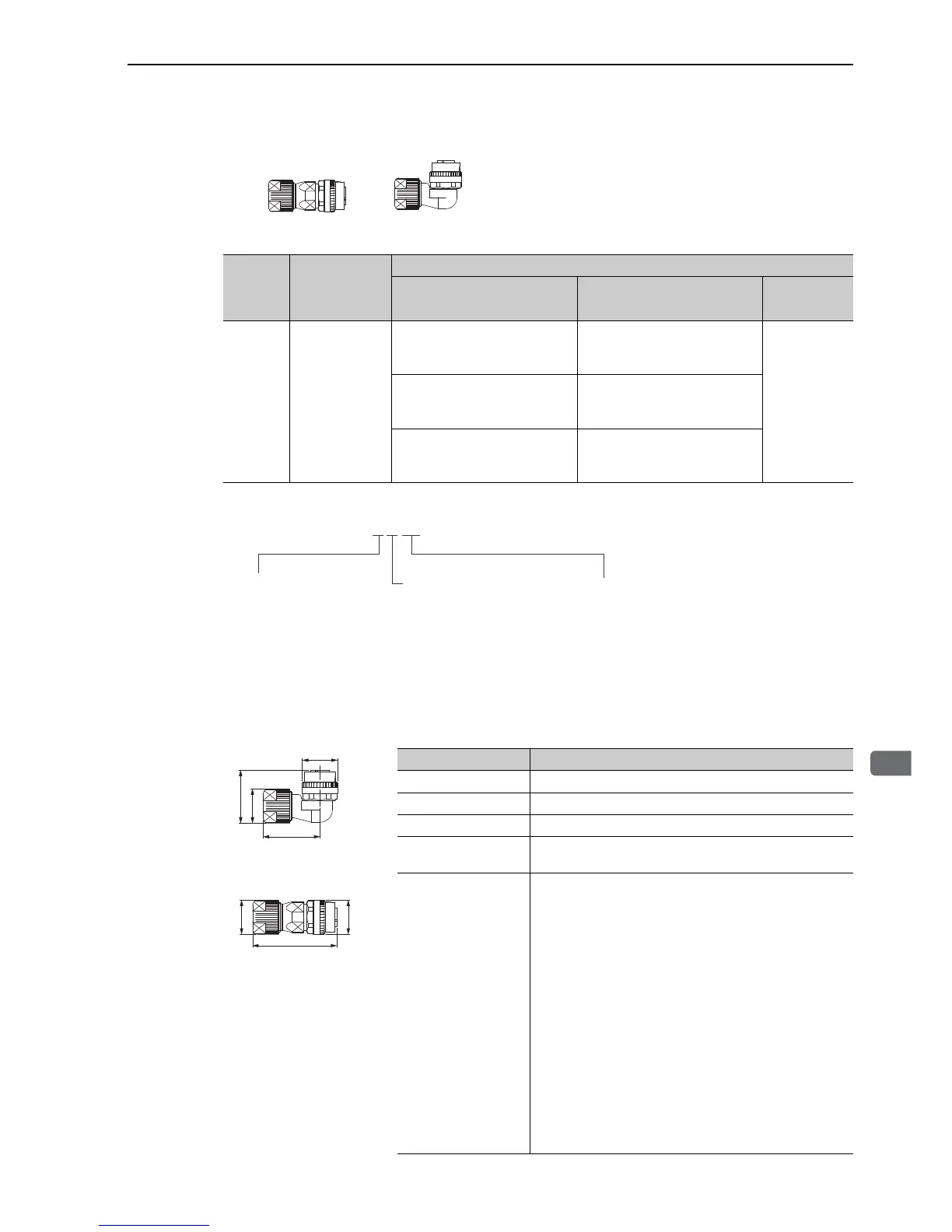

•Cable-end connectors for brake power supply
Note: For the brake power cable, the cable-end connectors are available from Yaskawa Control Co., Ltd. Use the following
order number when ordering.
∗1. The standard kit includes medium size connectors.
∗2. Use the following crimping tool made by DDK Ltd.: 357J-50448T
For details, contact DDK.
Straight Plug L-shaped Plug
Capacity
kW
Servomotor’s
Receptacle for
Brake Power
Supply
Cable-end Connectors for Brake Power Supply (Not included)
Straight Plug L-shaped Plug Manufacturer
0.85
to
7.5
CM10-R2P-D
CM10-SP2S-S-D
Applicable Cable:
4.0 mm dia. to 6.0 mm dia.
CM10-AP2S-S-D
Applicable Cable:
4.0 mm dia. to 6.0 mm dia.
DDK Ltd.
CM10-SP2S-M-D
Applicable Cable:
6.0 mm dia. to 9.0 mm dia.
CM10-AP2S-M-D
Applicable Cable:
6.0 mm dia. to 9.0 mm dia.
CM10-SP2S-L-D
Applicable Cable:
9.0 mm dia. to 11.6 mm dia.
CM10-AP2S-L-D
Applicable Cable:
9.0 mm dia. to 11.6 mm dia.
•L-shaped Plug
•Straight Plug
Items Specifications
Connector Model CM10-P2S--D (Cables are not included.)
Protective Structure IP67
Manufacturer DDK Ltd.
Instruction Manuals
L-shaped plug (CM10-AP2S--D): TC-573,
Straight plug (CM10-SP2S--D): TC-583
Electrical Contact
Order No.
Electrical contact (100 pcs in one bag)
•Crimped type: CM10-#22SC(C3)-100,
Wire size: AWG16 to 20,
Outer diameter of sheath: 1.87 mm to 2.45 mm,
Crimping tool: 357J-50448T
•Soldered type: CM10-#22SC (S2)-100,
Wire size: AWG16 max.
Reel contact (4000 pcs on one reel)
•Crimped type: CM10-#22SC(C3)-4000,
Wire size: AWG 16 to 20,
Outer diameter of sheath: 1.87 mm to 2.45 mm,
Semi-automatic crimping tool:
AP-A50541T (product name for one set),
AP-A50541T-1 (product name for applicator-stripper
and crimper)
Note: The product name of the semi-automatic tool refers
to the product name of the press and applicator as a
set.
To Next Page
