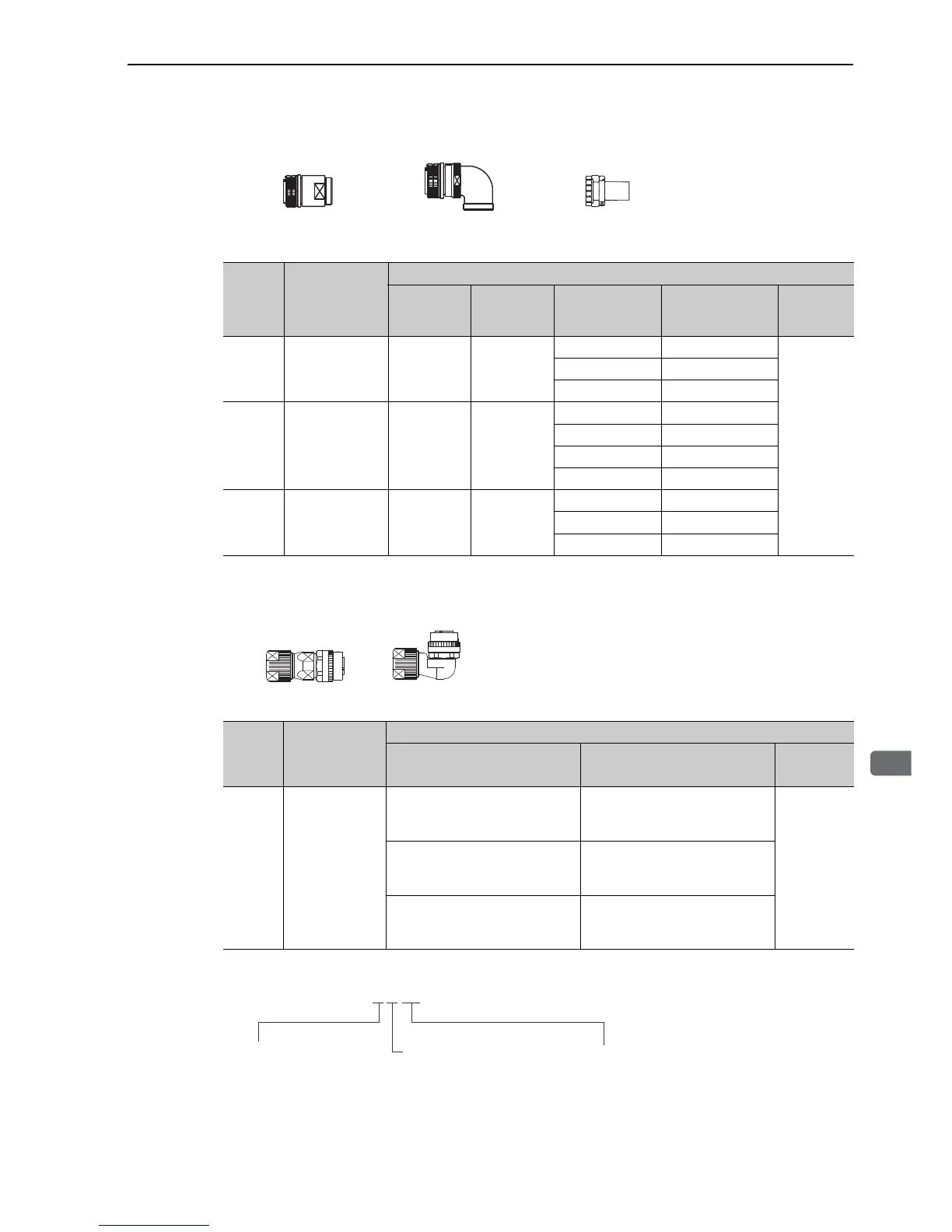

•Cable-end connectors to servomotors
•Cable-end connectors for brake power supply
Note: For the brake power cable, the cable-end connectors are available from Yaskawa Control Co., Ltd. Use the following
order number when ordering.
∗1. The standard kit includes medium size connectors.
∗2. Use the following crimping tool made by DDK Ltd.: 357J-50448T
For details, contact DDK.
Waterproof Straight Plug Waterproof L-shaped
Plug
Waterproof Cable Clamp
Capacity
kW
Servomotor’s
Receptacle for
Main Circuit
Cable-end Connectors to Servomotors (Not included)
Waterproof
Straight
Plug
Waterproof
L-shaped
Plug
Waterproof
Cable Clamp
Applicable Cable
Diameter (mm)
Manufacturer
0.85
1.3
1.8
CE05-2A18-
10PD-D
CE05-6A18-
10SD-D-BSS
CE05-8A18-
10SD-D-BAS
CE3057-10A-1-D 10.5 to 14.1
DDK Ltd.
CE3057-10A-2-D 8.5 to 11.0
CE3057-10A-3-D 6.5 to 8.7
2.9
4.4
CE05-2A22-
22PD-D
CE05-6A22-
22SD-D-BSS
CE05-8A22-
22SD-D-BAS
CE3057-12A-1-D 12.5 to 16.0
CE3057-12A-2-D 9.5 to 13.0
CE3057-12A-3-D 6.8 to 10.0
CE3057-12A-7-D 14.5 to 17.0
5.5
7.5
CE05-2A32-
17PD-D
CE05-6A32-
17SD-D-BSS
CE05-8A32-
17SD-D-BAS
CE3057-20A-1-D 22 to 23.8
CE3057-20A-2-D 24 to 26.6
CE3057-20A-3-D 22 to 22.5
Straight Plug L-shaped Plug
Capacity
kW
Servomotor’s
Receptacle for
Brake Power
Supply
Cable-end Connectors for Braker Power Supply (Not included)
Straight Plug L-shaped Plug
Manufacturer
0.85
to
7.5
CM10-R2P-D
CM10-SP2S-S-D
Applicable Cable:
4.0 mm dia. to 6.0 mm dia.
CM10-AP2S-S-D
Applicable Cable:
4.0 mm dia. to 6.0 mm dia.
DDK Ltd.
CM10-SP2S-M-D
Applicable Cable:
6.0 mm dia. to 9.0 mm dia.
CM10-AP2S-M-D
Applicable Cable:
6.0 mm dia. to 9.0 mm dia.
CM10-SP2S-L-D
Applicable Cable:
9.0 mm dia. to 11.6 mm dia.
CM10-AP2S-L-D
Applicable Cable:
9.0 mm dia. to 11.6 mm dia.
