5 Peripheral Devices

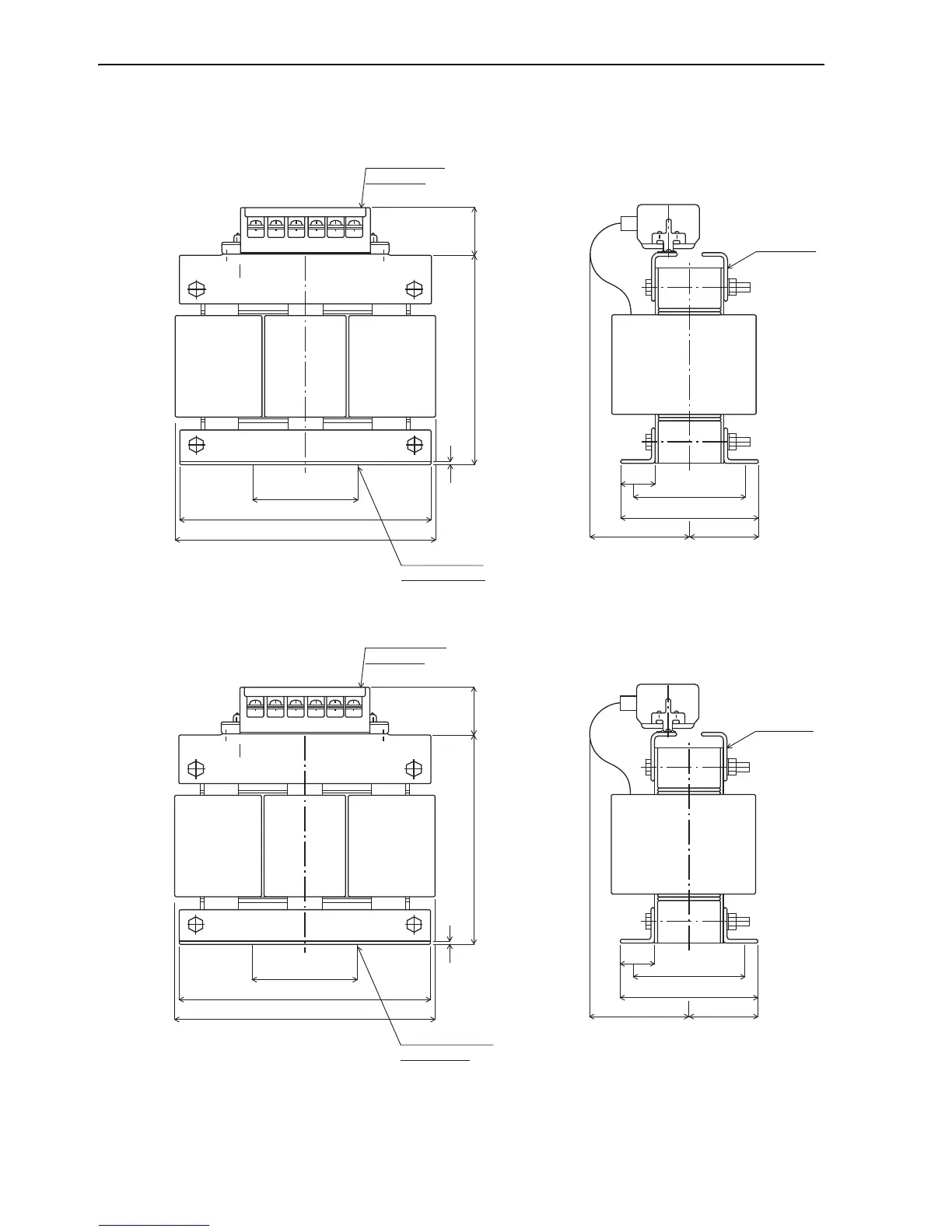

5.2.2 External Dimensions
5-6
(3)
Model: X008019
(4)
Model: X008020
205
210 max.
Nameplate
75
3.2
170
±
54
5
80
102
25
90 max.
51
6-terminals for
M6 screws
4-mounting holes
for M6 bolts
Unit: mm
205
210 max.
75
3.2
170
±
54
7
80
102
25
95 max.
51
6-terminals for
M8 screws
4-mounting holes
for M6 bolts
Nameplate
Unit: mm
95
97
