YASKAWA V1000 MMD User Manual

2 Mechanical Installation
EN 10 YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide

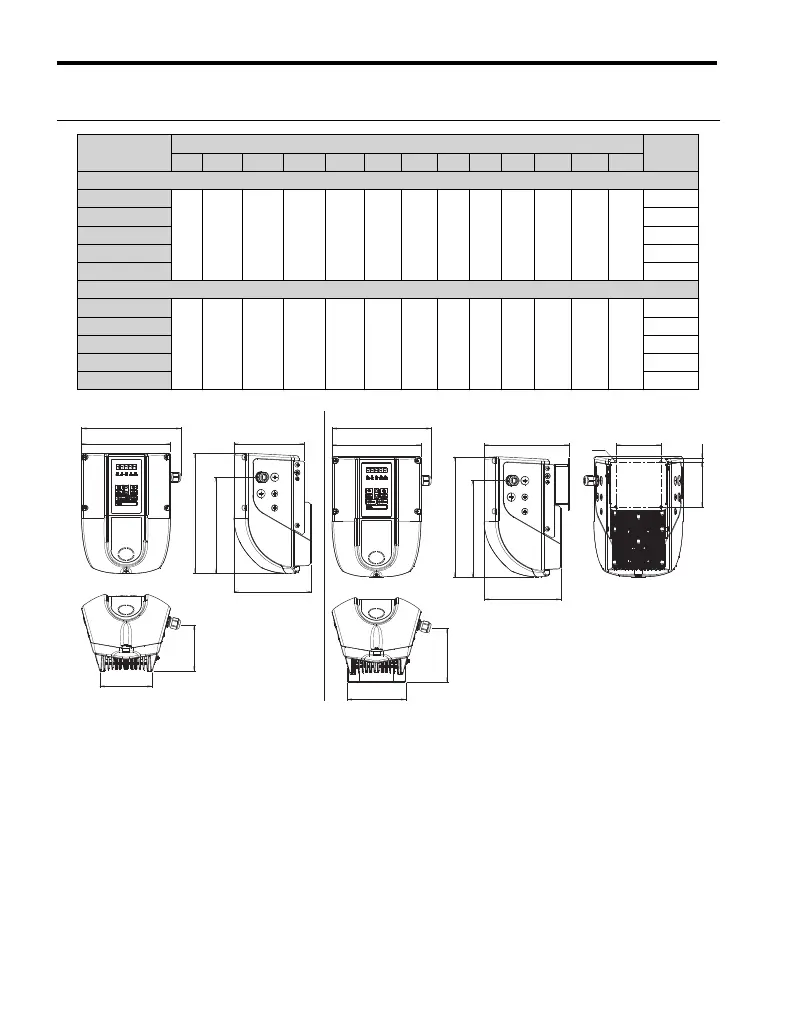

 Dimensions
When using the Wall Mount Version of the drive, always install the drive in an upright posi-
tion.
Note: Leave at least 50 mm distance between cable gland and next device or wall.
Note: Input cable gland cable can be fitted to left or right hand side.
Model
V1MCA
Dimensions (mm)
Weight
(kg)
Fig. W H D W1 W2 W3 H1 H2 H3 D1 D2 d
Motor Mount Version
400004A
A 216.5 293.3 186.6 241.6 128 - 234 - - 112.4 170 -
n.d.
400005A 5.3
400007A 5.7
400009A 5.7
400011A n.d.
Wall Mount Version
400004A
B 216.5 293.3 186.6 241.6 142.5 110 234 115 3 131.6 206 M6
n.d.
400005A n.d.
400007A n.d.
400009A n.d.
400011A n.d.
Fig. BFig. A
W1
W
W2
D1
D
D2
H
H1
W3
d
H2 H3
W
W1
W2
D1
D2
D
H
H1
WWW.NNC.IR

YASKAWA V1000 MMD Specifications

General

Series	V1000
Model	MMD
Input Voltage	200-240 VAC, 380-480 VAC
Output Power	0.4 kW to 315 kW
Control Method	V/f control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit
