ENGLISH
4 Keypad Operation
YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide EN 31
4 Keypad Operation

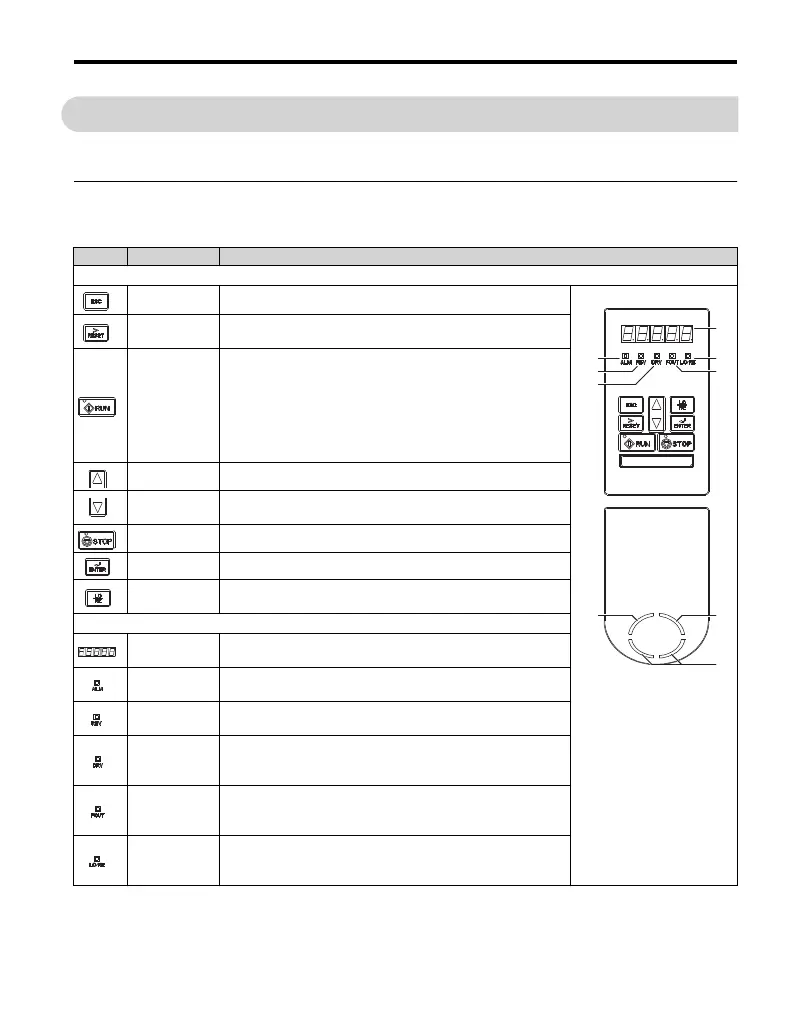

LED Operator and Keys
The LED operator is used to program the drive, to start/stop it, and to display fault informa-
tion. The LEDs indicate the drive status.
Item Name Function
Keys
ESC Key Returns to the previous menu.
RESET Key
Moves the cursor to the right.
Resets a fault.
RUN Key
Starts the drive in the LOCAL mode. The Run LED
• is on, when the drive is operating the motor.
• flashes during deceleration to stop or when the frequency
reference is 0.
• flashes quickly the drive is disabled by a DI, the drive was
stopped using a fast stop DI or a run command was active
during power up.
Up Arrow Key Scrolls up to select parameter numbers, setting values, etc.
Down Arrow
Key
Scrolls down to select parameter numbers, setting values, etc.
STOP Key Stops the drive.
ENTER Key Selects modes, parameters and is used to store settings.
LO/RE Selec-
tion Key
Switches drive control between the operator (LOCAL) and
the control circuit terminals (REMOTE).
Displays
Data Display
Area
Displays the frequency reference, parameter number, etc.
ALM LED
Light
Flashing: The drive is in an alarm state.
On: The drive is in a fault state and the output is stopped.
REV LED
Light
On: The motor rotation direction is reverse.
Off: The motor rotation direction is forward.
DRV LED
Light
On: The drive is ready to operate the motor.
Off: The drive is in the Verify, Setup, Parameter Setting or
Auto tuning mode.
FOUT LED
Light
On: The output frequency is displayed on the data screen.
Off: Anything else than the output frequency is displayed on
the data screen.
LO/RE LED
Light
On: The drive is in the LOCAL mode (operation from key-
pad)
Off: The drive is in REMOTE mode.
1
6
3
2
4
5
98
7
