2 Mechanical Installation
YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide EN 13
ENGLISH
Mounting the Drive - Motor Mount Version

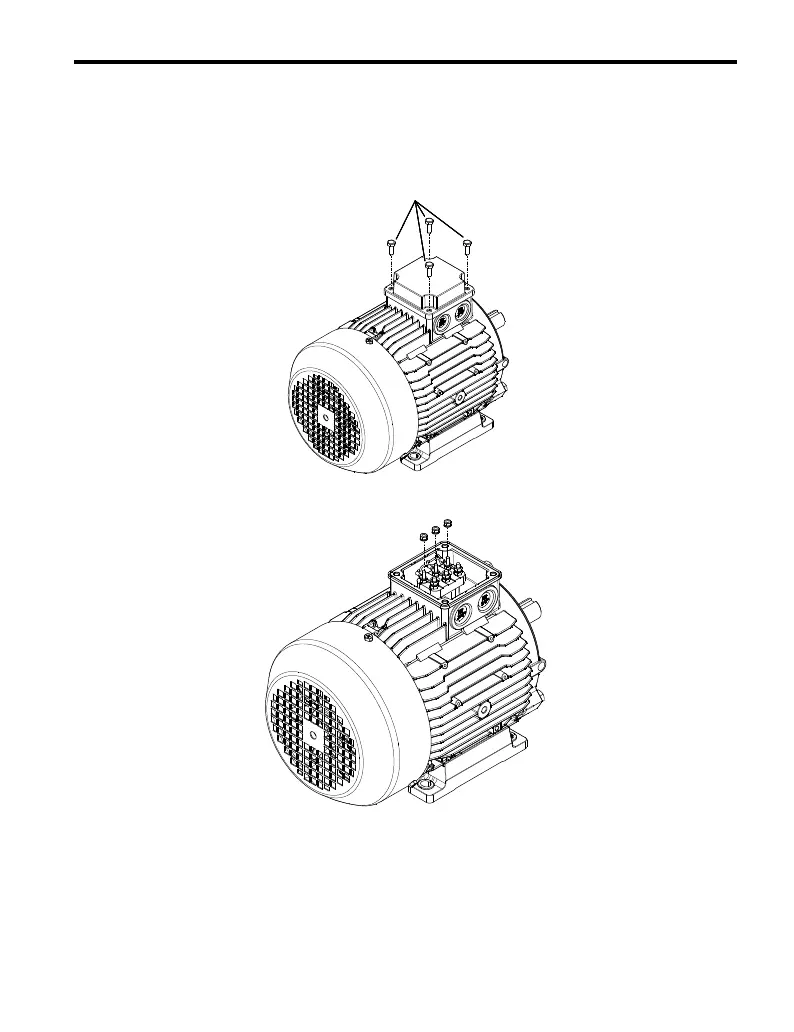

Mount the drive to the motor according to the following procedure:
1. Remove the terminal lid and rubber seals from the motor and retain the 4 screws (A).
2. Remove the terminal fixings nuts (B).
A (4x)
B (3x)
