4 Keypad Operation
YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide EN 33
ENGLISH
 Menu Structure and Modes

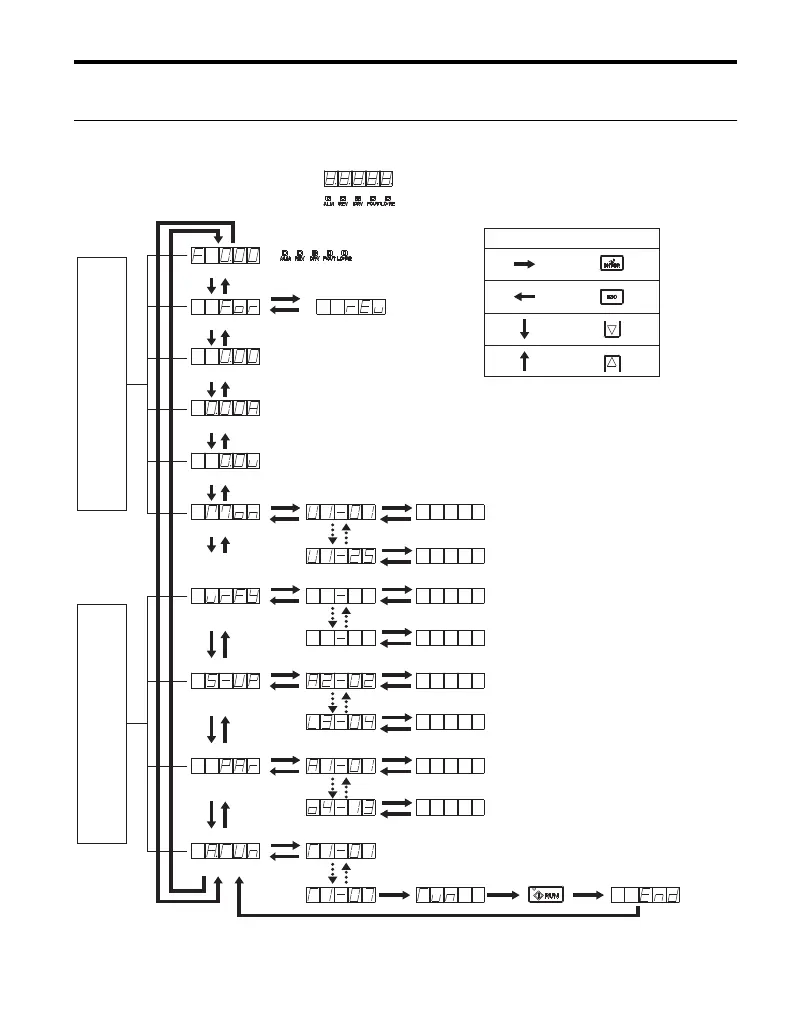

The following illustration explains the operator keypad menu structure.
DRV LED is off.
The motor can not be started.
X X X X
X X X X
X X X X
X X
X X X X
X X X X
X X X X
X X X X
X X X X
X X X X
X X X X
:
:
:
:
Key operation description
Turn the power on (DRV lights)
Forward Selection Reverse Selection
Output Frequency
Output Current
Output Voltage
Monitor Display
Verify Menu
Setup Mode
Parameter Setting Mode
Auto-Tuning
DRV LED is on.
A Run command will start the motor.
The Monitor Displays are used to
read out drive data like terminal
status, output frequency, fault
information etc.
The Verify Menu lists up all
parameters which are unequal to
the default setting.
The Setup Mode can be used to
set up a minimum list of
parameters necessary to run the
application.
In the Parameter Setting Mode all
drive parameters can be set up.
Auto-Tuning measures the motor
data for optimal performance of
the drive/motor combination.
