2 Mechanical Installation
EN 20 YASKAWA Europe TOEP C710606 101A - V1000 MMD IP65 Motor Mounted Drive - Quick Start Guide

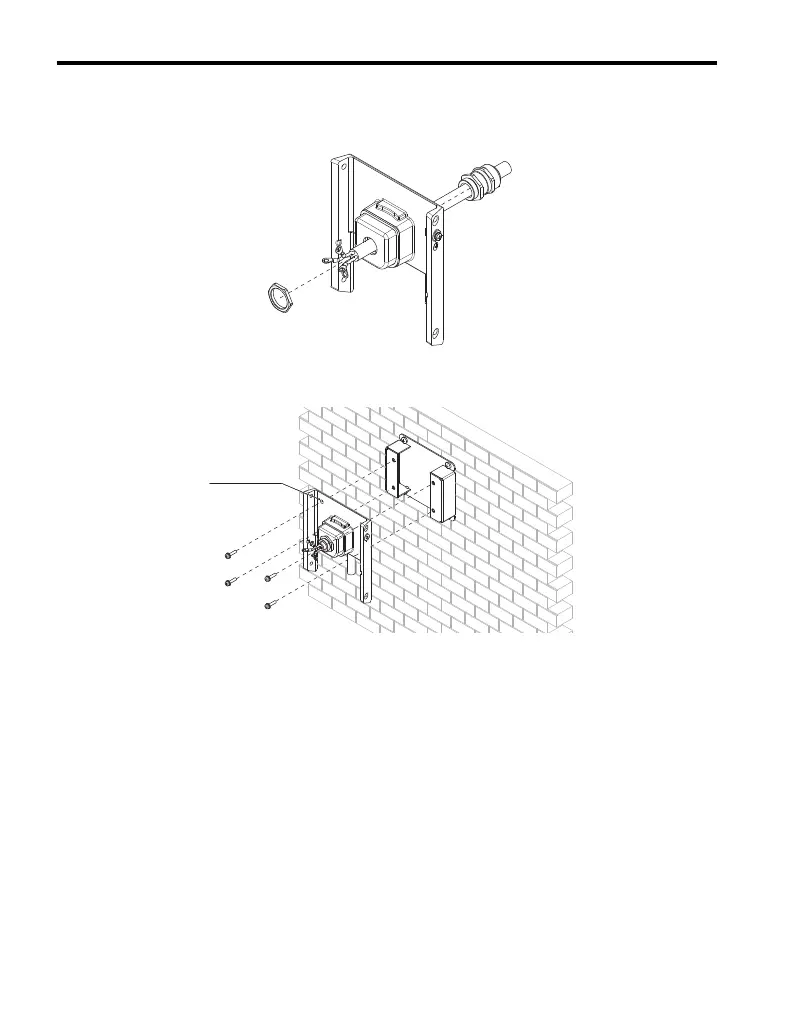

3. Feed motor cables through the cable gland (app. 100 mm minimum), fit the cable gland
to the collar, then route the cable.
4. Attach the mount collar with motor cables to the wall bracket using 4-M5x20 screws.
Route the cables downwards.
Ø5.5 Holes to be drilled
in mount collar
WWW.NNC.IR

YASKAWA V1000 MMD Specifications

General

Series	V1000
Model	MMD
Input Voltage	200-240 VAC, 380-480 VAC
Output Power	0.4 kW to 315 kW
Control Method	V/f control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit
