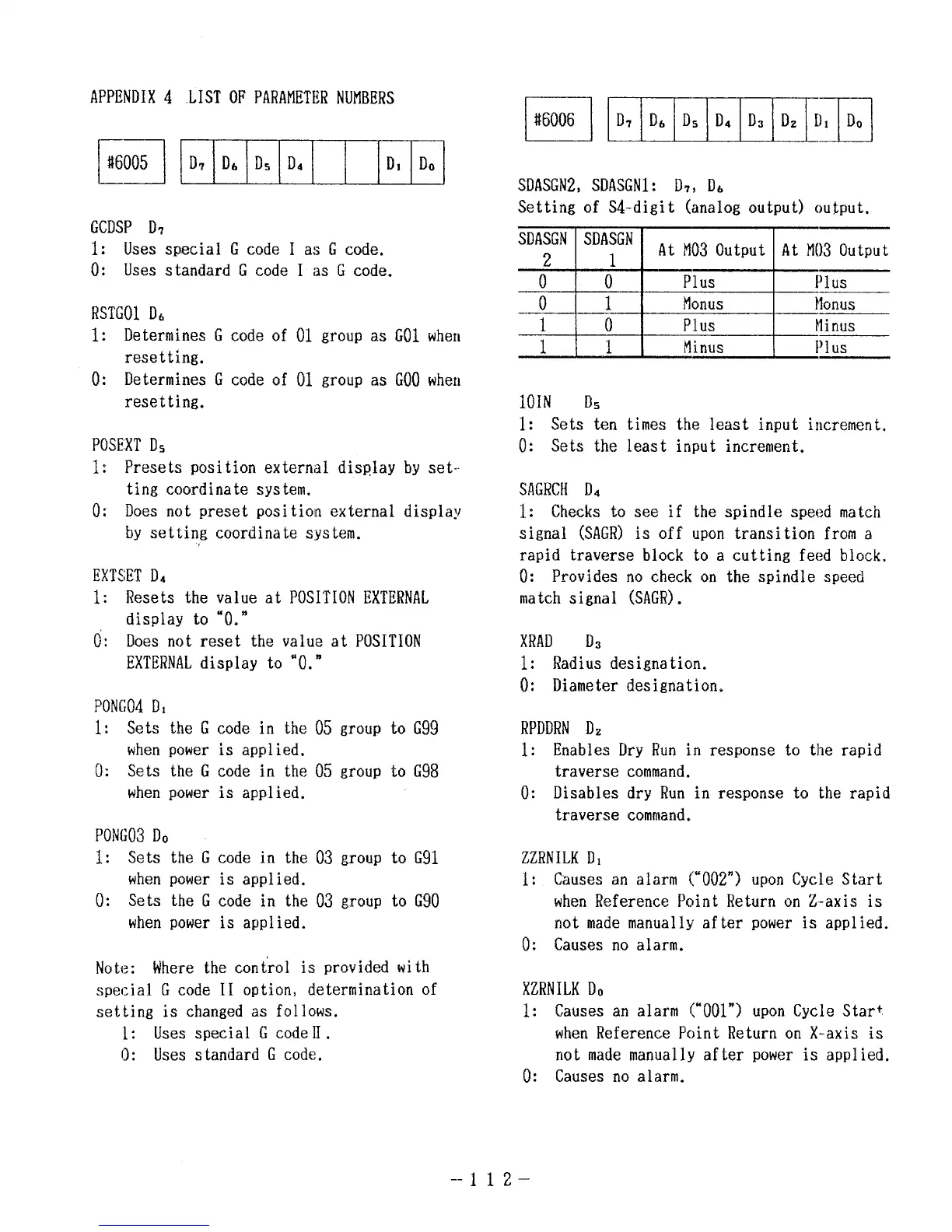

APPENDIX4 LIST OF PARAMETERNUMBERS
Eg mm
GCDSP D,
1: Uses special G code I as G code.
O: Uses standard G code I as G code.
RSTGO1Db
1: Determines G code of 01 group as GOI when
resetting.
O: Determines G code of 01 group as GOOwhen
resetting.
POSEXTDs
1: Presets position externi~l display by set-
ting coordinate system.
O: Does not preset position external display
by setting coordinate system.
EXTSETD,
1: Resets the value at POSITIONEXTERNAL
display to “O.”
0’: Does not reset the value at POSITION
EXTERNALdisplay to “O.n
PONG04D1
1: Sets the G code in the 05 group to G99
when power is applied.
0: Sets the G code in the 05 group to G98
when power is applied.
PONG03DO
1.: Sets the G code in the 03 group to G91
when power is applied.
O: Sets the G code in the 03 group to G90
when power is applied.
Note :
Where the control is provided with
special G code II option, determination of
setting is changed as follows.
1: Uses special G code 11.
10:
Uses standard G code.
mElmTEIzm
SDASGN2,SDASGN1: D7, D~
Setting of S4-digit (analog output) output.
SDASGN
SDASGN
2
At M03Output AtM03 Output
o ;
Plus
f)lus
o
1
Menus
Menus
1 0
Plus Minus
1
1
Minus
Plus
IOIN D,
1: Sets ten times the least input increment.
O: Sets the least input increment,
SAGRCHDd
1: Checks to see if the spindle speed match
signal (SAGR)is off upon transition from a
rapid traverse block to a cutting feed block.
O: Provides no check on the spindle speed
match signal (SAGR).
XRAD Ds
1: Radius designation.
0: Diameter designation,
RPDDRND2
1: Enables Dry Run in response to the rapid
traverse command.
O: Disables dry Run in response to the rapid
traverse command.
ZZRNILKD1
1:
0:
Causes an alarm (“002”) upon Cycle Start
when Reference Point Return on Z-axis is
not made manually after power is applied.
Causes no alarm.
XZRNILKDo
1: Causes an alarm (“001”) upon Cycle Star+
when Reference Point Return on X-axis is
not made manually after power is applied.
O: Causes no alarm.
