Yealink SIP-T46G User Manual

Advanced Phone Features
185
The default tag is Empty if it is not configured before.

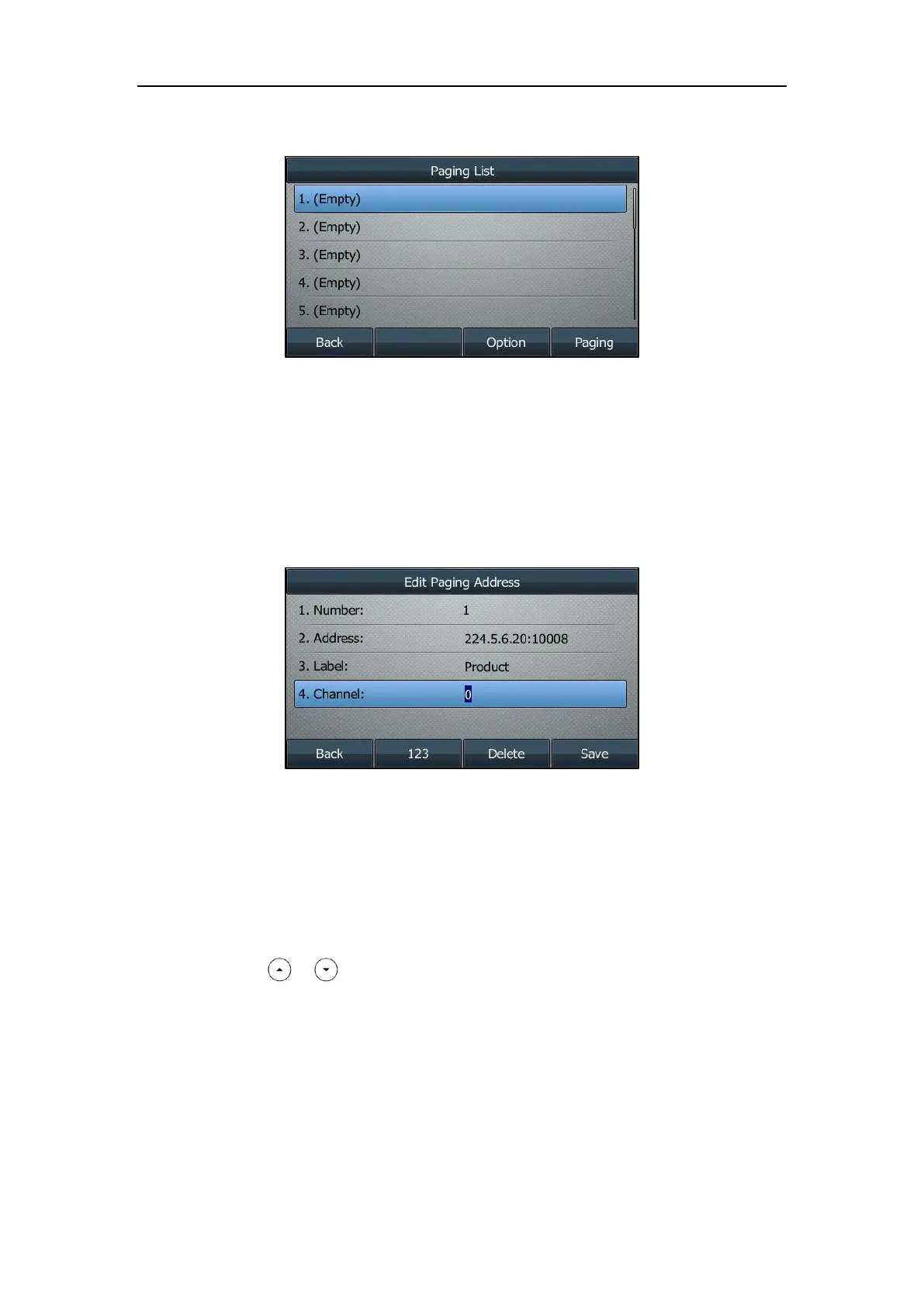

3. Press the Option soft key, and then press the Edit soft key from the prompt list.
4. Enter the multicast IP address and port number (e.g., 224.5.6.20:10008) in the Address field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
5. Enter the group name in the Label field.
6. Enter the desired channel in the Channel field.
The valid channel ranges from 0 to 30.
7. Press the Save soft key to accept the change.
8. Repeat steps 2 to 7, you can add more paging groups.
Paging list is configurable via web user interface at the path Directory->Multicast IP.
To delete a paging group via phone user interface:
1. Press the paging list key when the phone is idle.
2. Press or to select a desired paging group.
3. Press the Option soft key, and then select Delete from the prompt list.

Yealink SIP-T46G Specifications

General

Backlight	Yes
Power requirements	100-240V, DC 5V
Touchscreen	-
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.711, G.722, G.723, G.726, G.729A, G.729B
Bluetooth	No
RJ-9 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	185 mm
Width	244 mm
Height	213 mm
