5.1.2 VLAN Settings
A VLAN (Virtual LAN) is a logical local area network (or LAN) that extends beyond a single
traditional LAN to a group of LAN segments, given specific configurations.
Note:
NeoGate TG is not the VLAN server, a 3-layer switch is still needed, please configure the
VLAN information there first, then input the details in NeoGate TG, so that the packages
via NeoGate TG will be added the VLAN label before sending to that switch.

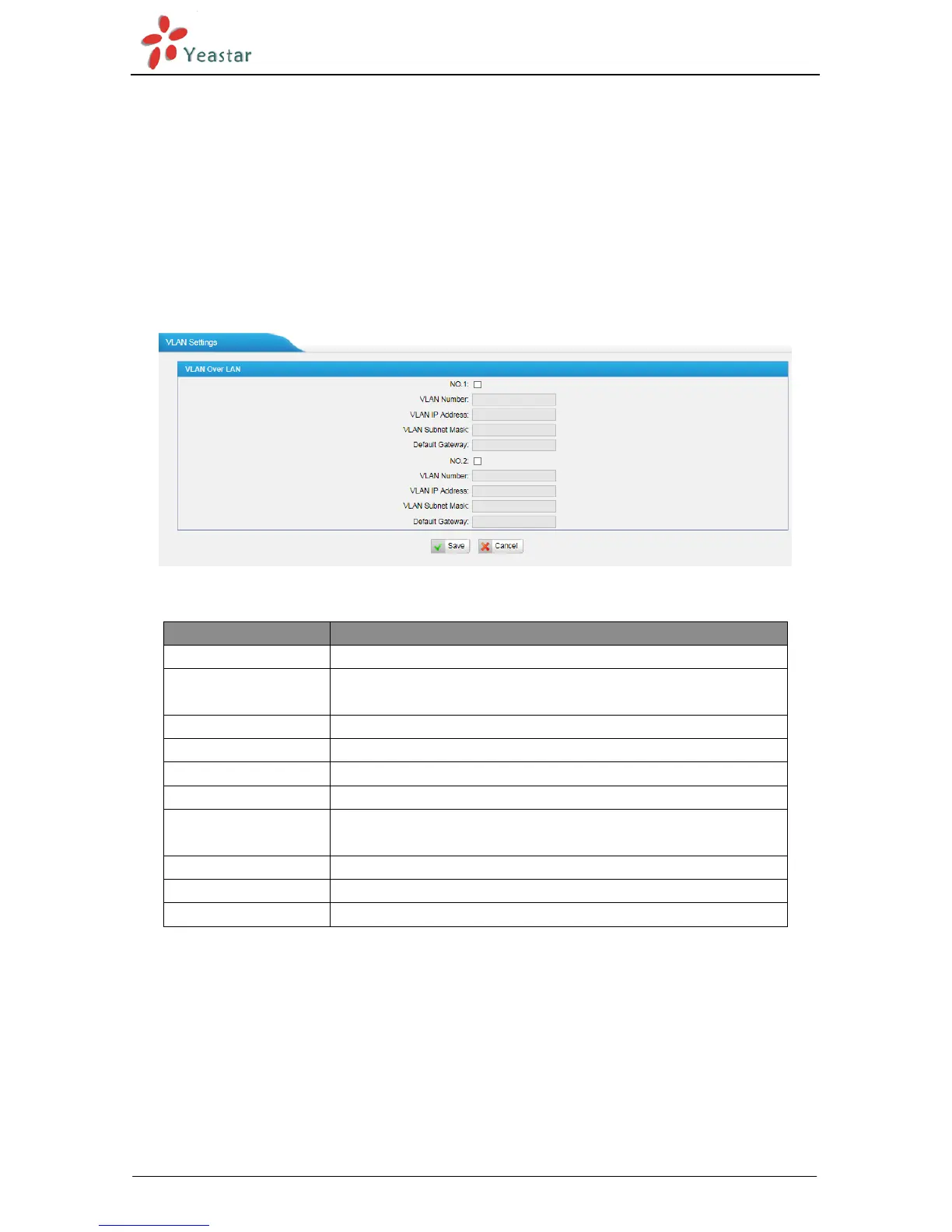

Figure 5-2
Items
Description
NO.1
Click the NO.1 you can edit the first VLAN over LAN
VLAN Number
The VLAN Number is a unique value you assign to each
VLAN on a single device
VLAN IP Address
Set the IP Address for NeoGate TG VLAN over LAN.
VLAN Subnet Mask
Set the Subnet Mask for NeoGate TG VLAN over LAN.
Default Gateway
Set the Default Gateway for NeoGate TG VLAN over LAN
NO.2
Click the NO.2 you can edit the first VLAN over LAN.
VLAN Number
.The VLAN Number is a unique value you assign to each
VLAN on a single device.
VLAN IP Address
Set the IP Address for NeoGate TG VLAN over LAN.
VLAN Subnet Mask
Set the Subnet Mask for NeoGate TG VLAN over LAN.
Default Gateway
Set the Default Gateway for NeoGate TG VLAN over LAN.
