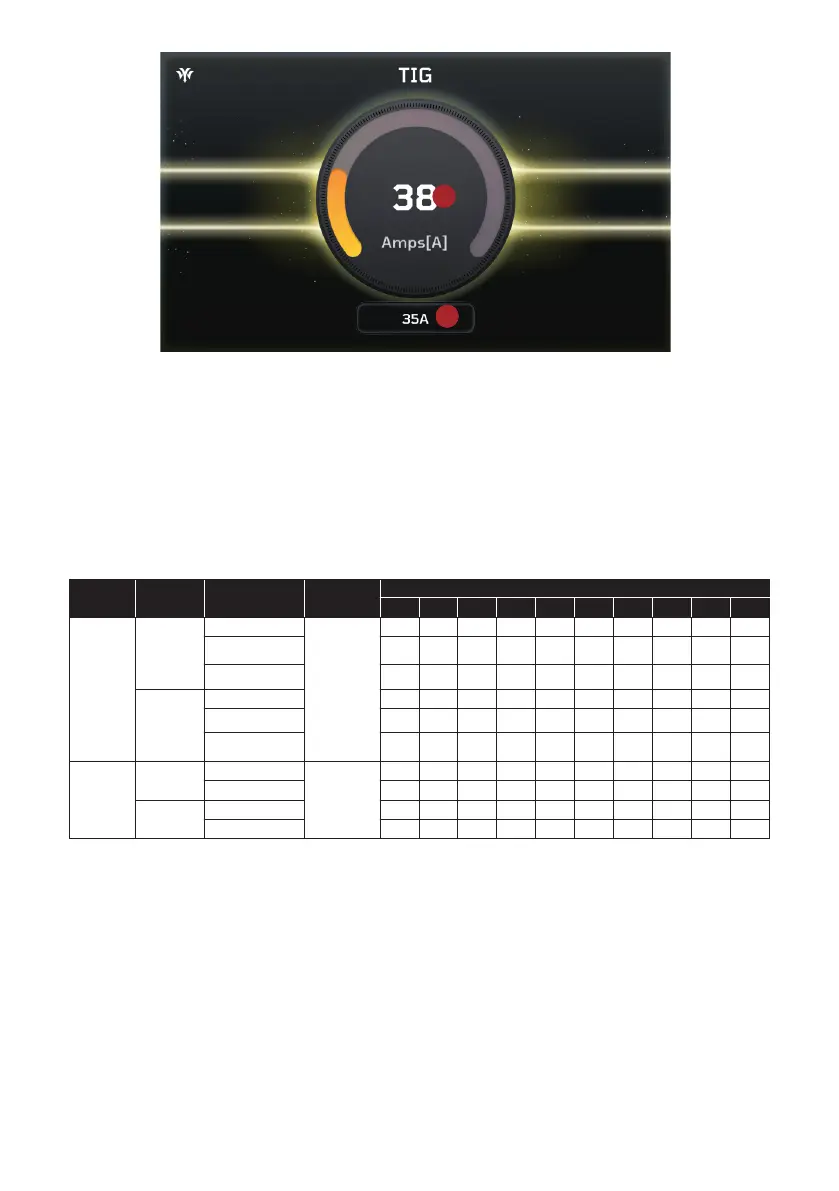

3.13.4 TIG Welding Parameters Recommendation
Proper configuration of welding parameters is critical for achieving optimal TIG welding results. This section details recommended
settings based on material type, thickness, and tungsten diameter. This section provides recommended settings based on material
type, thickness, and tungsten diameter. Following these guidelines ensures accurate heat control, improved weld quality, and
enhanced performance.
TIG Welding Recommended Parameter Settings
Voltage
Material
Diameter
Amperage
Thickness
24ga
22ga
20ga
18ga
16ga
14ga
1/8"
3/16"
1/4"
3/8"
220V
Steel
1/16" (1.6mm)
10~200A
18
20
25
40
50
65
95
/
/
/
3/32" (2.4mm)
18
20
25
40
50
65
95
130
160
200
1/8" (3.2mm)
18
20
25
40
50
65
95
130
160
200
Stainless
Steel
1/16" (1.6mm)
18
20
25
40
50
65
95
/
/
/
3/32" (2.4mm)
18
20
25
40
50
65
95
130
160
200
1/8" (3.2mm)
18
20
25
40
50
65
95
130
160
200
110V
Steel
1/16" (1.6mm)
10~120A
18
20
25
40
50
65
95
/
/
/
3/32" (2.4mm)
18
20
25
40
50
65
95
/
/
/
Stainless
Steel
1/16" (1.6mm)
18
20
25
40
50
65
95
/
/
/
3/32" (2.4mm)
18
20
25
40
50
65
95
/
/
/
The amperage settings outlined are aligned with material thickness, type, and tungsten diameter. These recommendations serve
as a reference to assist users in setting up their welding parameters. Users should adjust the settings to their specific welding
conditions and needs to ensure the best possible results.
3.13.5 Optional Foot Pedal Installation
In TIG welding process, this machine allows for the connection of a foot pedal to control both the welding switch and current,
providing enhanced precision during welding. The foot pedal is not included and must be purchased separately. This section
outlines the wiring requirements, automatic recognition, and steps for connecting the foot pedal to the machine in TIG welding
process.
