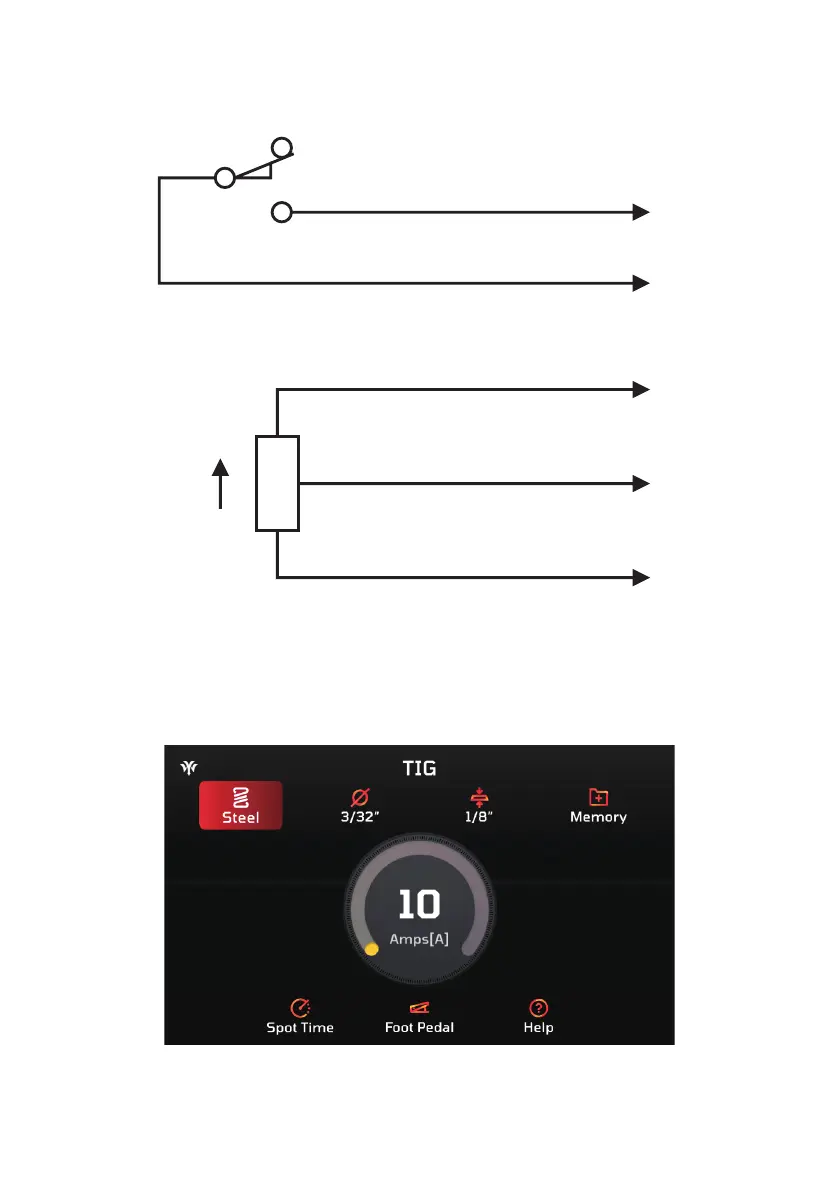

Electrical Wiring Diagram-2
OFF
LSI
ON
PLGI
CW
RI
BLACK
3
5
1
4
2
YELLOW
YELLOW
BLUE
RED
Automatic Pedal Recognition
Once the foot pedal meets the specified conditions and is connected using the 5-pin connector, the machine will automatically
recognize it. The system will switch to TIG welding process and enable foot pedal control for welding functions.
Simply connect the foot pedal, and the machine will recognize it instantly, allowing real-time control of welding current and switching
through the pedal.
- 44 -
