Foot Pedal Connection

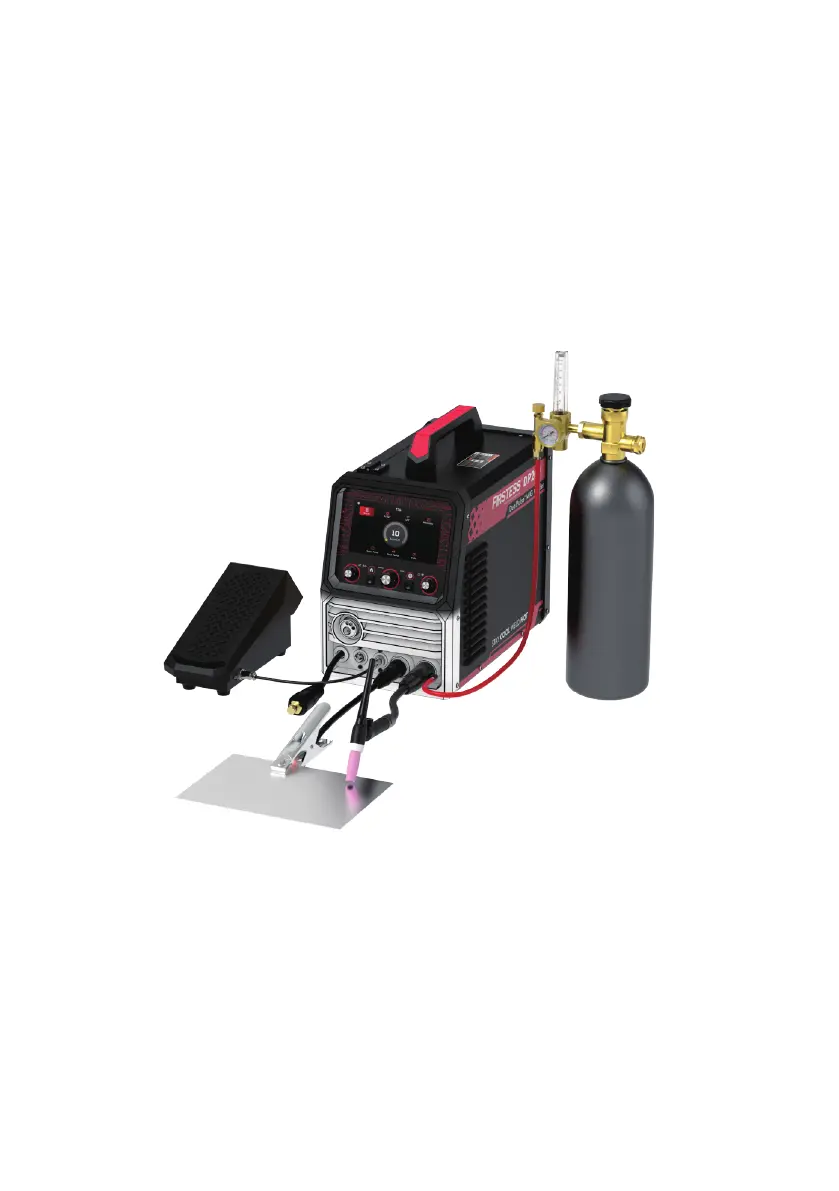

Using the optional Lift Arc TIG Torch with the Foot Pedal by following steps:
1. Adjust Gas Flow: Set the gas valve on the torch to achieve the appropriate flow rate. Ensure effective coverage of the weld
area.
2. Connect Foot Pedal: Attach the five-pin foot pedal to the welding machine. Ensure all connections are secure and properly
configured.
3. Start Welding Process: Engage the foot pedal to power up the machine and ignite the arc using the lift arc method. The foot
pedal will control the welding current.
4. Control Current: Adjust the welding current in real-time by varying the pressure on the foot pedal. This allows for precise control
of the current based on welding needs.
5. End Welding Operation: Release the foot pedal to terminate the welding arc and power down the machine.
6. Inspect Equipment: After welding, check the settings and condition of the equipment to ensure everything is correctly set and
functioning properly.
- 45 -
