2.5 Sweeping
The sweep feature moves the meter needle from the minimum scale value to 120% of the maximum
scale value at a constant speed. It is used to check whether the needle is sticky when it moves. You
can select the sweep time depending on the meter type. To sweep a wide-angle meter, you can select
a long sweep time to move the needle slowly.
Sweep time: 8 s, 16 s, 32 s, or 64 s

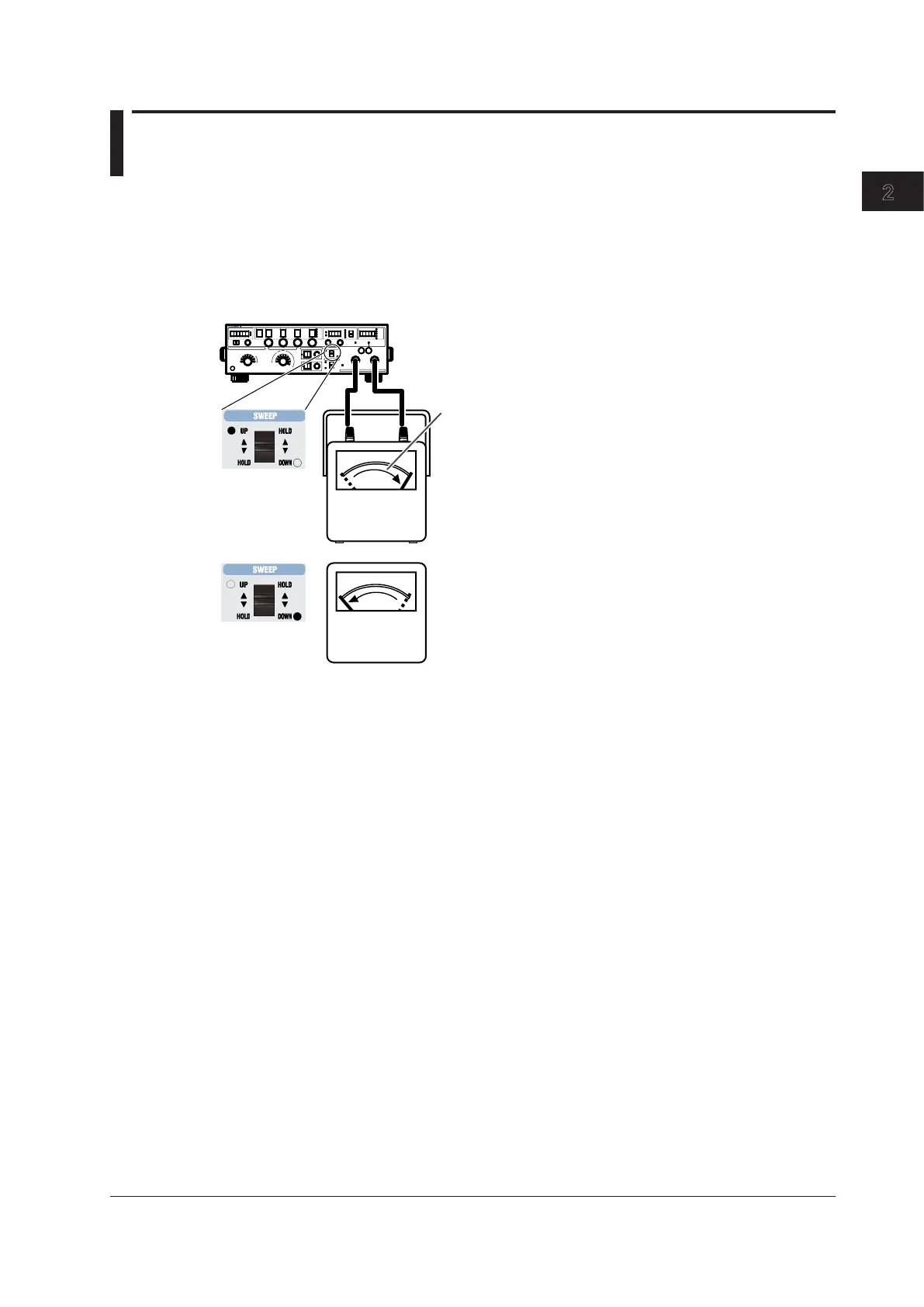

UP sweep
DOWN sweep
Ammeter
0 A to 12 A
Main setting = 10 A
Ammeter
12 A to 0 A
Sweeps the needle over
the specified time.
When sweeping up, sweeping is performed up to 120% of the maximum scale value.
