10-2
IM 2558A-01EN
10.2 Connecting to the Ethernet Interface
Connection Procedure

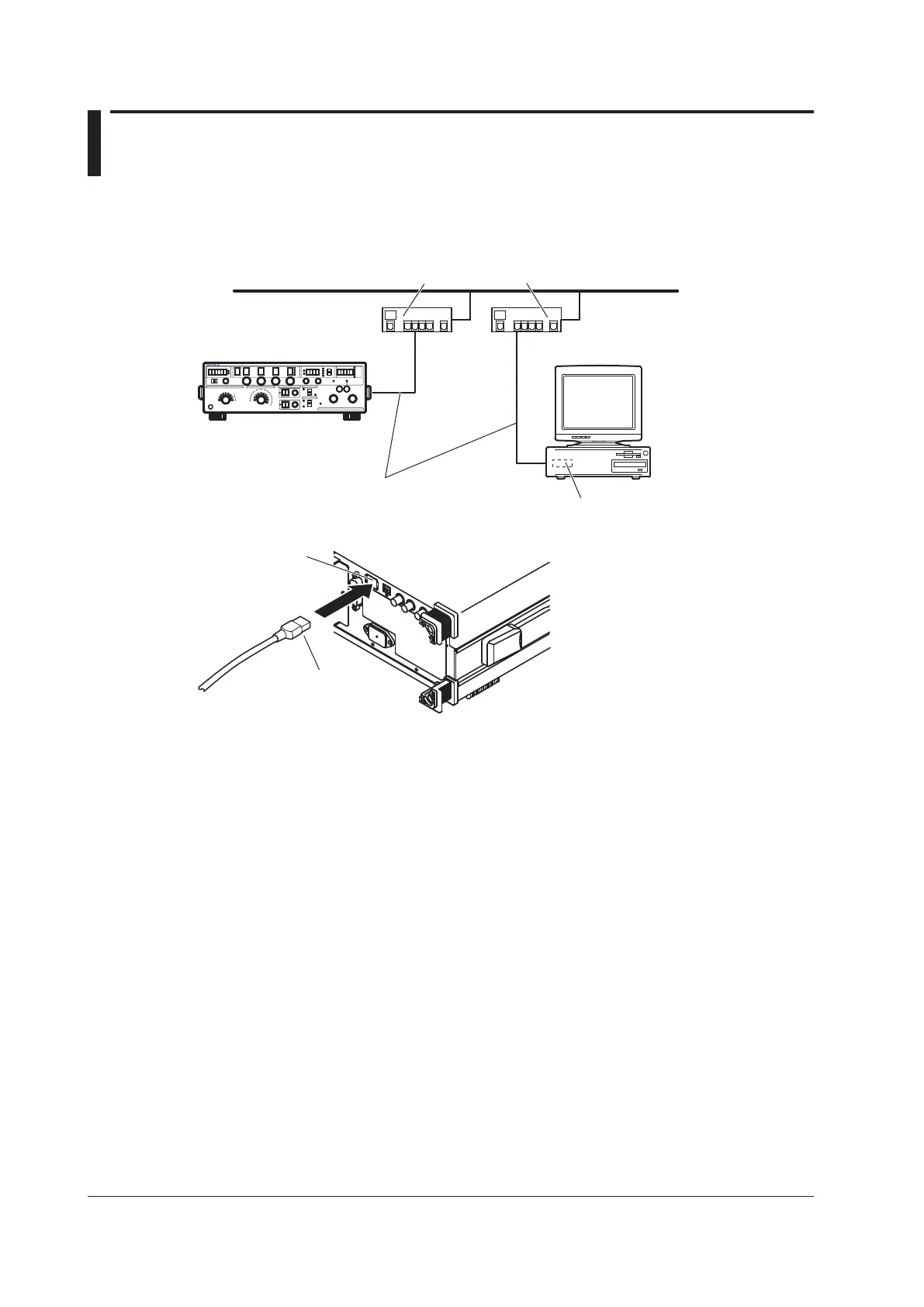

Connect a UTP (Unshielded Twisted-Pair) or STP (Shielded Twisted-Pair) cable that is connected to
a hub or other network device to the Ethernet port on the 2558A rear panel.
Hub or router that supports 100BASE-TX/10BASE-T
PC
UTP or STP cable
(straight cable)
Network card
2558A
2558A
Ethernet port
RJ-45 modular jack
Notes on Connection
To connect the 2558A to a PC, be sure to use straight cables and to connect through a hub or
router. Proper operation is not guaranteed for a one-to-one connection using a crossover cable.
Use a network cable that supports the data rate of your network.
