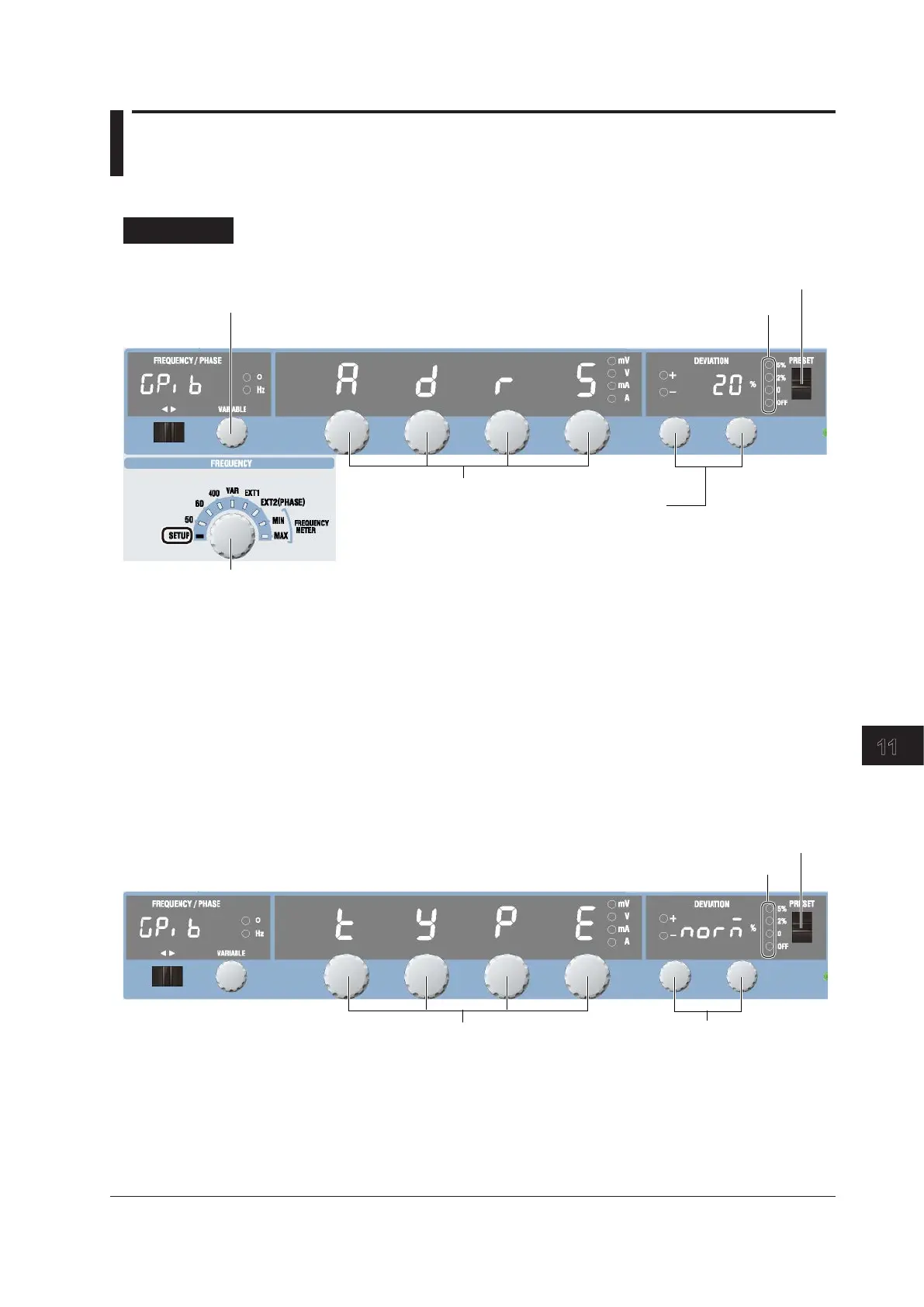

11.3 Configuring the 2558A GP-IB Settings
This section explains the following setting for controlling the 2558A remotely through a GP-IB interface:
Procedure
Setting the GP-IB Address
These turn off when the setting is confirmed.
5. Confirm the setting.
2. Select GPIB.
1. Select SETUP.
3. Turn a dial to select ADRS.
4. Set the address.
Use the deviation dial 1 to set the tens digit.
Use the deviation dial 2 to set the ones digit.
1.
Turn the FREQUENCY dial to select SETUP.
The indicator corresponding to the selected SETUP range illuminates, and the frequency/phase angle
display area shows the SETUP menu.
2.
Turn the VARIABLE dial to select GPIB.
3.
Turn a main setting dial to select ADRS.
4.
Turn the deviation dials to select the address.
When you change the setting, all four preset indicators will illuminate.
5.
Flip the PRESET switch up or down.
The setting is confirmed, and all the preset indicators turn off.
Command Type
These turn off when the setting is confirmed.
7. Turn either dial to
select NORM or COMP.
8. Confirm the setting.
6. Turn a dial to select TYPE.
6.
Turn a main setting dial to select TYPE.
7.
Turn a deviation dial to select NORM or COMP.
When you change the setting, all four preset indicators will illuminate.
8.
Flip the PRESET switch up or down.
The setting is confirmed, and all the preset indicators turn off.
