5.2 Setting the Frequency
Procedure
Selecting a Fixed Frequency (50 Hz, 60 Hz, or 400 Hz)

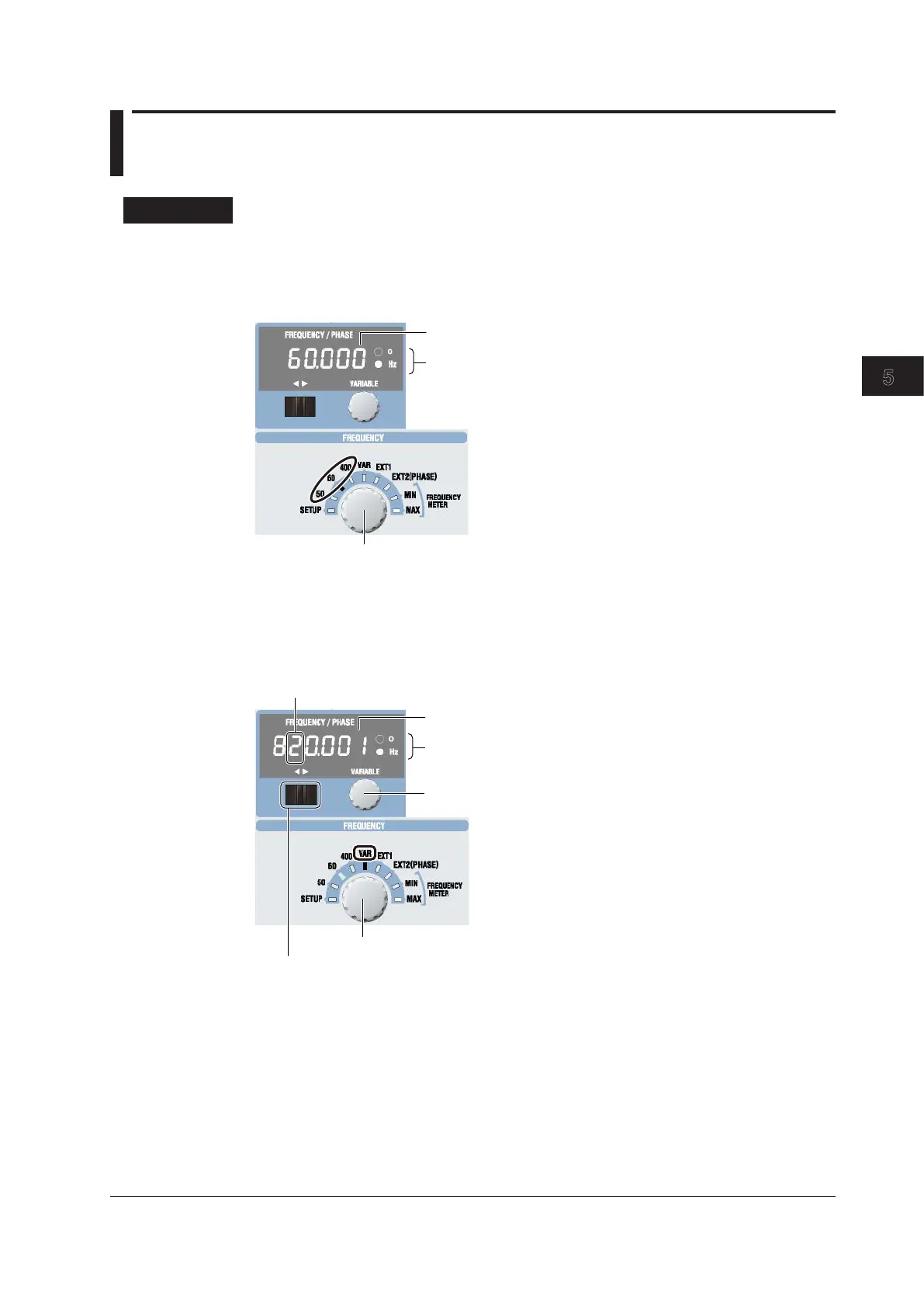

Turn the FREQUENCY dial to set the output frequency to 50, 60, or 400 (Hz).
The indicator corresponding to the selected frequency and the Hz unit indicator illuminate. In addition, the
selected frequency is displayed.
Select 50, 60, or 400 (Hz).
Unit
Selecting a Specific Frequency (VAR)
1.
Turn the FREQUENCY dial to select VAR.
The VAR range indicator and the Hz unit indicator illuminate. In addition, the specified frequency is
displayed.
Unit
The specified frequency
2. Select the digit you want to set.
The selected digit blinks (use the cursor switch to move left and right).
3. Set the frequency (value).
1. Select VAR.
2.
Use the cursor switch (◄►) to select the digit you want to set.
The selected digit blinks.
3.
Turn the VARIABLE dial to set the value.
