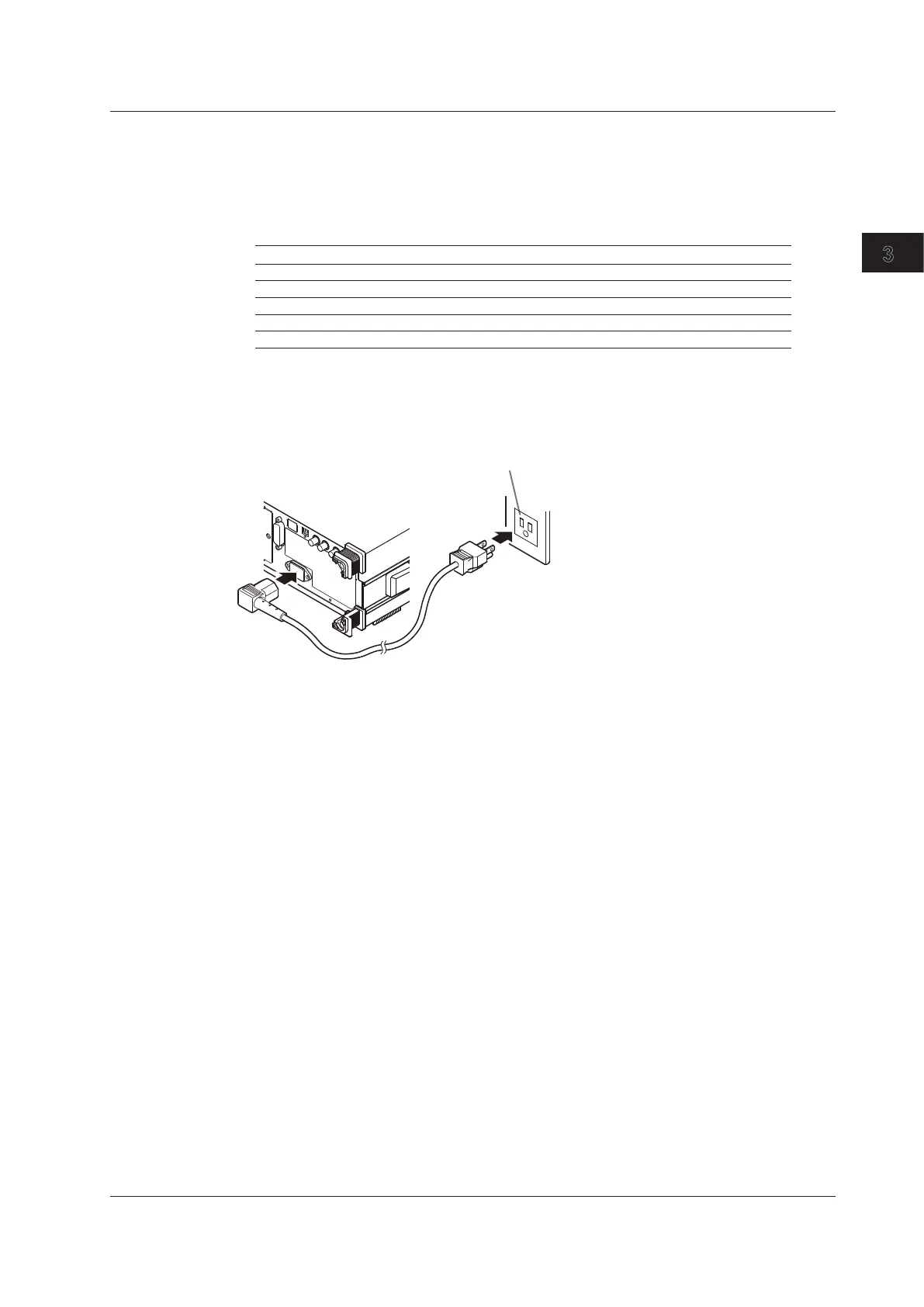

Connecting the Power Cord
1.
Check that the power switch (POWER) on the front panel of the instrument is turned off.
2.
Connect the power cord plug to the power inlet on the rear panel.
3.
Connect the other end of the cord to an outlet that meets the following conditions. Use a
grounded three-prong outlet.
Item
Rated supply voltage* 100 VAC to 120 VAC, 200 VAC to 240 VAC
Permitted supply voltage range 90 VAC to 132 VAC, 180 VAC to 264 VAC
Rated supply frequency 50 Hz/60 Hz
Permitted supply frequency range 48 Hz to 63 Hz
Maximum power consumption Approx. 200 VA
* This instrument can use a 100 V or a 200 V power supply. The maximum rated voltage
differs according to the type of power cord. Check that the voltage supplied to the
instrument is less than or equal to the maximum rated voltage of the power cord provided
with the instrument before using it (see page iii for the maximum rated voltage).
