3-15
IM 2558A-01EN
Preparation
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
App
Index
CAUTION
• Confirm that no foreign materials are caught in the contact area between the current
terminal and the cable.
• Periodically confirm that the current terminals are not loose and that there are no foreign
materials caught in the contact area between the current terminal and the cable.
French
ATTENTION
• Vérifier l’absence de corps étrangers dans la zone de contact entre la borne de courant et
le câble.
• Vérifier régulièrement que les bornes de courant sont bien serrées et qu’il n’y a aucun
corps étranger dans la zone de contact entre la borne de courant et le câble.

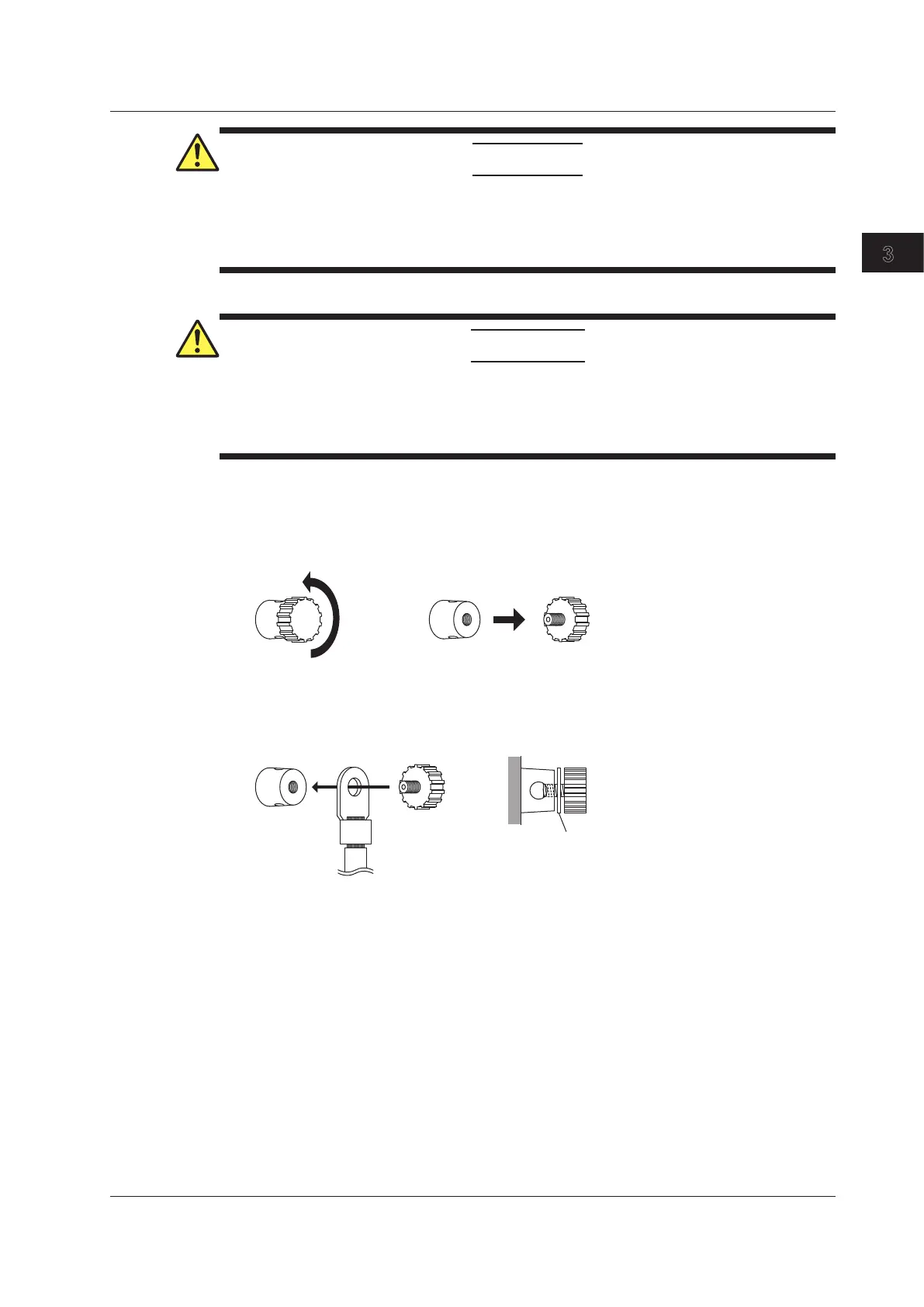

Connecting to a Round Crimped Terminal
To connect a cable with a round crimped terminal to a current terminal, follow the procedure below.
1.
Turn the current terminal knob to remove it.
Terminal base Knob
2.
Insert the screw of the knob into the crimped terminal, and then tighten firmly with the terminal
knob. The terminal or knob may break if you apply excessive torque.
Crimped terminal
3.6 Connecting Cables
To Next Page
