6-3
IM 2558A-01EN
Calibrating the Frequency Meter
6
7
8
9
10
11
12
13
14
15
16
App
Index

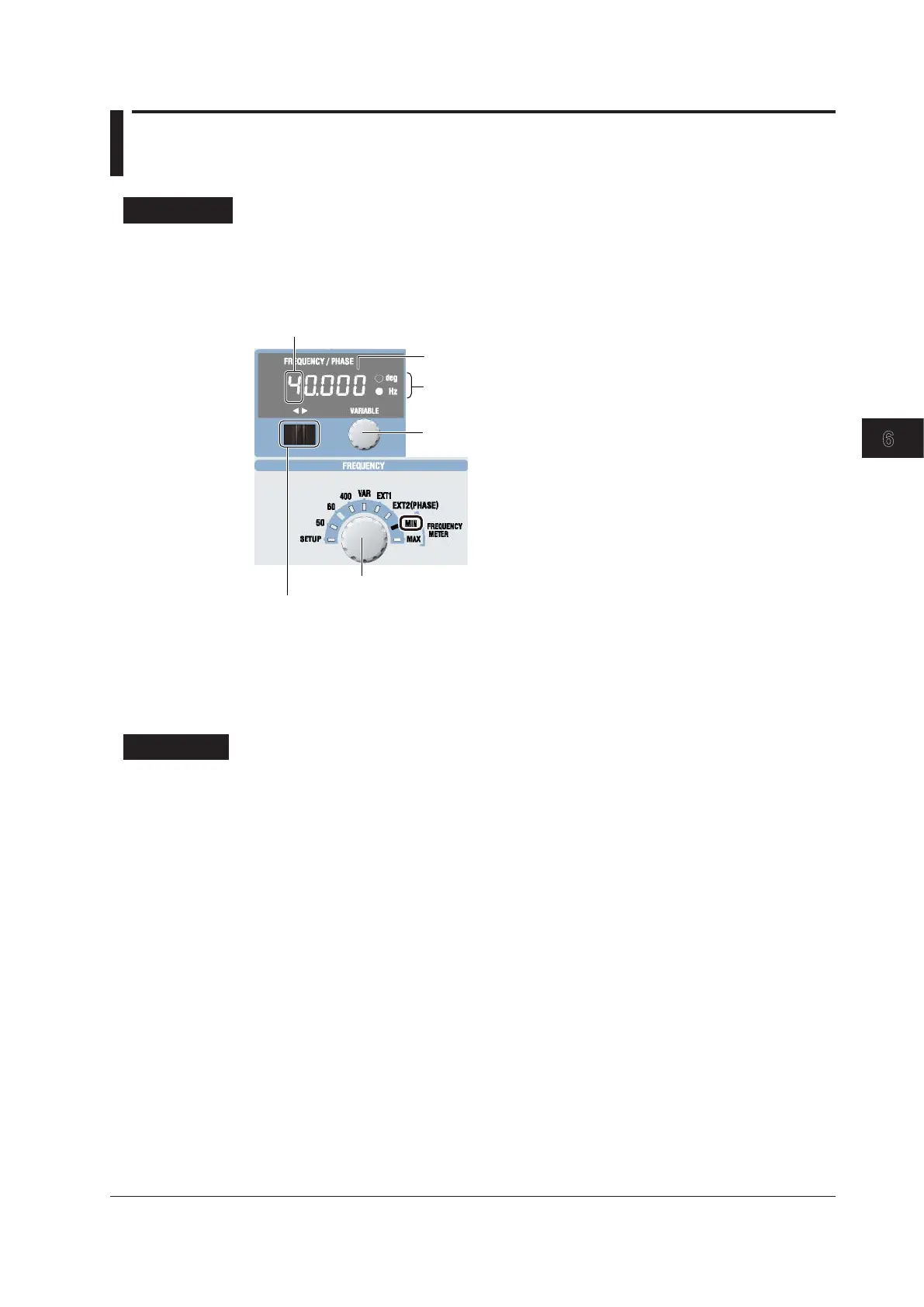

6.2 Setting the Frequency
Procedure
Selecting the Frequency Meter (FREQUENCY METER MIN/MAX)
1
Turn the FREQUENCY dial to select FREQUENCY MAX or MIN.
The indicator corresponding to the selected frequency and the Hz unit indicator illuminate. In addition, the
selected frequency is displayed.
Unit
The specified frequency
2. Select the digit you want to set.
The selected digit blinks (use the cursor switch to move left and right).
3. Set the frequency (value).
1. Select FREQUENCY MIN.
2.
Use the cursor switch (◄►) to select the digit you want to set.
The selected digit blinks.
3.
Turn the VARIABLE dial to set the value.
Explanation
Set the minimum scale value (MIN) and the maximum scale value (MAX) of the frequency meter that
you want to calibrate.
Frequency range FREQUENCY METER MIN: 20 Hz to 1000 Hz
FREQUENCY METER MAX: 20 Hz to 1000 Hz
Display resolution Frequency other than 1000 Hz: 0.001 Hz
1000 Hz: 0.01 Hz
The FREQUENCY MIN value cannot be set to a value greater than the FREQUENCY MAX value.
If the frequency is 40 Hz or less, the maximum output oscillation decreases.
To calibrate a frequency meter whose rating is 100 V, use the 300 V range, not the 100 V range.
<<Command Mnemonic>>
:FREQuency:INTernal:FMETer:MINimum {<
Frequency
>|MINimum|MAXimum}
:FREQuency:INTernal:FMETer:MAXimum {<
Frequency
>|MINimum|MAXimum}
