Program Editing Operations
The following describes the operation of the various soft keys when editing programs.
Each description assumes that the program editing screen is open (by pressing
PROGRAM, followed by the PROGRAM EDIT > EDIT soft keys).
Selecting Commands
The following two types of commands are available.
Function Commands
These commands execute the same function as a function switch (including the
contents of a soft key).
(Commands corresponding to the soft keys such as SINGLE and SPAN)
Special Commands
These commands include jump commands, program control commands for conditional
decision, etc., control commands to an external device, and data output commands.

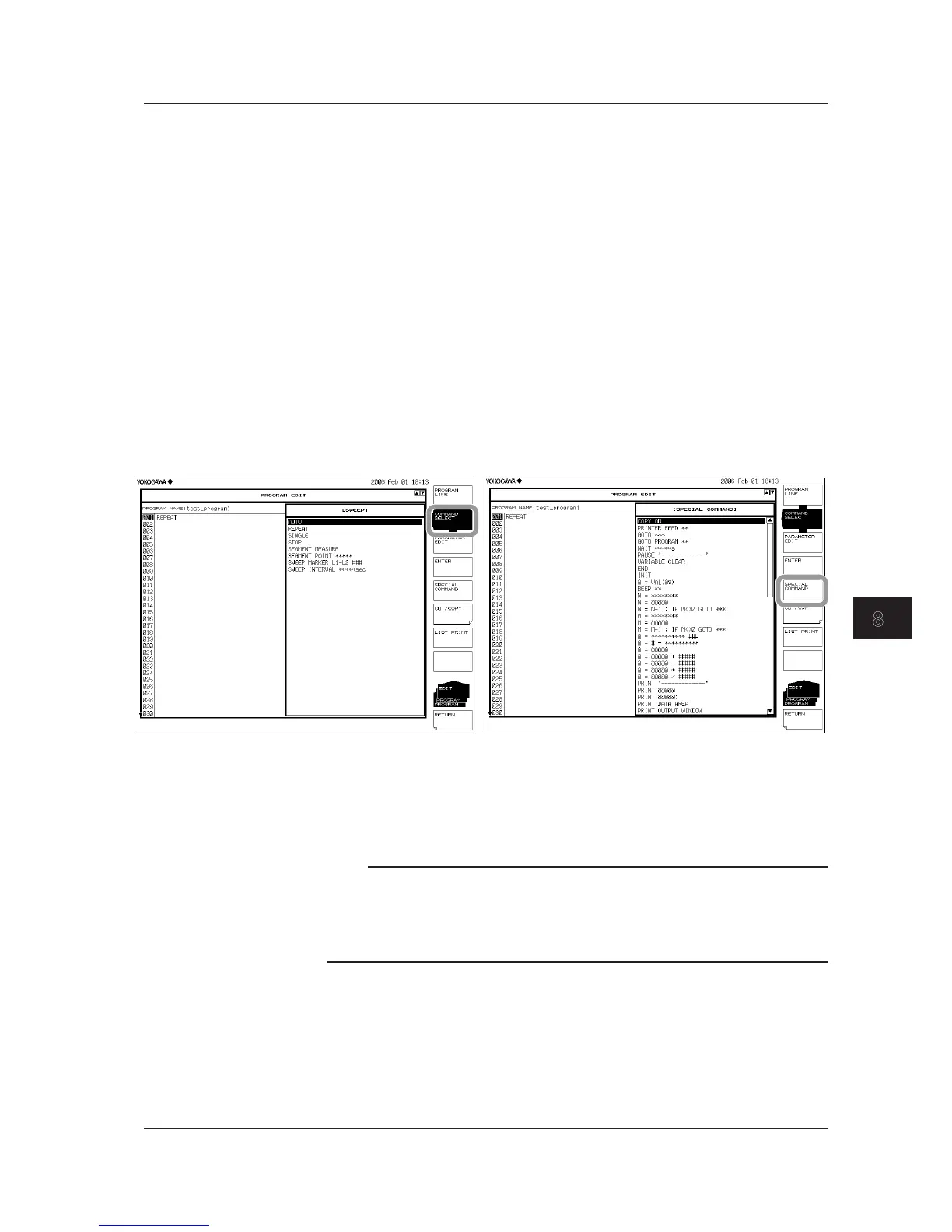

1.
To select function commands or special commands, press the COMMAND
SELECT or SPECIAL COMMAND soft keys, respectively. The function command
or special command selection screen is displayed.
2.
Select a command using the rotary knob or the arrow keys, and press the
ENTER soft key. The selected command is entered. When entering commands
that require parameter settings, the parameter setting screen is displayed.
3.
Enter the parameter and press the ENTER soft key. The parameter is set.
Note
• The ***** portion of commands are numbers, the ### portion is the selected parameter, and
- - - - - - is text input.
• Function commands can also be set using the mouse. Right-click the mouse to display a
shortcut list of panel keys. Left-clicking enters the function command corresponding to the
selected panel key.
8.1 Editing a Program
