ShortcutIconOperation(forregisteredandfreemessages)
You can touch the screen to display shortcut icons; you do not have to display the menu
screen first.
You can tap these shortcut icons to operate the GX/GP.

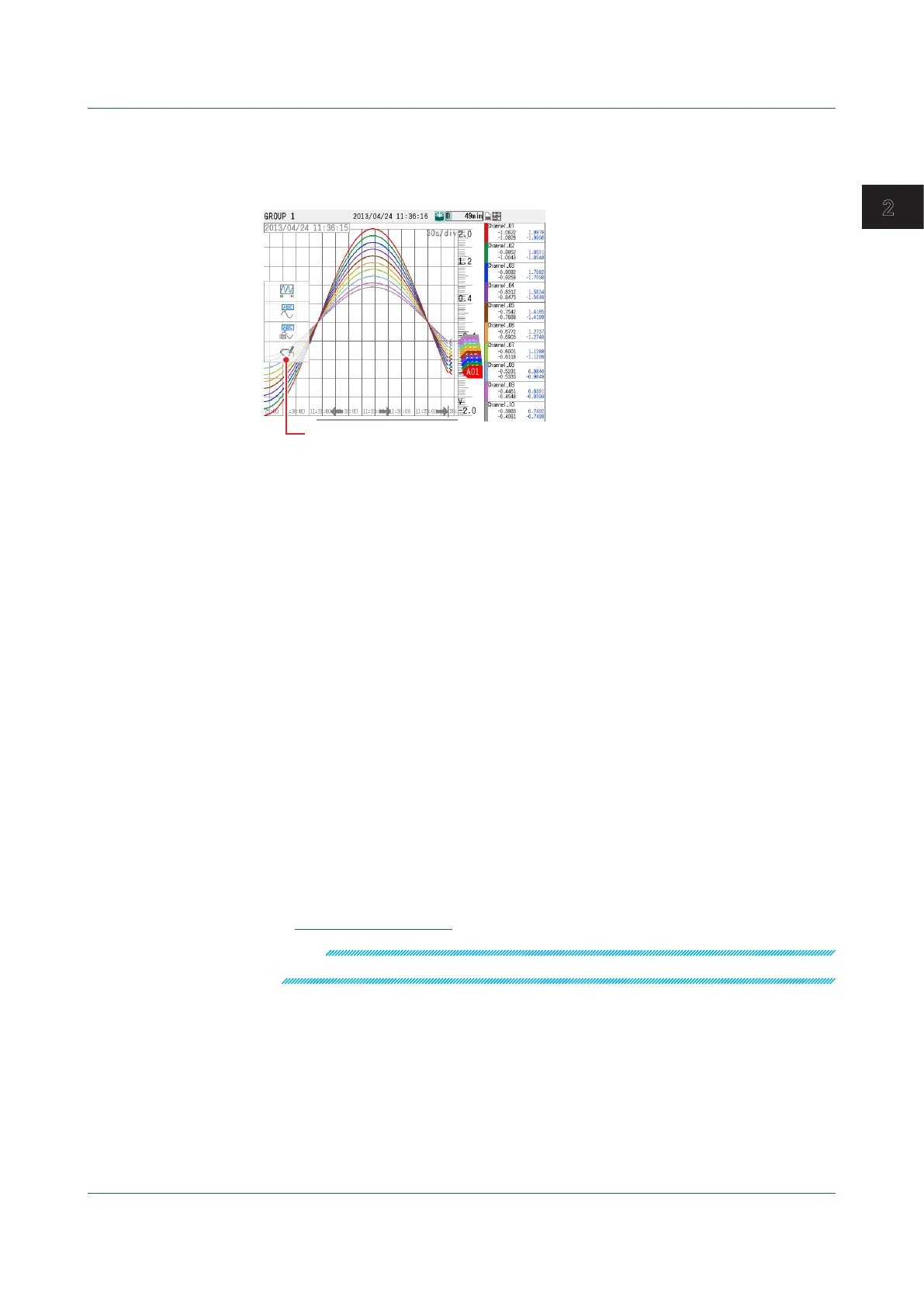

Shortcut icon
Writing a Free Message
You can create a message on the spot and write it.
You can set up to 10 free messages.
1 Press MENU.
The menu screen appears.
2 Tap the Universal tab.
The menu appears.
3 Tap Free message.
A message list appears.
If Trend rate switching (Second interval) is set to On and you specify the message input position
by moving the scale image or by scrolling the waveform, a screen for switching to the historical
trend screen will appear. Tap a data type to switch to the historical trend.
In trend display, Free message also appears on the Context tab.
4 Tap the message field to write in.
A keyboard will appear.
5 Set the message to write, and tap OK.
The message that you entered is written.
If the historical trend is displayed, press MENU, select the Context tab, and tap Exit to return to
the original screen.
Operation complete
Note
You cannot write messages when recording is stopped.
