Displaying the Trend Waveform of the Selected Channel on Top
You can display the waveform and the scale image marker of the selected channel on top.
The waveform display area shows the grid for the selected channel.
If you change the historical trend display to another display, the top channel display
setting will be cleared. All other channels are displayed in order according to their order of
assignment to the display group.
Displaying the Waveform of the Selected Channel on Top
1 Tap a channel on the digital display.
The tapped area is selected, and the trend waveform of the corresponding channel is displayed
on top.
Release top channel display
2 Tap the Close icon to close the channel information screen.
Operation complete

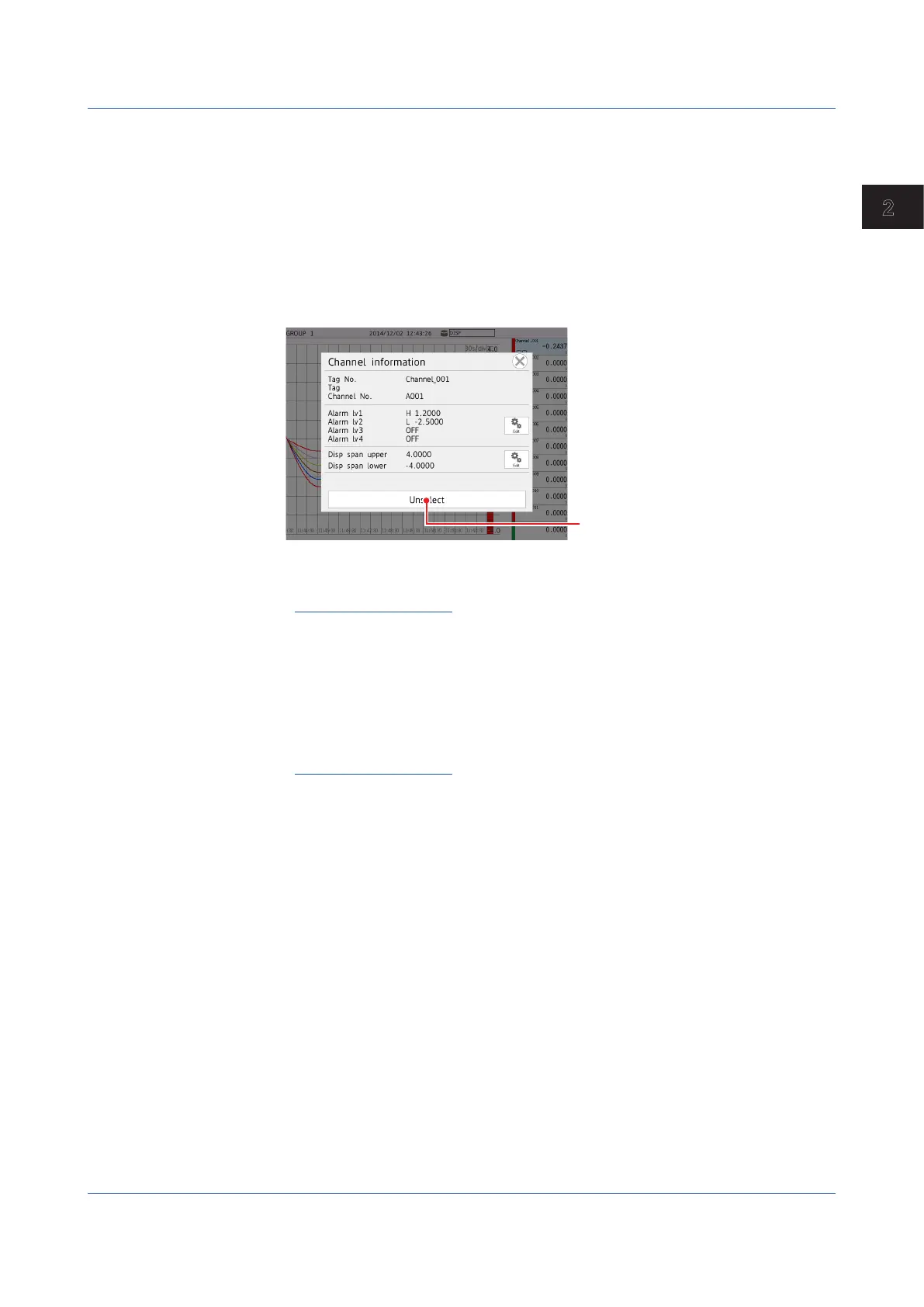

Clearing the Top Channel Display
1 Tap the selected digital display area.
The channel information screen appears.
2 Tap Unselect.
The top channel display is cleared.
Operation complete
