Reading Measured Values

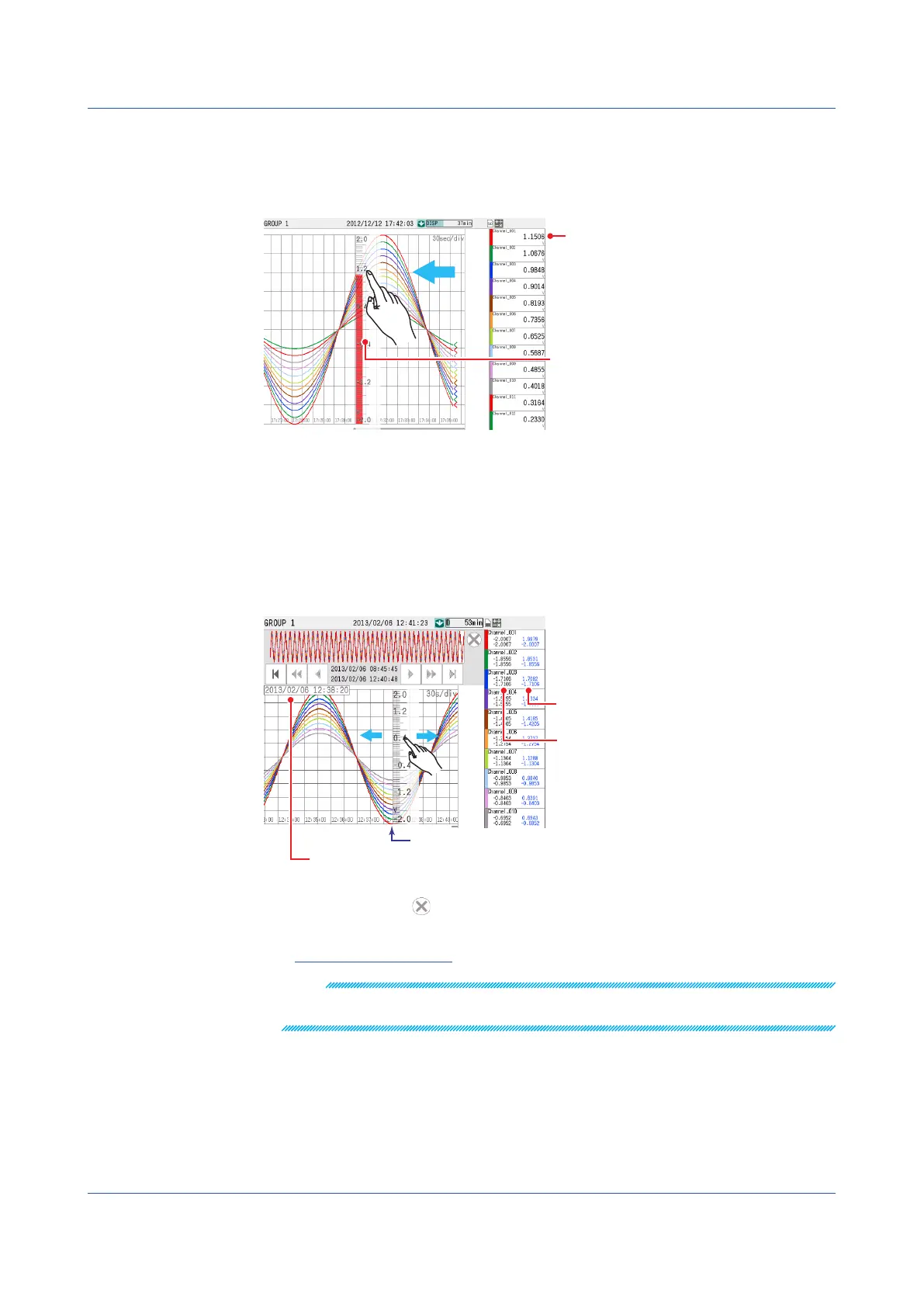

Drag the scale image.
The measured value of the scale’s left edge position is shown in the digital display section.
For display data, the maximum measured value is displayed. For event data, the measured
value is displayed.
Scale image
Measured value display
Display data: Maximum value
Event data: Measured data
DisplayingMeasuredDatawithMaximumvaluesorMin/MaxValues
1 Press MENU.
The menu screen appears.
2 Tap the Context tab and then Valu Max Max/Min.
The digital display switches to Maximum or Min/Max display.
Each time you tap Min/Max (Value Max Min/Max), the display switches between Maximum and
Min/Max.
Maximum and minimum values among
the entire waveform data currently displayed
Time at the left edge of the scale image
Maximum and minimum values of the data
at the left edge of the scale image
Data position
3 Tap the Exiticon ( ).
Close the menu screen.
Operation complete
Note
If the scale image had been moved, after you switch the display, the image will return to its original
position.
