TLOG
Setup Item Selectable Range or Options Default Value
Timer type Timer, Match Time Timer Timer
Timer No. 1, 2, 3, 4, 5*, 6*, 7*, 8*, 9*, 10*, 11*, 12* 1
Sum scale Off, sec, min, hour Off
Reset Off, On Off
* Release number 3 and later
Timer type
Set the timer type.
Timer No.
Set the number of the timer that you want to use.
Sum scale
Set the sum scale depending on the unit of measured values.
Set the sum scale when using sum computation (TLOG.SUM).
Example: If the unit of the measured value is “m
3
/min,” select min.
If you select Off, the measured data is summed as-is once per scan interval.
Reset
To reset the TLOG computed value at each interval, select On.

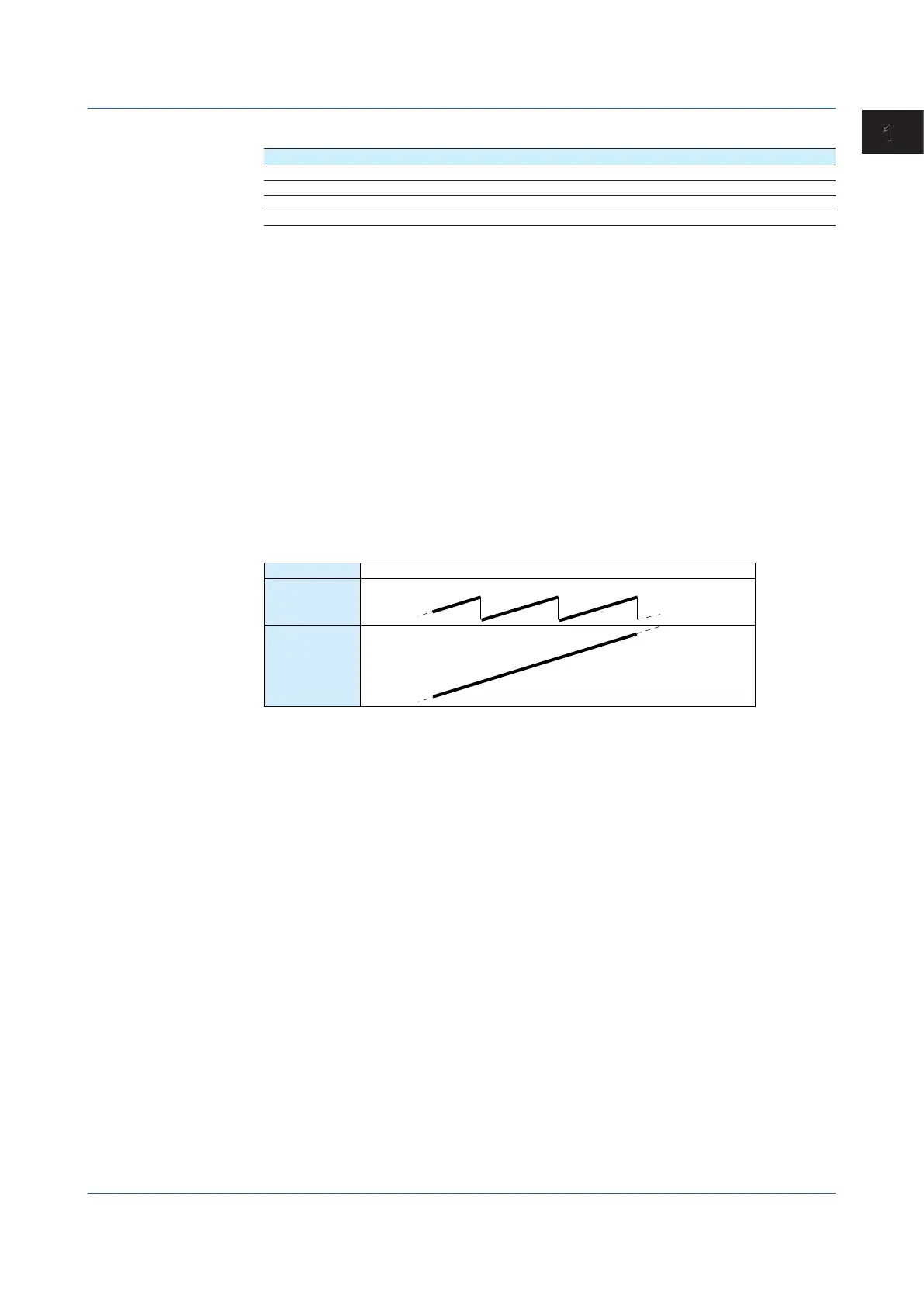

The figure below illustrates the reset operation of sum computation (TLOG.SUM).
Example: Result of the TLOG.SUM computation
When reset is On, the sum value is computed over each interval. When set to Off, the sum
value from computation start is computed.
1 2 3
ResetReset Reset
Reset: On
Timer timeout
Reset: Off
