YOKOGAWA UT550 User Manual

1-6
<Toc> < 1. Installation >
IM 05D01C02-41E 3rd Edition: May 31, 2006-00
● Cable Specifications and Recommended Cables
Purpose Name and Manufacturer
Power supply, grounding, relay contact outputs
600 V PVC insulated wires, JIS C 3307, 0.9 to 2.0 mm
2
Thermocouple Shielded compensating lead wires, JIS C 1610, X- - -
(See Yokogawa Electric’s GS 6B1U1-E.)
RTD Shielded wires (three conductors), UL2482 (Hitachi Cable)
Other signals Shielded wires

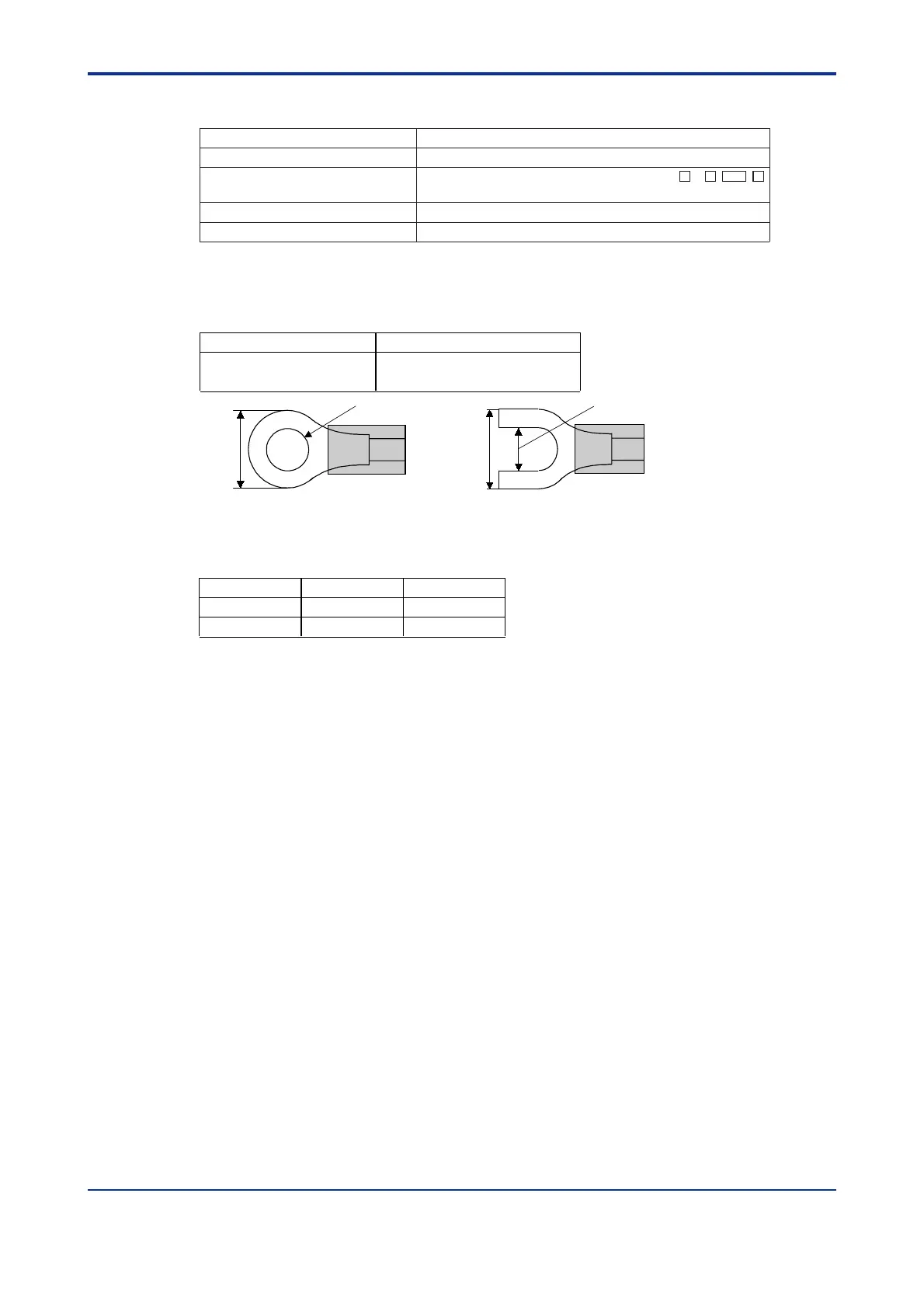

● Recommended Terminal Lugs
3.7mm
7 mm or less
3.7mm
7 mm or less
or
0.3 to 1.65 mm
2
0.8 N·m or less
Applicable wire size Tightening torque
● Terminal Covers
Target Model Part Number Sales Unit
For UT550
T9115YD 1
For UT520 T9115YE 1
