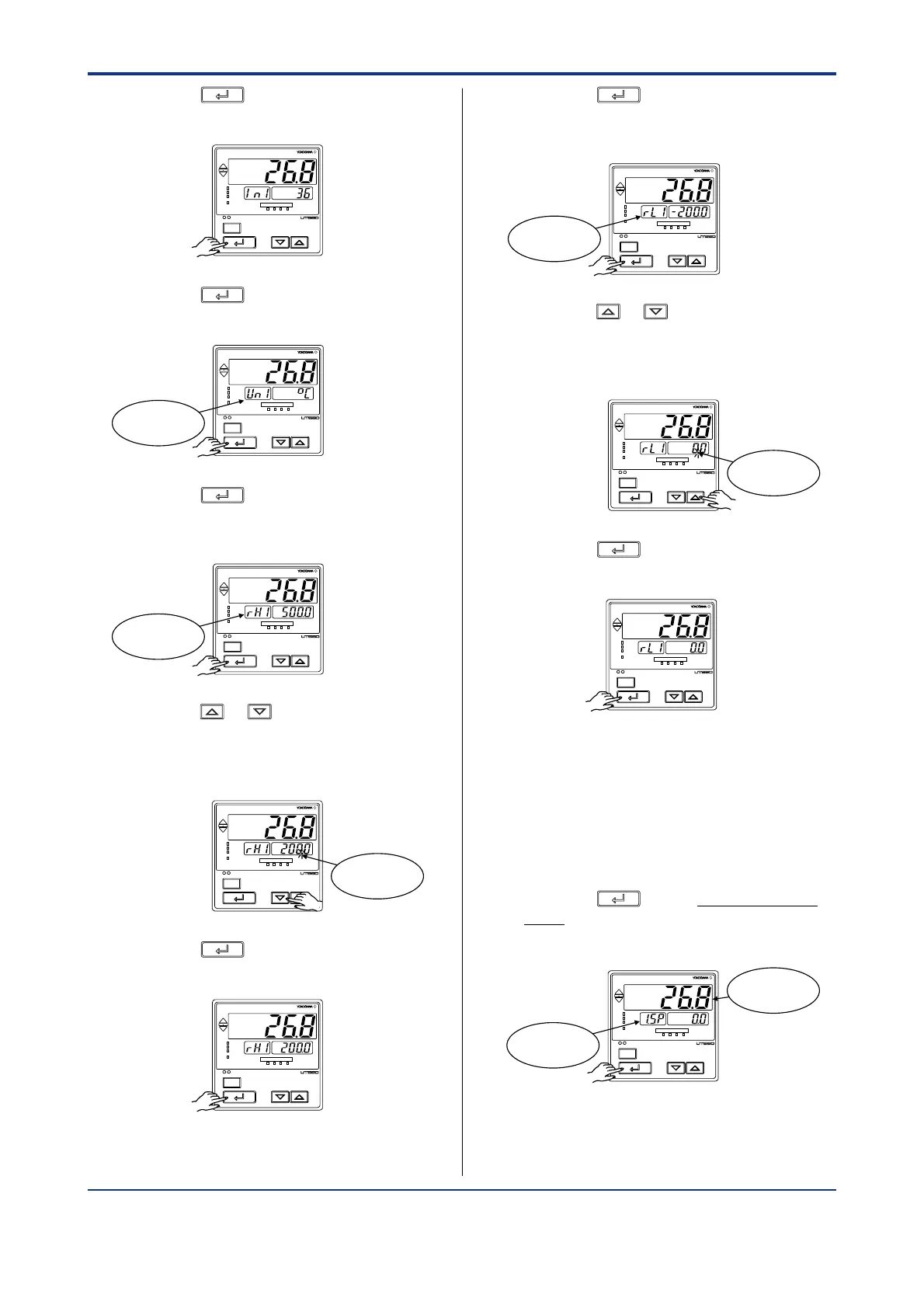

10. Press the
SET/ENT
key once to register the
setpoint.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
11. Press the
SET/ENT
key once to display the
parameter “UN1”.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays
parameter “UN1”.
12. Press the
SET/ENT
key once to display the
parameter “RH1” (maximum value of PV
input range).
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays
parameter “RH1”.
13. Press the or key to display the
required setpoint. The figure below shows
an example of setting the maximum value
of the PV input range to 200.0°C.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Blinks during
change.
14. Press the
SET/ENT
key once to register the
setpoint.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
15. Press the
SET/ENT
key once to display the
parameter “RL1” (minimum value of PV
input range).
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays
parameter “RL1”.
16. Press the or key to display the
required setpoint. The figure below shows
an example of setting the minimum value
of the PV input range to 0.0°C.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Blinks during
change.
17. Press the
SET/ENT
key once to register the
setpoint.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
If the type of Input is voltage, also config-
ure the PV Input Decimal Point Position
(DP1), Maximum Value of PV Input Scale
(SH1), and Minimum Value of PV Input
Scale (SL1) parameters that follow this
step.
18. Press the
SET/ENT
key for more than 3 sec-
onds. This returns you to the display
shown at power-on (figure below).
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays
target setpoint-1
“ 1.SP ” .
Displays PV
