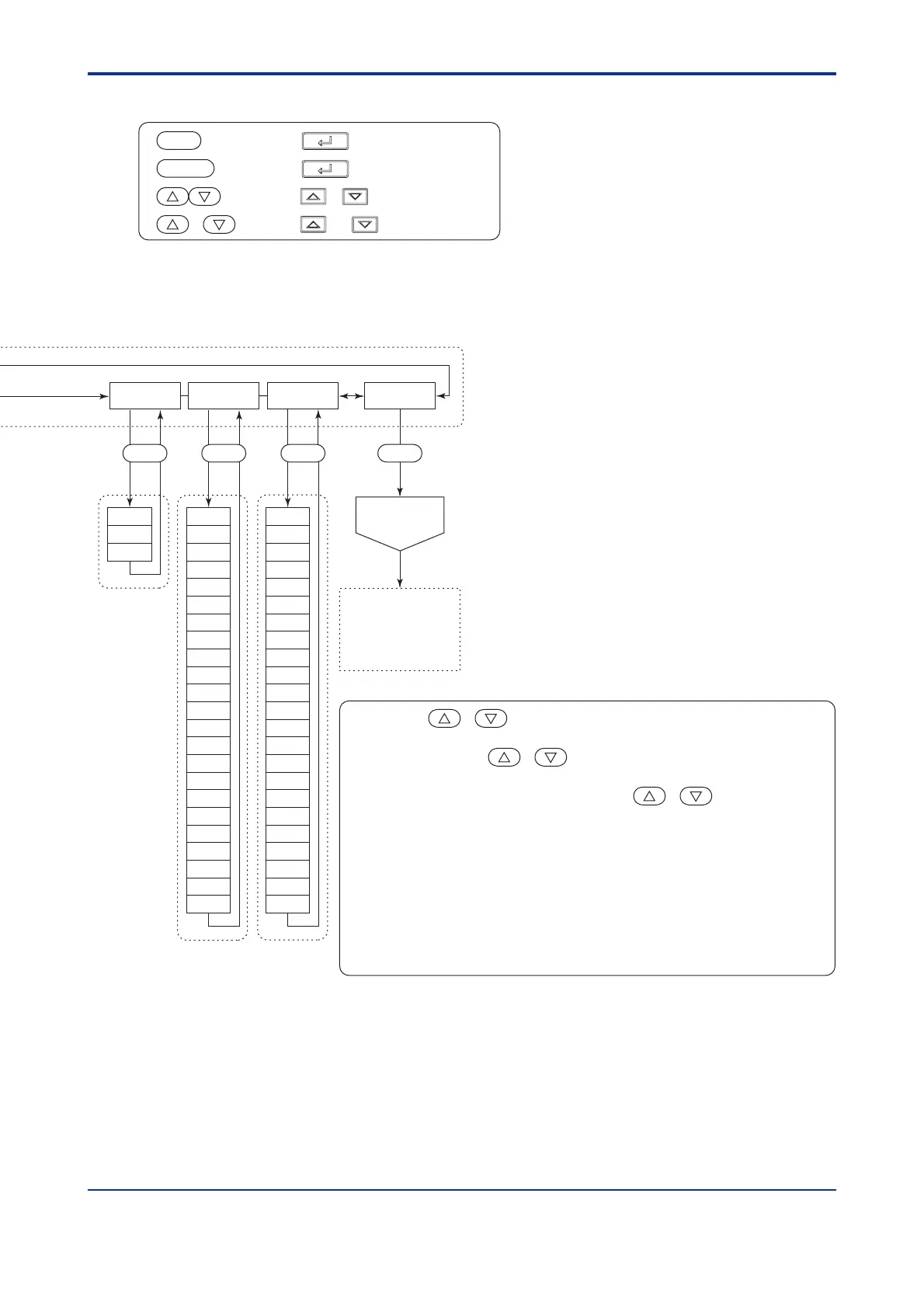

Pressing the + keys once when parameter setting display is
shown retrieves the menu of that parameter setting display.
Example:
Pressing the + keys once when the [PAR] submenu is
displayed, retrieves the [LP1] main menu. Conversely, the [PAR]
submenu reappears by pressing the + keys when the
"FL" parameter display subordinate to the [PAR] submenu is shown.
The number and contents of operating displays differs according to the
UT550 or UT520 model, the UT modes and control output types.
: Press the key once.
: Press the key for 3 seconds.
: Press the or key once.
: Press the and keys simultaneously.
PYS1
1.B2
1.A2
1.B1
1.A1
1.A4
1.B3
1.A3
1.A5
1.B4
1.A6
1.B5
1.B6
1.B7
1.A7
1.A8
1.A9
1.B8
1.B9
1.BA
1.AA
1.AB
1.MD
1.BB
2.B2
2.A2
2.B1
2.A1
2.A4
2.B3
2.A3
2.A5
2.B4
2.A6
2.B5
2.B6
2.B7
2.A7
2.A8
2.A9
2.B8
2.B9
2.BA
2.AA
2.AB
2.MD
2.BB
USR PYS2PYS1 STUP
To setup parameter
setting display main
menu [LOOP1]
(on the next page)
Password
check display
SET SET
OK
SET
U3
U2
U1
SET
SET
SET3S
*5
+
*6
SET/ENT
SET/ENT
Note:
The parameter codes of the UT550/UT520 are different from the
characters actually displayed on the LED indicator. Refer to
"5.2 Lists of Parameters" for the corresponding indicator characters.
Note:
SELECT displays 1 to 5 are shown only when they are registered.
