2-1
IM 01C50C05-01EN
2. Notes on Handling
The YTA70P temperature transmitter is fully factory tested upon shipment.
When the YTA70P is delivered, check the appearance for damage, and also
check that the transmitter parts shown in Figure 2.1 are included with your
shipment.
A CJC Connector
or an RTD Connector
Temperature Transmitter
YTA70P
User’s Manual
F0201.ai
A CJC or an RTD connector is attached to the product as specified in
the order, and the connector not attached to the product is included in
the package.
11
12
13
14

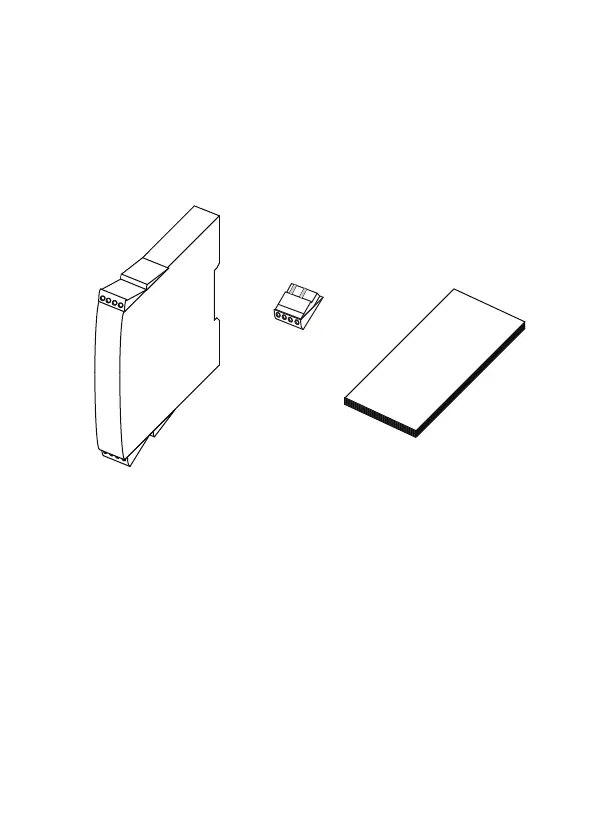

Figure 2.1 Transmitter parts
To Next Page
