6-3
IM 01C50C05-01EN
6.3 Troubleshooting

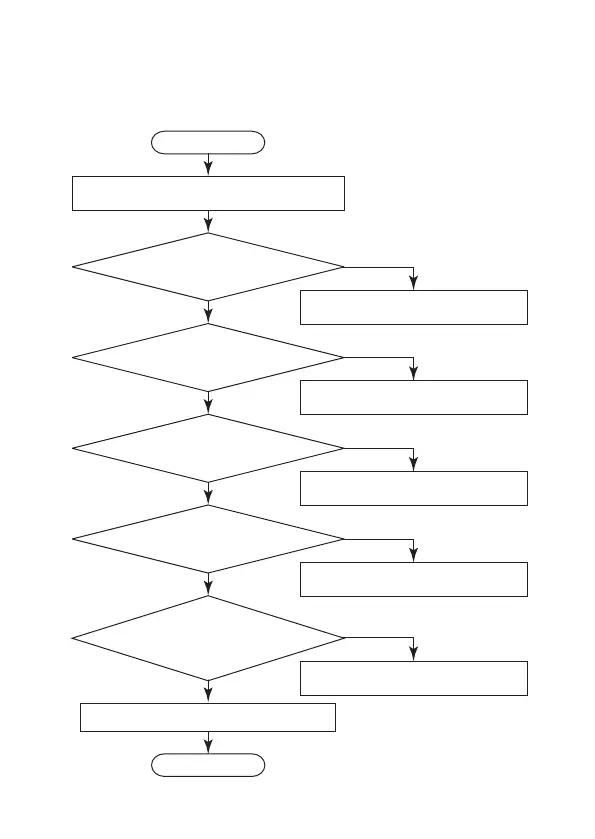

When the measured value is found abnormal, follow the troubleshooting
owchart below.
F0603.ai
YES
NO
YES
YES
YES
YES
NO
NO
NO
NO
NO
Was a faulty
area found with Status?
Is the polarity of
the power supply correct?
Are the power supply voltage
and load resistance correct?
Is the sensor correctly connected?
Refer to our service personnel for details.
Refer to the error message list and
check for recovery measures.
Check the polarity between the power
supply and terminal box and correct it.
Set the specified voltage and load
resistance.
Check the sensor connection and
correct it.
Check for disconnection or faulty wiring
and take corrective measures.
End
Start
Connect FieldMate and check
Diag/Service → Status.
Is there continuity
through the transmitter loop wiring?
Do the loop numbers match?
To Next Page
