4-2
IM 01C50C05-01EN
①
②
F0402.ai

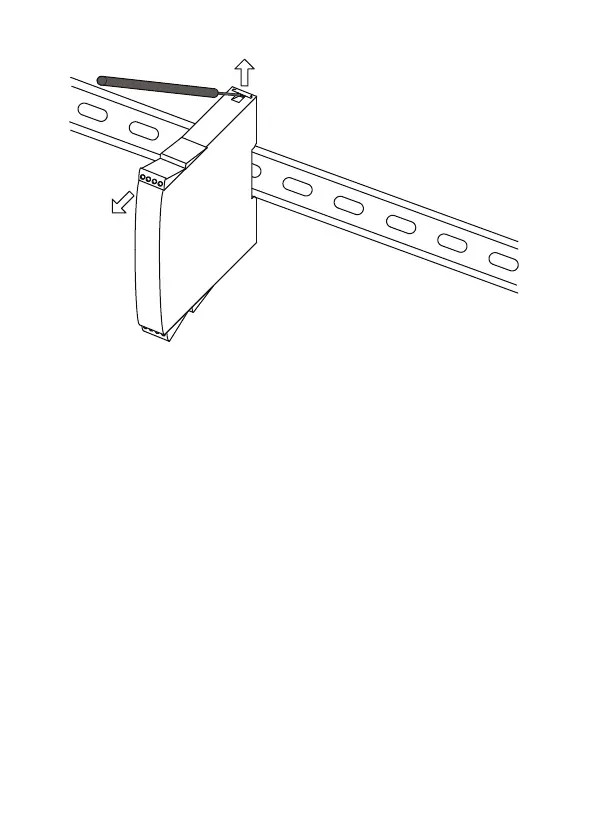

First, remember to turn off power supply and remove output signal cable.
Detach the device from the DIN rail by lifting the lock.
11
12
13
14
Figure4.2 DetachtheTransmitter
