Control Drawing IECEx Ex ic
Yokogawa Electric Corporation
Model
YTAxxx
Title
Control Drawing
No.
IIE029-A63
Page
03
Revision
1
Date
2017-08-18

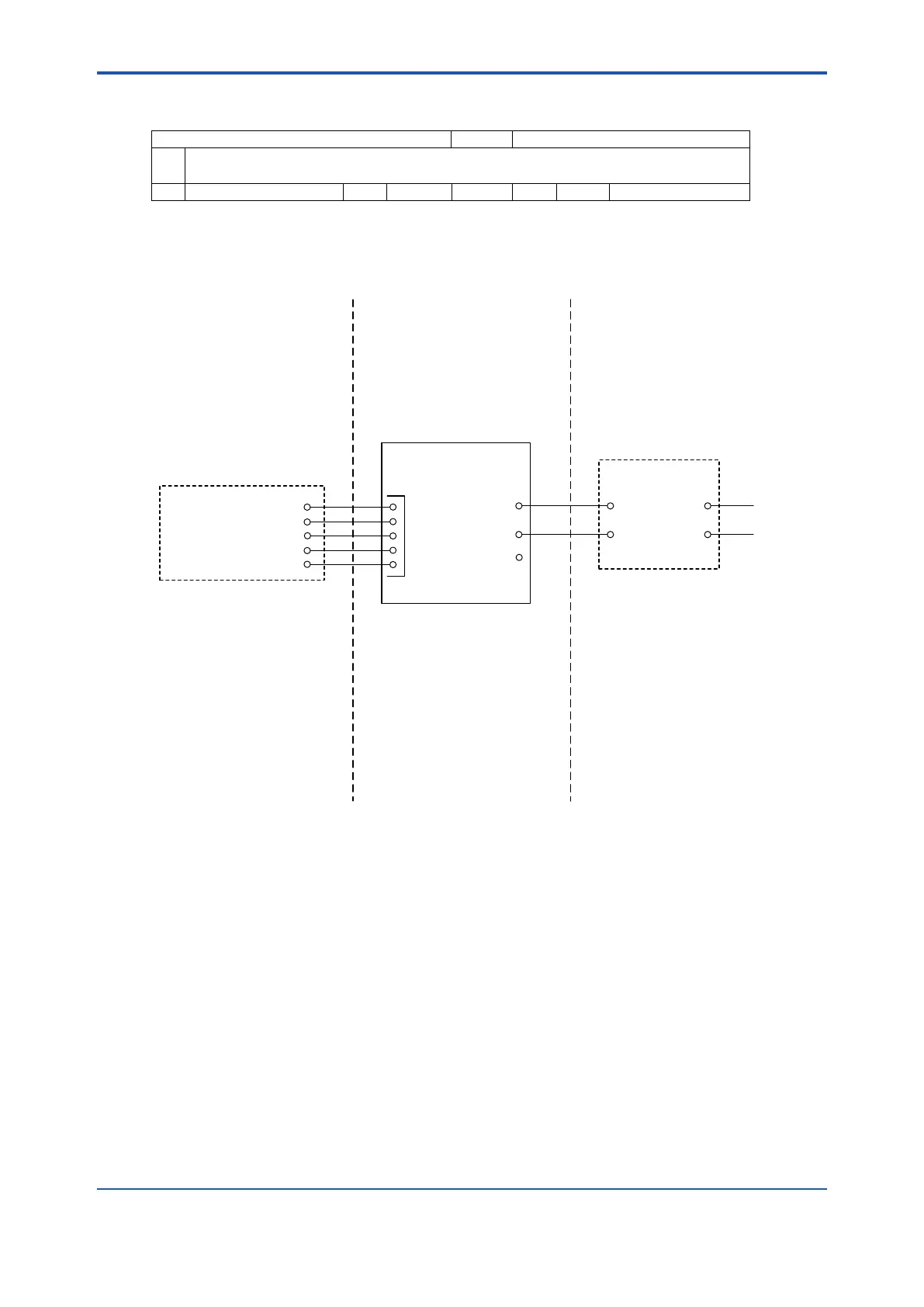

Control Drawing (IECEx)
Intrinsically Safe Installation for YTAxxx – J or – D (Ex ic)
Hazardous Area Non-Hazardous Area
Sensor Input:
Uo = 6.0 V
Io = 90 mA
Po = 135 mW
Co = 10 μF
Lo = 3.9 mH
Model YTAxxx – J or – D
Supply/Output:
Ui = 30 V
Ci = 22 nF
Li = 0 mH
+
Temperature Transmitter
Associated Apparatus
−
+
−
+
−
C
1
2
3
4
5
Supply/OutputSensor Input
Intrinsically Safe Apparatus
or
Simple Apparatus
Hazardous Area
Linear source
