<8. Detailed Data Setting>
8-13
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
8.5.2 Setting Contact Outputs
To set the contact outputs, follow these steps.
(1) “Converter menu” > “Setting”
(2) Select “Contact setting”.
(3) Select item to setup. See Table 8.12. An example setting is displayed below. In this
example, Contact output1 is expected to setup to output “Open” during maintenance and
warmup.
(4) Select “Contact state during operation” and “Open”.
(5) Select “ Selection of contact output” and check “Maintenance” and “Warmup.” Multiple items
can be set.
(6) Setup other contact outputs in a similar way.

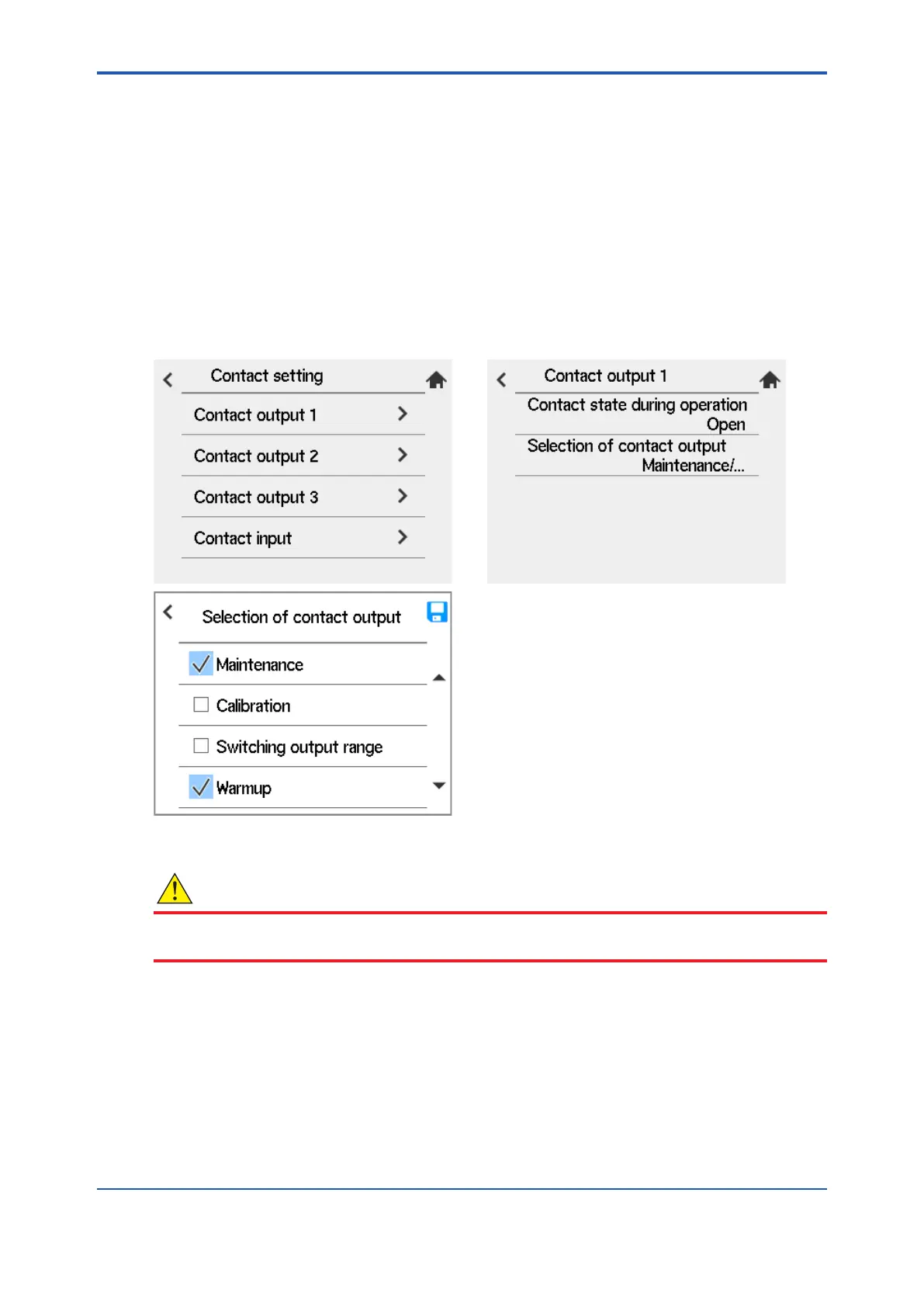

Figure 8.10 Contact output setting
CAUTION
The setting cannot be changed.
