  <2.Specications>

2-33

IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00

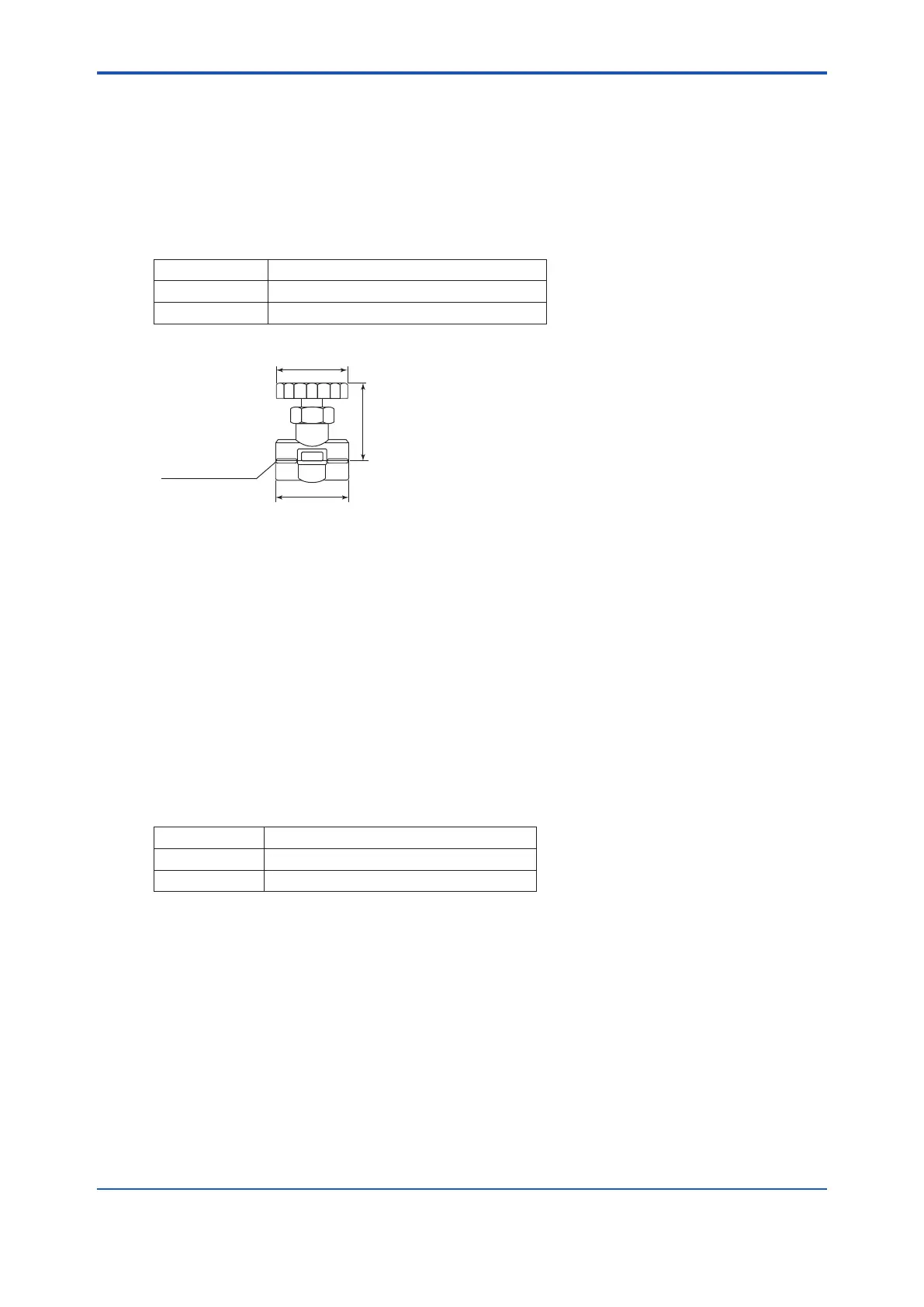

2.7.4 Stop Valve (L9852CB, G7016XH)

This valve mounted on the calibration gas line in the system to allow for manual calibration. This



Standard Specications

Connection: Rc 1/4 or 1/4 NPT(F)

Material: SUS 316 (JIS)

Weight: Approx. 150 g

Part No. Description

L9852CB Joint: Rc 1/4, Material: SUS316 (JIS)

G7016XH Joint: 1/4 NPT, Material: SUS316 (JIS)

F15.ai

(Full open length)

Rc1/4 or 1/4NPT

Ø48

Unit: mm

2.7.5 Check Valve (K9292DN, K9292DS)

This valve is mounted on the calibration gas line (directly connected to the detector).



This valve prevents the sample gas from entering the calibration gas line. Although it functions as



calibration.

Screw a check valve, instead of a stop valve into the calibration gas inlet of the detector.

l Standard Specications

Connection: Rc1/4 or 1/4NPT(F)

Material: SUS304 (JIS)

Pressure: 70 kPa G or more and 350 kPa G or less

Weight: Approx. 90 g

Part No. Description

K9292DN Joint: Rc 1/4, Material: SUS304 (JIS)

K9292DS Joint: 1/4 NPT, Material: SUS304 (JIS)
