<5. Wiring>
5-3
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
5.1.1 Terminals for the External Wiring in the Converter
Open the front door and remove the terminal covering plate to gain access to the converter
external wiring terminals (see Figure 5.1).
CAUTION
with two screws again.
Remove the cover to see terminals.
cable entry holes
front cover

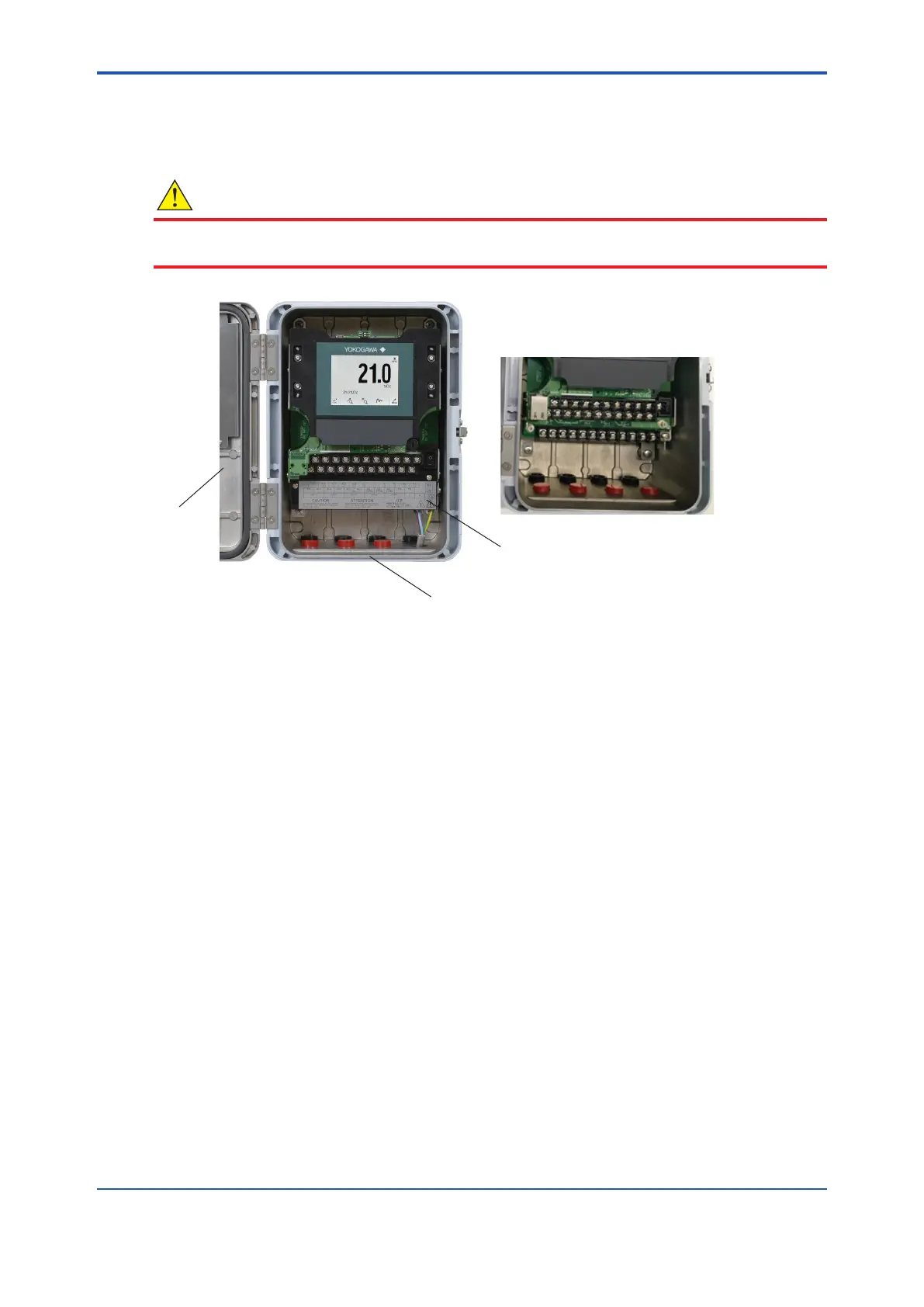

Figure 5.1 Terminals for external wiring in the converter
5.1.2 Wiring
as shown below.
(1) Detector output (connects the converter with the detector.)
(2) Detector heater power (connects the converter with the detector.)
(3) Analog output signal
(4) Power and ground
(5) Contact output
(6) Operation of the solenoid valve of automatic calibration unit
(7) Contact input
(8) Temperature input
To Next Page
