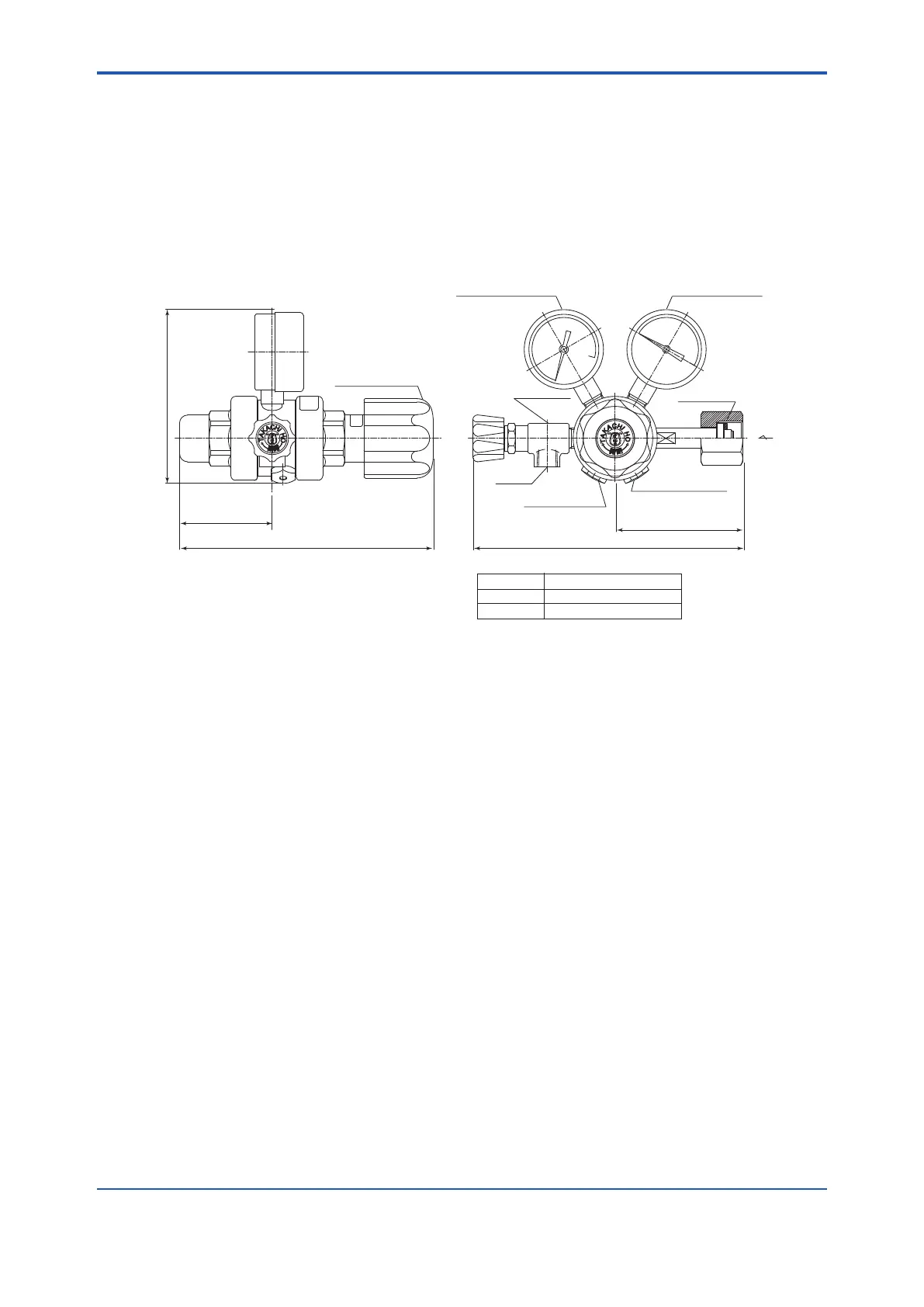

2.7.8 Cylinder Pressure Reducing Valve (G7013XF, G7014XF)
This pressure reducing valve is used with the zero gas cylinders.
l Standard Specications
Primary Pressure: Max. 14.8 MPa G
Secondary Pressure: 0 to 0.4 MPa G
  
   
Material: Brass body
H
I
H
A
C
A
K
T
O
Reducing valve handle
W22 (Righthand screw)
Stop valve
Approx.112
IN
* Outlet
Part No.
G7013XF
G7014XF
* Outlet
Rc1/4
1/4 NPT female screw
Secondary pressure gauge Primary pressure gauge
Secondary safety valve
Primary safety valve
Approx. 82
Approx. 59
Approx. 163 Approx. 174
2.7.9 Case Assembly for Calibration Gas Cylinder
(E7044KF)
This case assembly is used to store the zero gas cylinders.
l Standard Specications
Installation: 2B pipe mounting
Material: SPCC (Cold rolled steel sheet)
Case Paint: Baked epoxy resin, Jade green (Munsell 7.5 BG 4/1.5)
Weight: Approx. 10 kg with gas cylinder

