  <2.Specications>
2-38
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00

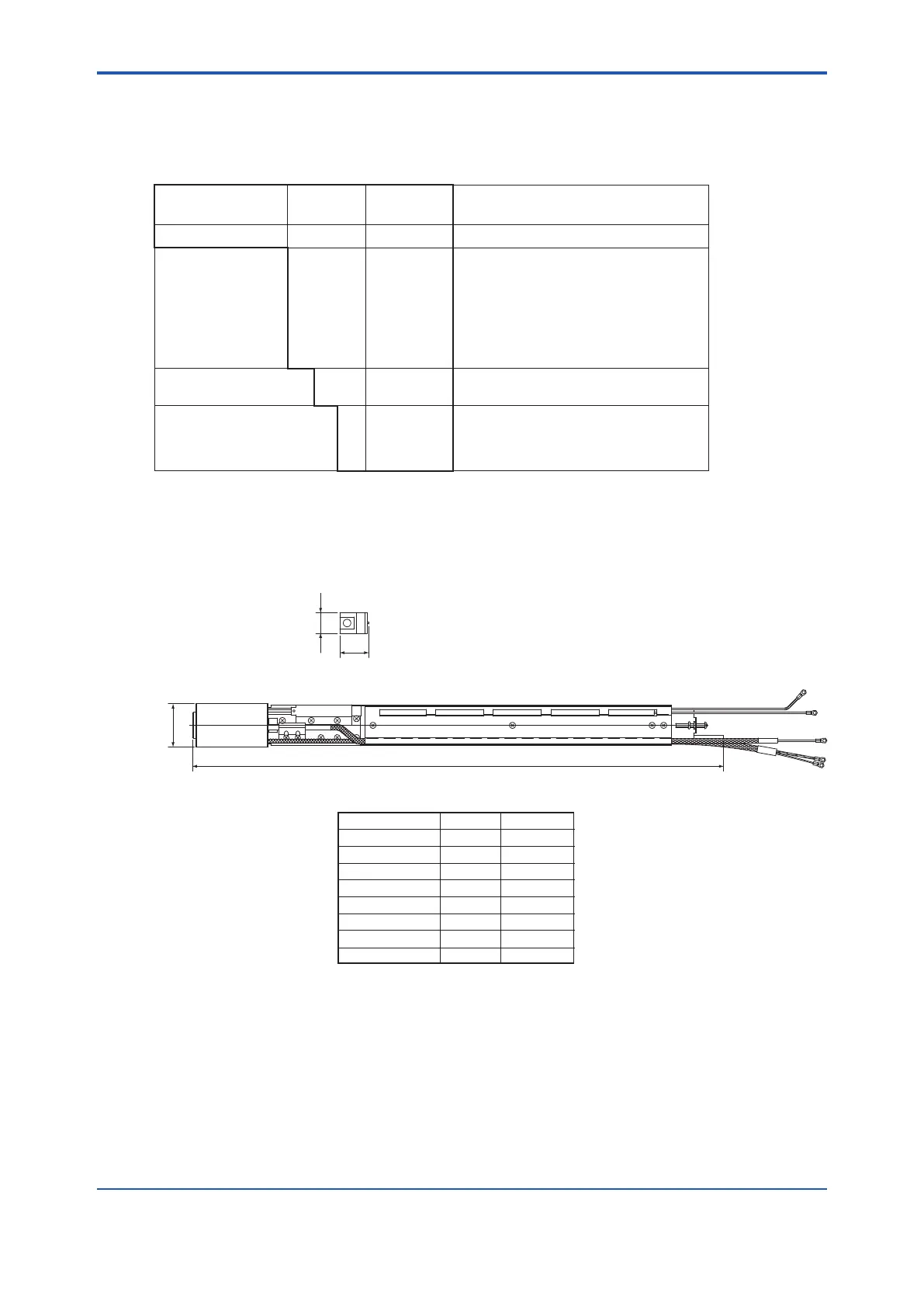

2.7.10 ZR22A Heater Assembly
l Model and Codes
Style: S2
Model Su󰀩x code Option code Description
ZR22A - - - - - - - - - - - - - - - - - - - - Heater Assembly for ZR22G
Length (*1) -015
-040
-070
-100
-150
-200
-250
-300
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
0.15 m
0.4 m
0.7 m
1 m
1.5 m
2 m
2.5 m
3 m
Jig for change -A
-N
- - - - - - - - - - -
- - - - - - - - - - -
with Jig (*2)
None
Reference gas (*3) -A
-B
-C
- - - - - - - - - - -
- - - - - - - - - - -
- - - - - - - - - - -
Natural convention,
External connection (Instrument air)
Pressure compensated (for ZR22G S2)
Pressure compensated (for ZR22G S1)
󰀩
*2 Jig part no. is K9470BX to order as a parts after purchase.
*3 Select appropriately among “-A”, “-B”, “-C” according to the reference gas supply method and style.
(Note) The heater is made of ceramic, do not drop or subject it to pressure stress.
l External Dimensions
K9470BX
L
Weight (kg)
ZR22A-015
ZR22A-040
ZR22A-070
ZR22A-100
ZR22A-150
ZR22A-200
ZR22A-250
ZR22A-300
302
552
852
1152
1652
2152
2652
3152
Approx. 0.5
Approx. 0.8
Approx. 1.2
Approx. 1.6
Approx. 2.2
Approx. 2.8
Approx. 3.4
Approx. 4.0
Jig for change
L±12
(K9470BX)
Φ 21.7
30
Unit : mm
Φ 45
Model & Codes
F2-16E.ai
