<8. Detailed Data Setting>
8-25
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
(4) When you select “Pressure input selection”, a dialog box appears to select “Preset value”,
“External input”. Select according to your system.
When Preset value is selected
(5) When “Preset value” is selected on “Pressure input selection”, enter a sample gas pressure
on “Input pressure set value”.
When External input is selected
(6) When “External input” is selected on “Pressure input selection”, Enter the values of pressure
of 4 mA point and 20 mA point respectively of a pressure transmitter you use.
(7) When alarm from sample gas pressure is used, select “Pressure upper limit alarm value”,
“Pressure lower limit alarm value.” Enter the alarm pressure value with numeric input.

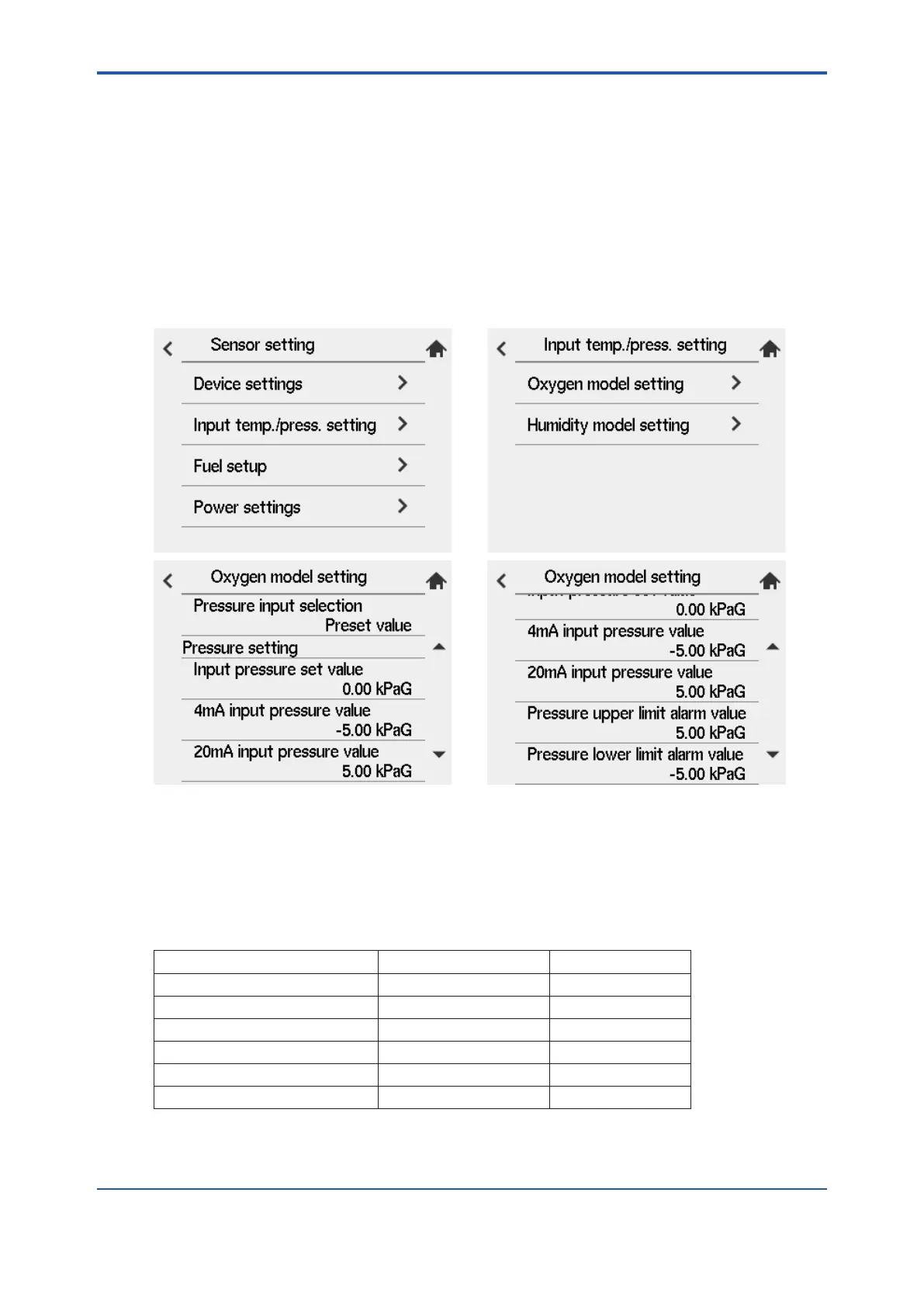

Figure 8.17 Setting Measurement Gas Pressure (Oxygen Analyzer)
l Default Values
When the analyzer is delivered, or if data are initialized, measurement gas temperature and
pressure set ranges and their default settings are as shown in Table 8.17.
Table 8.17 Measurement Gas Pressure Set Ranges and Default Settings
Set Item Set range Default setting
Pressure input selection - Preset value
Input pressure set value -500 to 500 kPaG 0.00 kPaG
4 mA input pressure value -500 to 500 kPaG -5.00 kPaG
20 mA input pressure value -500 to 500 kPaG 5.00 kPaG
Pressure upper limit alarm value -500 to 500 kPaG 5.00 kPaG
Pressure lower limit alarm value -500 to 500 kPaG -5.00 kPaG
