<5. Wiring>
5-14
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
l Ethernet cable
Use Ethernet cable when the digital communication code -E (Modbus TCP) is selected. RJ45
connectors are provided in the positions shown in Fig. 5.18.
Insert a Category 5 or higher STP cable (shielded cable) into RJ45 connector. Both straight and
cross connection is available for cable connection.

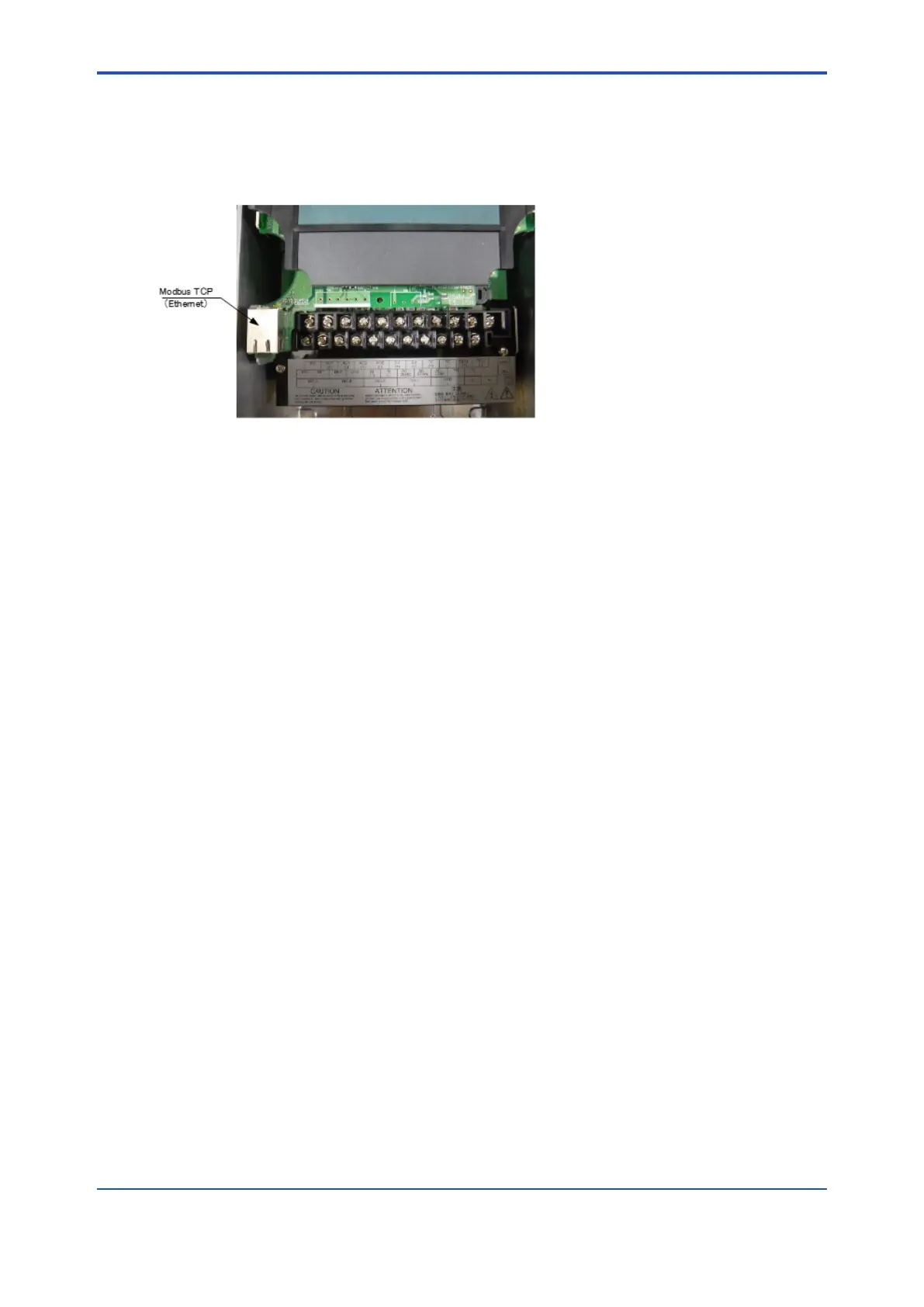

Figure 5.18 Ethernet connector position
