SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
FORM 160.78-O2
ISSUE DATE: 5/22/2017
2
OVERVIEW
This screen allows the Service technician to select up to
10 parameters for display on the Custom View Screen.
The following elds require login access
level of SERVICE. Service technicians re-
fer to YORK YMC
2
Service Manual (Form
160.78-M2) for operation instructions
and explanations of all programmable
setpoints, zone parameters and displayed
values.
DISPLAY ONLY
Slot Numbers
Lists the available parameters that can be displayed.
The desired parameters for display are selected from
this list.
PROGRAMMABLE
Page Up
Scroll up through list of available parameters.
Page Down
Scroll down through list of available parameters.
Select
First use the Page Up and Page Down keys to scroll
through the Slot Numbers list and note the number of
the parameter(s) to be displayed. Pressing the Select
key places a green colored selection box around Cus-
tom Slot 1. If it is desired to change an already entered
parameter, use the 5 and 6 keys to place the selection
box around the slot number to be changed. With the
selection box around the slot number to be changed or
entered, press the ENTER () key. A dialog box is dis-
played permitting data entry. Using the numeric key-
pad keys, enter the desired slot number and press the
ENTER () key.
Custom Slot (1-10)
Use the Select key and numeric keypad keys as de-
scribed above and enter the slot number from Slot
Numbers list. Setting the Slot number to zero clears
the display of this slot number.

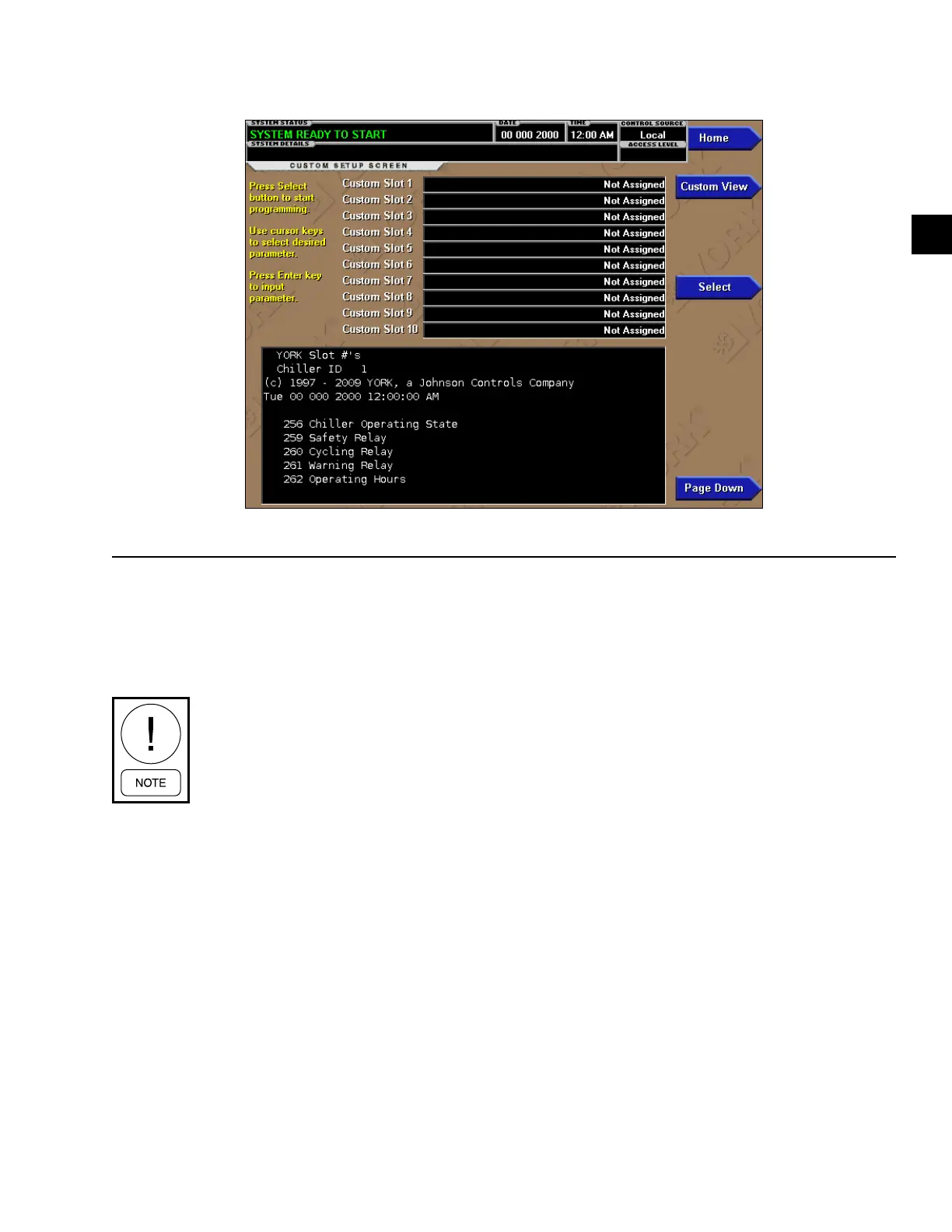

CUSTOM SETUP SCREEN
LD14867
FIGURE 45 - CUSTOM SETUP SCREEN
