SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
FORM 160.78-O2
ISSUE DATE: 5/22/2017
2
OVERVIEW
This screen allows definition of the necessary commu-
nications parameters for the printer. Refer to SECTION
4 - PRINTERS on Page 145 of this manual for details
on Printer connections and setup.
DISPLAY ONLY
Time Remaining Until Next Print
Displays the time until the next print log will occur, if
the function is enabled.
PROGRAMMABLE
Log Start Time
Access Level Required: OPERATOR
Set the time at which scheduled print logs will begin.
Output Interval
Access Level Required: OPERATOR
Define the interval at which log printing will occur.
Automatic Printer Logging (Enabled/Disabled)
Access Level Required: OPERATOR
Enable the printer to begin printing status reports be-
ginning at the programmed start time and recurring at
the interval defined above.
Printer Type
Access Level Required: SERVICE
Define the printer type connected to the chiller system.
Print Report
Access Level Required: OPERATOR
Select the report type to print when the Print Report
key is selected. This can vary from Status report (pres-
ent system parameters), Setpoints report (present value
of the system setpoints), Schedule report (present value
of the system schedule times), or a Sales Order Data re-
port (information provided on the Sales Order screen).
A print report is generated upon completion of selec-
tion.

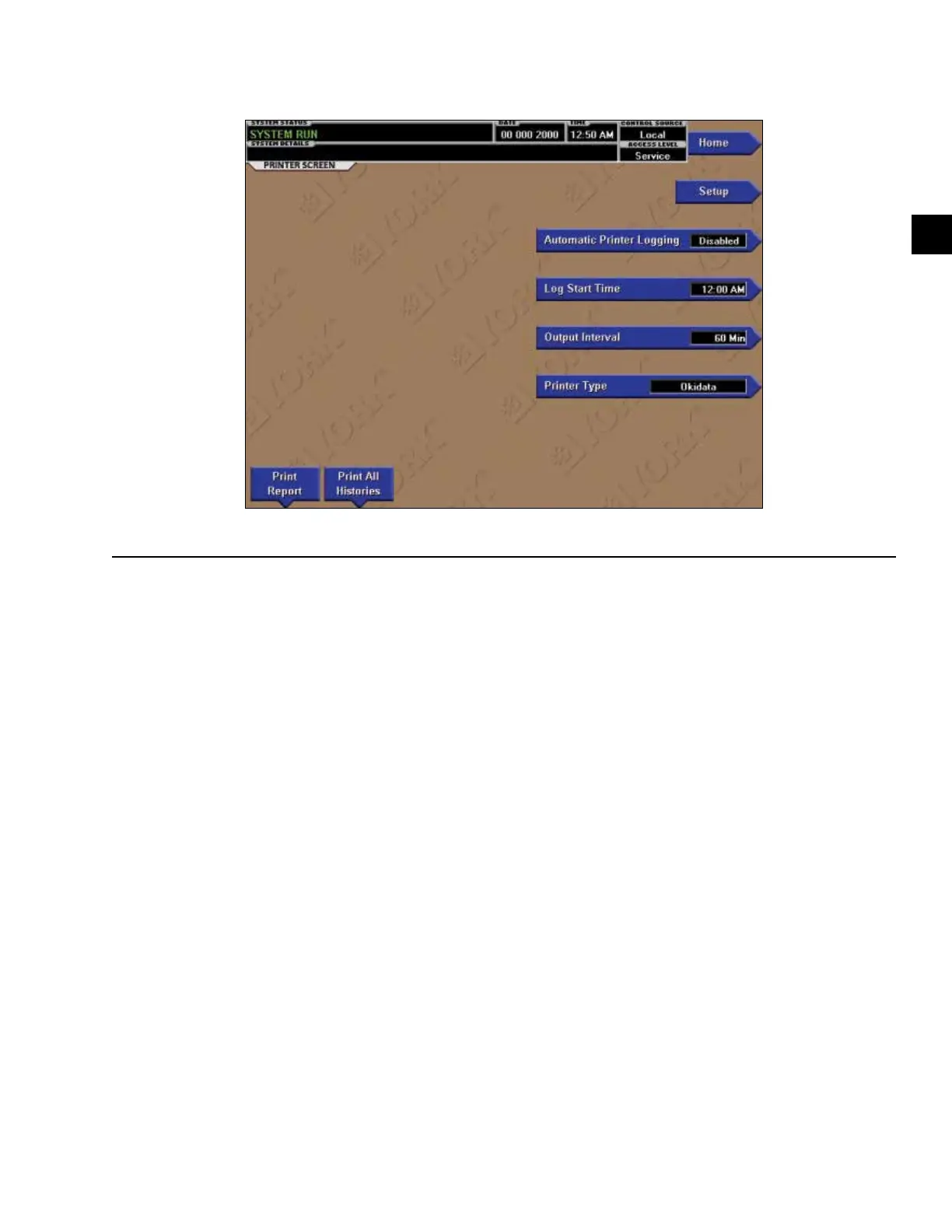

PRINTER SCREEN
LD14863a
FIGURE 37 - PRINTER SCREEN
