JOHNSON CONTROLS

138

FORM 160.78-O2

ISSUE DATE: 5/22/2017

SECTION 3 - VSD OPERATION

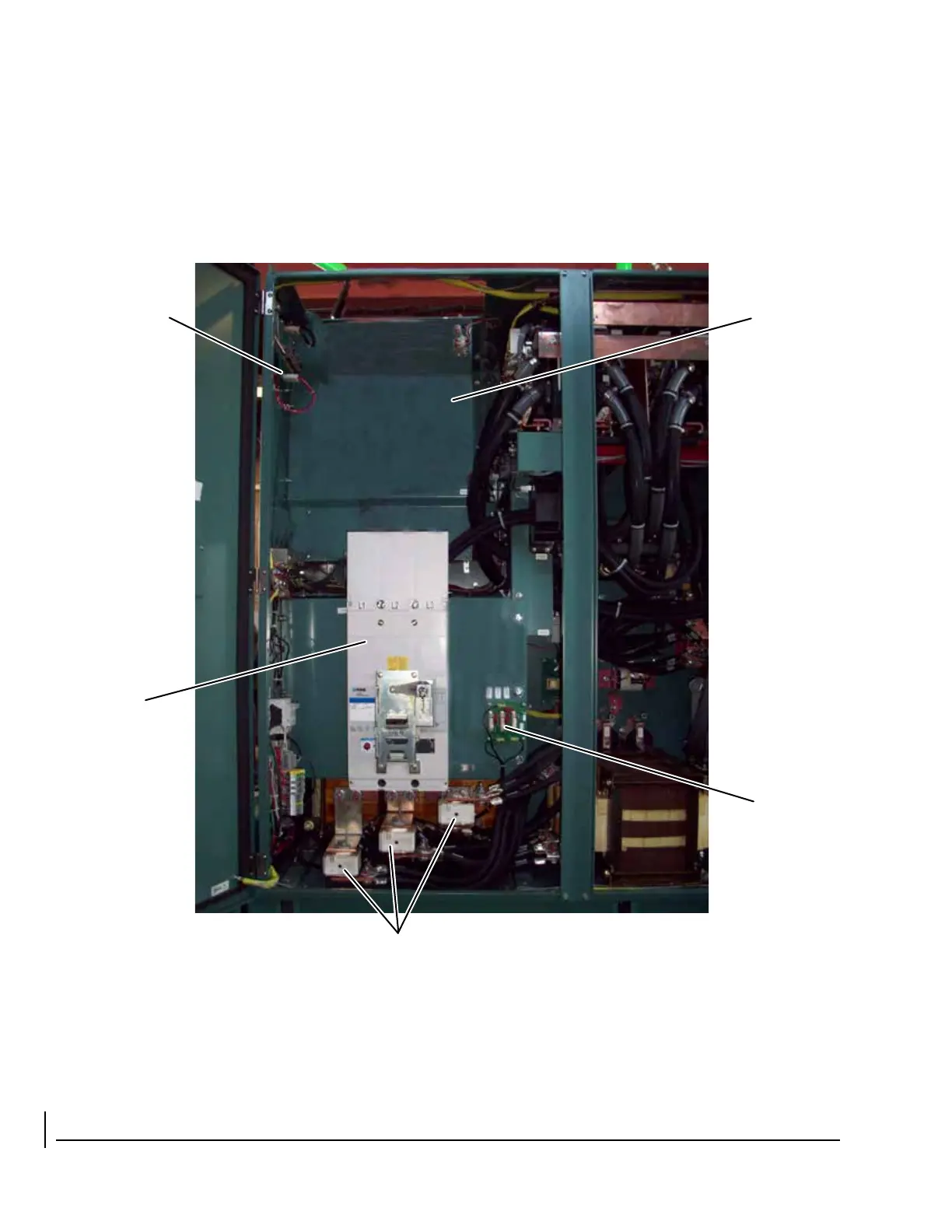

FIGURE 50 - LEFT SIDE OF HYP744 DRIVE CABINET

Input Power

Fuses

Voltage

Transient

Board

Cooling

Fans

Line Voltage

Isolation Board

Circuit

Breaker or

Disconnect

Switch

LD16294
