York OPTIVIEW - Variable Speed Drive Screen

JOHNSON CONTROLS
61
SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
FORM 160.78-O2
ISSUE DATE: 5/22/2017
2
OVERVIEW
This screen displays information pertaining to the Vari-
able Speed Drive (VSD).
DISPLAY ONLY
Motor Run (LED)
Indicates whether the digital output from the controls is
commanding the motor to RUN.

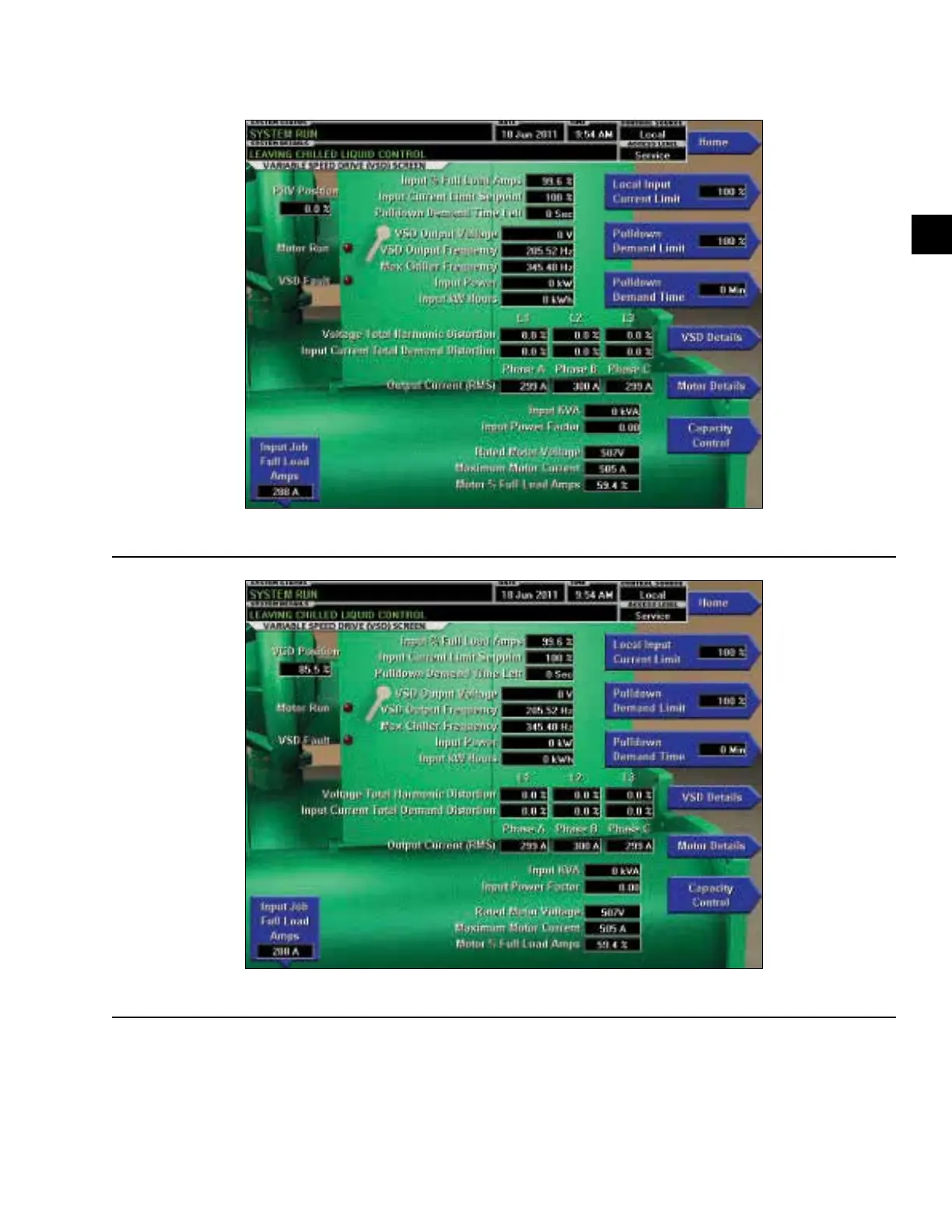

VARIABLE SPEED DRIVE SCREEN
LD14858c
FIGURE 27 - VARIABLE SPEED DRIVE SCREEN - GAS PATH REVISION "A"
LD14858d
FIGURE 28 - VARIABLE SPEED DRIVE SCREEN - GAS PATH REVISION "B"
