JOHNSON CONTROLS
45
SECTION 2 - OPTIVIEW CONTROL CENTER INTRODUCTION
FORM 160.78-O2
ISSUE DATE: 5/22/2017
2
OVERVIEW
This screen displays information pertinent to the VGD
operation. Also, the VGD can be manually controlled
from this screen.
The following elds require login access
level of SERVICE. Service technicians re-
fer to YORK YMC
2
Service Manual (Form
160.78-M2) for operation instructions and
explanations of all programmable setpoints,
zone parameters and displayed values.

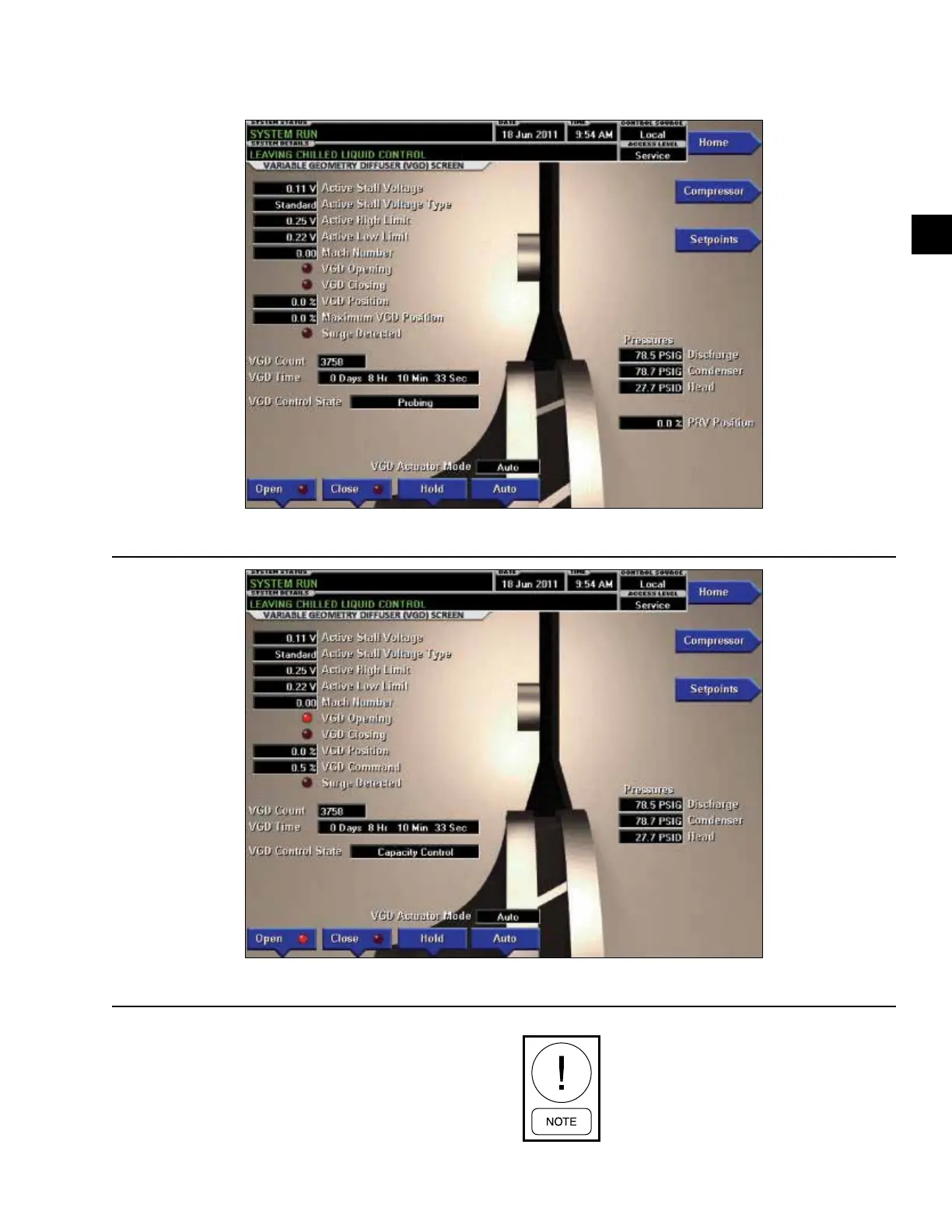

VARIABLE GEOMETRY DIFFUSER SCREEN
LD16113
FIGURE 18 - VARIABLE GEOMETRY DIFFUSER SCREEN - GAS PATH REVISION "A"
LD16114
FIGURE 19 - VARIABLE GEOMETRY DIFFUSER SCREEN - GAS PATH REVISION "B"
